Which turbocharger is the GXR45-73 Compressor Housing made for?

Garrett lists it only for the G-XRace GXR45-73, super core 934173-5004S, whose compressor wheel has a 73.9mm inducer and 102mm exducer. It swaps the standard housing for one with a 0.25 inch map groove. Owners of the smaller GXR45-67 need part 934809-0009 instead.

Why would I choose a map groove compressor housing?

Because a class rule requires it. Garrett publishes this housing for classes with a 0.25 inch map groove rule and gives PanAm as an example, while listing the plain super core for classes without one. On a build with no such rule there is no published reason to change housings.

How much horsepower does the GXR45-73 support?

Garrett rates the GXR45-73 at 750 to 1550 horsepower on engines from 2.0L to 8.0L. That rating is worked out from compressor choke flow and describes potential flywheel horsepower; the engine, fuel system, boost target and tune decide where a real build lands within it.

Does the GXR45-73 Compressor Housing change my turbine housing choice?

No. The GXR45-73 Compressor Housing sits on the intake side only. Garrett pairs the GXR45-73 with eight free-float turbine housings in 1.01, 1.15, 1.28 and 1.44 A/R, in V-band inlet or divided T4 inlet form, and the same G-Series housings already on a G45 build carry over.

What is the speed limit for the GXR45-73?

Garrett sets the maximum allowable speed at 109,000 rpm and states that running above it is at the risk of the owner. A speed sensor installed in the compressor housing lets the tuner watch shaft speed. Garrett sells sensors separately and does not state whether this housing includes a port.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

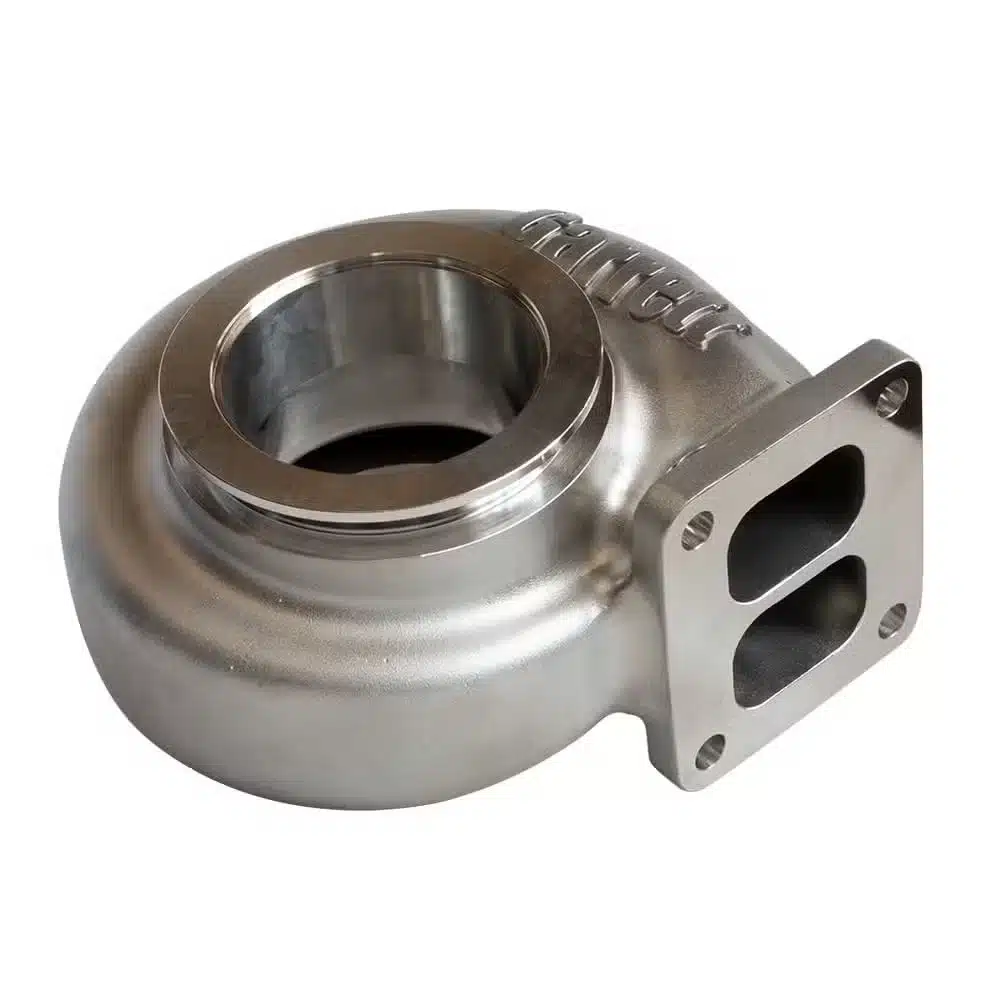

Garrett GXR45-73 Compressor Housing, 0.25 Inch Map Groove

Garrett’s GXR45-73 Compressor Housing turns the larger of the two GXR45 compressor options into a 0.25 inch map groove turbocharger, the configuration Garrett lists for classes with a 0.25 inch map groove rule such as PanAm. It is sized around the 73.9mm inducer wheel in super core 934173-5004S, a core Garrett otherwise lists for classes with no map groove rule. Buy it when a rule book requires the groove and the 73.9mm wheel is the one you run; for an unrestricted build the standard housing on the core is the better use of the money.

What the GXR45-73 Brings

With a 73.9mm inducer, 102mm exducer and 52 trim, the GXR45-73 is the high-flow member of the GXR45 pair. Garrett credits its XBoost compressor with 11 percent more flow than the G45-1350, a lighter aluminum backplate, and lower intake temperature from better efficiency at high flow. It keeps the G-Series twin-scroll T4 and V-band turbine housings, so the exhaust side of a G45 build carries over.

Features

Cut to a 0.25 inch map groove for classes whose rules specify that dimension
Sized for the 73.9mm inducer, 102mm exducer, 52 trim GXR45-73 compressor wheel
Replaces the standard compressor housing on GXR45-73 super core 934173-5004S

Specifications

Garrett part number: 934809-0010
Map groove: 0.25 in
Compressor wheel: GXR45-73, 73.9mm inducer and 102mm exducer
Matching super core: 934173-5004S
Maximum turbocharger speed: 109,000 rpm

Applications

The GXR45-73 Compressor Housing is not vehicle specific. Garrett lists it for this turbocharger:

Garrett G-XRace GXR45-73 super core: 934173-5004S
Engine displacement: 2.0L to 8.0L
Power range: 750 to 1550 horsepower (Garrett rating)

Notes

Housing only; the GXR45-73 super core and a turbine housing are bought separately
Check your class rule book for the required map groove before ordering; this part is the 0.25 inch housing
Garrett states that operating the GXR45-73 above 109,000 rpm is at the owner’s risk and can lead to damage and premature failure
A Garrett speed sensor kit is available separately for shaft speed monitoring

Frequently Asked Questions

Which turbocharger is the GXR45-73 Compressor Housing made for? Garrett lists it only for the G-XRace GXR45-73, super core 934173-5004S, whose compressor wheel has a 73.9mm inducer and 102mm exducer. It swaps the standard housing for one with a 0.25 inch map groove. Owners of the smaller GXR45-67 need part 934809-0009 instead.
Why would I choose a map groove compressor housing? Because a class rule requires it. Garrett publishes this housing for classes with a 0.25 inch map groove rule and gives PanAm as an example, while listing the plain super core for classes without one. On a build with no such rule there is no published reason to change housings.
How much horsepower does the GXR45-73 support? Garrett rates the GXR45-73 at 750 to 1550 horsepower on engines from 2.0L to 8.0L. That rating is worked out from compressor choke flow and describes potential flywheel horsepower; the engine, fuel system, boost target and tune decide where a real build lands within it.
Does the GXR45-73 Compressor Housing change my turbine housing choice? No. The GXR45-73 Compressor Housing sits on the intake side only. Garrett pairs the GXR45-73 with eight free-float turbine housings in 1.01, 1.15, 1.28 and 1.44 A/R, in V-band inlet or divided T4 inlet form, and the same G-Series housings already on a G45 build carry over.
What is the speed limit for the GXR45-73? Garrett sets the maximum allowable speed at 109,000 rpm and states that running above it is at the risk of the owner. A speed sensor installed in the compressor housing lets the tuner watch shaft speed. Garrett sells sensors separately and does not state whether this housing includes a port.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
