Is the GVW-45 45mm External Wastegate the right size for my build?

The GVW-45 45mm External Wastegate suits mid-size turbochargers where a 40mm valve would struggle to hold boost. Garrett does not publish power ratings per valve size, so size it against exhaust flow and boost target. Large engines on big-frame turbochargers are better matched to the GVW-50 or GVW-60.

What spring range does the GVW-45 cover?

From 0.2 bar to 1.6 bar, which is 3 to 23 psi, with the gate shipped at 1 bar. Garrett publishes a spring chart for the combinations, calculated at a 1:1 boost to backpressure ratio, so expect real manifold boost to differ somewhat on the engine.

Where should it be mounted?

On the exhaust manifold or collector ahead of the turbine, on a runner joining the flow at about 45 degrees with a smooth transition. Garrett warns that a 90 degree joint can halve flow capacity and lead to over boosting, and it must never be mounted to the turbine housing.

Does blue anodizing affect function?

No. The blue is the anodized finish on the machined 6061 aluminum actuator cover. Garrett offers the same GVW-45 in red, black and silver, with identical valve, housing, springs and hardware, so colour is chosen for looks alone, for example to match other anodized parts in the engine bay.

Can the GVW-45 be rebuilt?

Yes. Garrett made the valve and bushing replaceable to extend service life and lists spare parts including the valve seat and fittings. Follow the Garrett install guide torque values when reassembling, such as 30 Nm for the bushing and 10 Nm for the valve stem nut.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

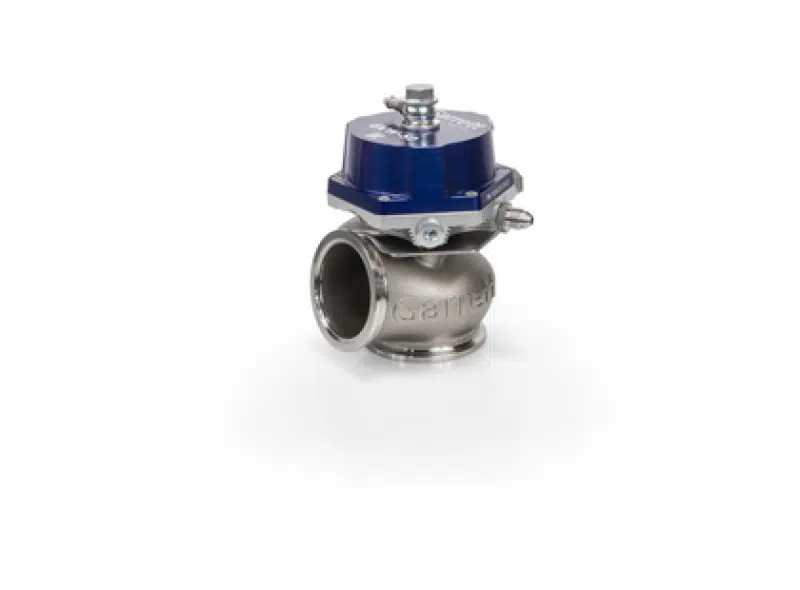

Garrett GVW-45 45mm External Wastegate Kit, Blue

Garrett’s GVW-45 45mm External Wastegate in blue is the second size in the GVW range, a 45mm valve with a blue anodized actuator cover for builds that need more flow than the GVW-40 without the bulk of the larger gates. Garrett designs the valve and bushing as replaceable parts and specifies a Nomex reinforced diaphragm and 17-7 PH stainless springs, so the gate is meant to be serviced over a long life. It will be undersized on a big engine running a large-frame turbocharger at a low boost target, and it is more gate than a small turbocharger strictly needs.

Service Life

Garrett lists the GVW valve, bushing, valve seat, weld flanges and port fittings as spare parts. Because the wear items can be replaced, a gate that has seen years of heat cycles can be refreshed rather than discarded, keeping the same mounting hardware on the manifold.

Features

45mm valve for mid-size turbocharger builds
Replaceable valve and bushing, with spare parts listed by Garrett
Springs set to 1 bar, adjustable from 0.2 to 1.6 bar
Blue anodized cover on the GVW-45 45mm External Wastegate

Specifications

Valve diameter: 45mm
Base pressure as shipped: 1 bar (14.5 psi)
Spring base pressure range: 0.2 to 1.6 bar (3 to 23 psi)
Valve housing: High-temperature stainless steel, rated to 1050C (1922F)
Actuator cover: Machined 6061 aluminum, blue anodized
Air ports: M10x1.0 to hose barb for 6mm (0.25 in) ID hose
Water ports: M8x1.0 to AN-3

What’s Included

GVW-45 wastegate, blue
Springs
Inlet and outlet weld flanges
Inlet and outlet V-band clamps with fasteners
Water fittings, banjo air fittings and port plugs

Applications

The GVW-45 45mm External Wastegate is not vehicle specific. It mounts to a wastegate runner on the exhaust manifold:

Turbine housing type: Free-float housings with no internal wastegate
Mounting position: Manifold or collector ahead of the turbine, ideally at 45 degrees
Boost control: Springs alone, or a solenoid on the air ports

Notes

Garrett states the wastegate must never be mounted to the turbine housing
Springs are under pressure; Garrett advises eye protection and installation by a qualified technician
The GVW-45 is also sold in red, black and silver, and Garrett makes 40mm, 45mm, 50mm and 60mm GVW sizes

Frequently Asked Questions

Is the GVW-45 45mm External Wastegate the right size for my build? The GVW-45 45mm External Wastegate suits mid-size turbochargers where a 40mm valve would struggle to hold boost. Garrett does not publish power ratings per valve size, so size it against exhaust flow and boost target. Large engines on big-frame turbochargers are better matched to the GVW-50 or GVW-60.
What spring range does the GVW-45 cover? From 0.2 bar to 1.6 bar, which is 3 to 23 psi, with the gate shipped at 1 bar. Garrett publishes a spring chart for the combinations, calculated at a 1:1 boost to backpressure ratio, so expect real manifold boost to differ somewhat on the engine.
Where should it be mounted? On the exhaust manifold or collector ahead of the turbine, on a runner joining the flow at about 45 degrees with a smooth transition. Garrett warns that a 90 degree joint can halve flow capacity and lead to over boosting, and it must never be mounted to the turbine housing.
Does blue anodizing affect function? No. The blue is the anodized finish on the machined 6061 aluminum actuator cover. Garrett offers the same GVW-45 in red, black and silver, with identical valve, housing, springs and hardware, so colour is chosen for looks alone, for example to match other anodized parts in the engine bay.
Can the GVW-45 be rebuilt? Yes. Garrett made the valve and bushing replaceable to extend service life and lists spare parts including the valve seat and fittings. Follow the Garrett install guide torque values when reassembling, such as 30 Nm for the bushing and 10 Nm for the valve stem nut.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
