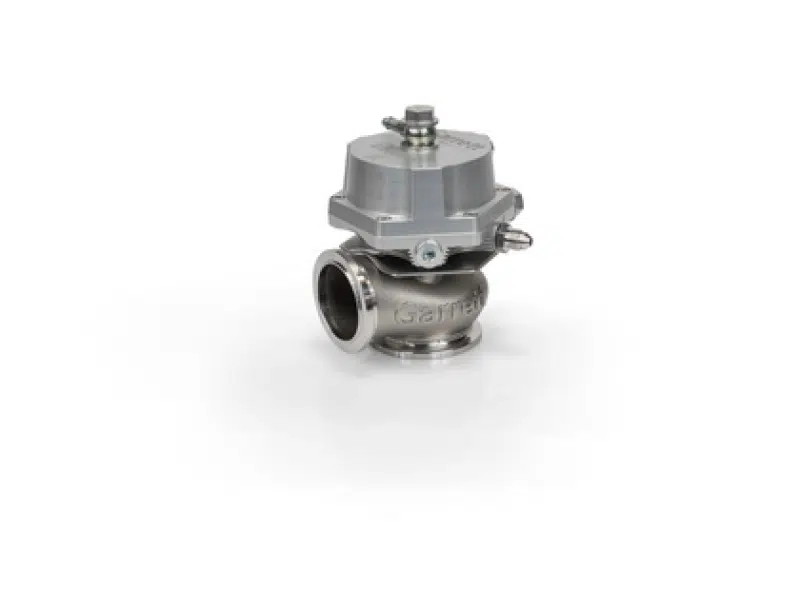

Garrett GVW-40 40mm External Wastegate Kit, Silver

Garrett’s GVW-40 40mm External Wastegate in silver is the plainest finish of Garrett’s smallest GVW, a silver anodized actuator cover over a stainless valve housing Garrett rates to 1050C (1922F). It suits a small to mid-size turbocharger on a free-float housing and offers the widest spring range in the GVW family, from 0.2 to 1.7 bar. How it performs depends heavily on the manifold: Garrett states that placing it at 90 degrees to the flow can cut flow capacity by up to half, so the runner design matters as much as the valve size. It is undersized for big-frame turbocharger builds.

Mounting Matters

Garrett states the ideal wastegate connection is at 45 degrees with a smooth transition from the manifold. At 90 degrees, flow capacity can fall by up to 50 percent and the engine can over boost, and angles beyond 90 degrees reduce flow further. The gate must never be fitted to the turbine housing.

Features

40mm valve with a 1050C (1922F) rated stainless housing
Springs from 0.2 to 1.7 bar, the widest GVW range
V-band inlet and outlet with weld flanges supplied
Silver anodized cover on the GVW-40 40mm External Wastegate

Specifications

Valve diameter: 40mm
Base pressure as shipped: 1 bar (14.5 psi)
Spring base pressure range: 0.2 to 1.7 bar (3 to 25 psi)
Valve housing: High-temperature stainless steel, rated to 1050C (1922F)
Actuator cover: Machined 6061 aluminum, silver anodized
Air ports: M10x1.0 to hose barb for 6mm (0.25 in) ID hose
Water ports: M8x1.0 to AN-3

What’s Included

GVW-40 wastegate, silver
Springs
Inlet and outlet weld flanges
Inlet and outlet V-band clamps with fasteners
Water fittings, banjo air fittings and port plugs

Applications

The GVW-40 40mm External Wastegate is not vehicle specific. It mounts to a wastegate runner on the exhaust manifold:

Turbine housing type: Free-float housings with no internal wastegate
Mounting position: Manifold or collector ahead of the turbine, ideally at 45 degrees
Boost control: Springs alone, or a solenoid on the air ports

Notes

Garrett states the wastegate must never be mounted to the turbine housing
Springs are under pressure; Garrett advises eye protection and installation by a qualified technician
The GVW-40 is also sold in red, blue and black, and Garrett makes 40mm, 45mm, 50mm and 60mm GVW sizes

Frequently Asked Questions

What base pressure does the GVW-40 40mm External Wastegate ship at? Garrett assembles the GVW-40 40mm External Wastegate at 1 bar, or 14.5 psi. With different spring combinations it can be set from 0.2 bar to 1.7 bar, which is 3 to 25 psi. Garrett bases those figures on a 1:1 boost to backpressure ratio.
What angle should the wastegate runner be? About 45 degrees to the exhaust flow, with a smooth transition. Garrett states that a 90 degree runner can reduce flow capacity by up to 50 percent and cause over boosting. A well-designed runner lets a 40mm valve do the job it was sized for.
How hot can the exhaust get? Garrett rates the stainless valve housing for peak exhaust temperatures up to 1050C, or 1922F. The actuator is the part to protect from heat, and Garrett measured it at 270C without cooling and 130C with liquid cooling in its thermal cycle test.
Is silver the same wastegate as the other colours? Yes. Garrett makes the GVW-40 in red, blue, black and silver. The colour is the anodized finish on the actuator cover, while the valve, housing, springs, diaphragm and kit hardware are the same, so the choice is purely about appearance.
Should I connect the coolant ports? It is worth doing when the gate sits close to hot exhaust or in a tight engine bay. Both AN-3 water ports must be used so coolant loops through the actuator body. Uncooled installs remain an option, using the supplied plugs to close the ports.
