What power can the 91mm GTX5533R Gen II Super Core reach?

Garrett rates the 91mm GTX5533R Gen II Super Core at 1000 to 2100 horsepower on 3.0L to 12.0L engines, with flow up to 191 lbs/min. The rating is calculated from compressor choke flow and stands for potential flywheel horsepower, so only a fully built engine approaches it.

Why does the 91mm core use a different compressor housing?

Garrett pairs the three larger GTX5533R inducers, 91mm, 94mm and 98mm, with a 0.96 A/R compressor housing, while the 85mm and 88mm use 0.88 A/R. The larger volute suits the higher mass flow of the bigger wheels. The outlet is still a V-band joint.

Is the 91mm a good middle ground?

For builds aimed at 1800 to 2100 horsepower, yes. It sits between the 88mm, rated to 1900, and the 94mm, rated to 2250. Choose it when the 88mm runs out of flow but the 94mm or 98mm would be slower to respond than the engine and class allow.

Which turbine housings are offered?

Garrett lists seven GTX55 kits for 5533 and 5544 cores: V-band inlet in 1.24 and 1.40 A/R, in standard and long-outlet versions with cross bolts, and T6 inlet in 1.12, 1.24 and 1.40 A/R. All are free float with a V-band outlet and need an external wastegate.

Does the 91mm core have a speed sensor port?

Yes. The Gen II compressor housing has a fully machined speed sensor port that ships plugged and opens with a 5mm Allen key. Garrett sets the GTX5533R maximum at 84,000 rpm, and the Garrett sensor kit, sold separately, shows the tuner how close the turbocharger runs to it.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

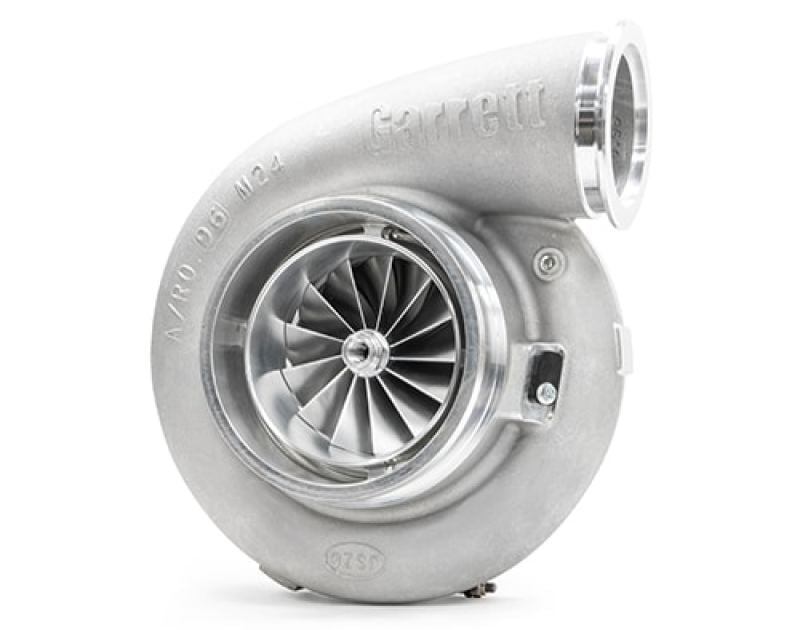

Garrett GTX5533R Gen II Super Core, 91mm Compressor Inducer

Garrett’s GTX5533R Gen II Super Core with the 91mm inducer is where the GTX5533R moves to a larger 0.96 A/R compressor housing, and Garrett rates it at 1000 to 2100 horsepower with flow up to 191 lbs/min on 3.0L to 12.0L engines. The 47 trim wheel and bigger housing push the usable range above 2000 horsepower, which suits a large-displacement V8 on race fuel or methanol. It is the wrong core for a build that will stop around 1500 horsepower, where the 85mm or 88mm GTX5533R will spool sooner and drive better.

What Changes at 91mm

The 85mm and 88mm GTX5533R cores use a 0.88 A/R compressor housing; Garrett lists the 91mm, 94mm and 98mm cores with a 0.96 A/R housing. The turbine stays the same 112mm, 84 trim wheel. Garrett keeps the billet backplate, the improved ported shroud and the V-band compressor outlet across the range.

Features

91mm inducer, 47 trim, flowing up to 191 lbs/min
Larger 0.96 A/R compressor housing
Lightweight billet backplate with V-band compressor outlet

Specifications

Compressor inducer and exducer: 91mm and 133mm
Compressor trim: 47
Compressor housing A/R: 0.96
Turbine inducer and exducer: 112mm and 102mm
Turbine trim: 84
Compressor flow: Up to 191 lbs/min
Maximum turbocharger speed: 84,000 rpm

Applications

The GTX5533R Gen II Super Core is not vehicle specific. Garrett sizes this inducer by engine and output:

Engine displacement: 3.0L to 12.0L
Power range: 1000 to 2100 horsepower (Garrett rating)
Garrett GTX55 turbine kits: V-band inlet in 1.24 or 1.40 A/R, standard or long outlet with cross bolts; T6 inlet in 1.12, 1.24 or 1.40 A/R; all with a V-band outlet

Notes

The turbine housing is not included; Garrett lists seven GTX55 turbine housings for 5533 and 5544 cores
Every GTX55 housing Garrett lists is free float, so an external wastegate is required
The Garrett speed sensor kit is sold separately
Garrett states that running above 84,000 rpm is at the owner’s risk and can cause damage and premature failure
Other GTX5533R Gen II inducer sizes are also listed

Frequently Asked Questions

What power can the 91mm GTX5533R Gen II Super Core reach? Garrett rates the 91mm GTX5533R Gen II Super Core at 1000 to 2100 horsepower on 3.0L to 12.0L engines, with flow up to 191 lbs/min. The rating is calculated from compressor choke flow and stands for potential flywheel horsepower, so only a fully built engine approaches it.
Why does the 91mm core use a different compressor housing? Garrett pairs the three larger GTX5533R inducers, 91mm, 94mm and 98mm, with a 0.96 A/R compressor housing, while the 85mm and 88mm use 0.88 A/R. The larger volute suits the higher mass flow of the bigger wheels. The outlet is still a V-band joint.
Is the 91mm a good middle ground? For builds aimed at 1800 to 2100 horsepower, yes. It sits between the 88mm, rated to 1900, and the 94mm, rated to 2250. Choose it when the 88mm runs out of flow but the 94mm or 98mm would be slower to respond than the engine and class allow.
Which turbine housings are offered? Garrett lists seven GTX55 kits for 5533 and 5544 cores: V-band inlet in 1.24 and 1.40 A/R, in standard and long-outlet versions with cross bolts, and T6 inlet in 1.12, 1.24 and 1.40 A/R. All are free float with a V-band outlet and need an external wastegate.
Does the 91mm core have a speed sensor port? Yes. The Gen II compressor housing has a fully machined speed sensor port that ships plugged and opens with a 5mm Allen key. Garrett sets the GTX5533R maximum at 84,000 rpm, and the Garrett sensor kit, sold separately, shows the tuner how close the turbocharger runs to it.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
