What does short outlet mean on this GTX55 Turbine Housing Kit?

Garrett lists two 1.24 A/R V-band GTX55 housings. Part 761208-0062 has a long outlet with cross bolts, while this GTX55 Turbine Housing Kit, part 761208-0064, does not, so it is sold as the short outlet version. Choose by the space and downpipe layout behind the turbocharger.

Is this housing SFI certified?

No. Turn 14 lists this housing as non-SFI. Garrett states that SFI super core and turbine options exist for the GTX5533R Gen II, so a build that must meet an SFI requirement should source one of those options rather than this part.

What material is the housing?

Turn 14 lists it as stainless steel. Garrett does not state the material on its GTX55 product pages, so the stainless description comes from the supplier listing. Confirm with Bulletproof Automotive if the material is critical to the build, for example where the housing will see long periods at high exhaust temperature.

Will this bolt to a T6 manifold?

No. It has a V-band inlet and needs a manifold or collector with a matching V-band flange. For a T6 manifold Garrett lists the 1.24 A/R T6 inlet GTX55 housing, part 761208-0025, which fits the same GTX55 Gen II cores.

Which cores does this housing fit?

Every GTX55 Gen II core on the Garrett table: five GTX5533R versions spanning 85mm to 98mm compressors and two GTX5544R versions at 102mm and 106mm. Earlier GT and GTX 5533 and 5544 super cores take it too, since all use the 112mm by 102mm turbine wheel.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

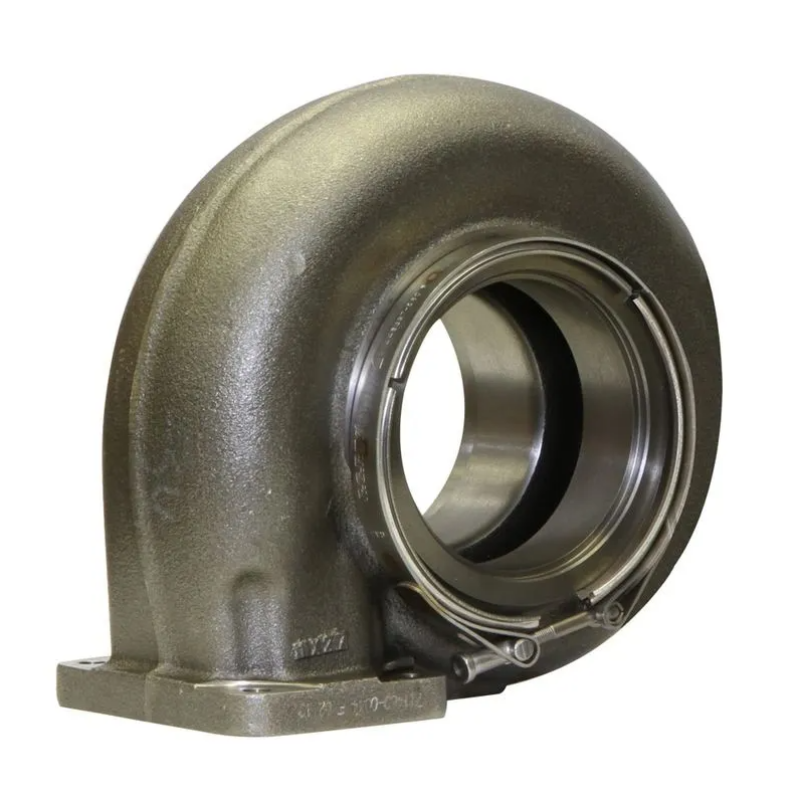

Garrett GTX55 Turbine Housing Kit, 1.24 A/R V-Band In and Out, Short Outlet

Garrett’s GTX55 Turbine Housing Kit in 1.24 A/R with V-band inlet and outlet is the short outlet version of the clamp-on GTX55 housing, the alternative to Garrett’s long outlet housing with cross bolts in the same size. It suits a GTX5533R or GTX5544R Gen II build on a fabricated manifold with a V-band collector, where packaging around the downpipe favors the shorter outlet. Turn 14 lists it as stainless steel and non-SFI, so a build that calls for an SFI-rated turbine housing needs one of the SFI options Garrett mentions instead. If your manifold ends in a T6 flange, part 761208-0025 is the same A/R.

Short Outlet or Long Outlet

Garrett lists four V-band inlet GTX55 housings. Parts 761208-0062 and -0063 have a long outlet with cross bolts; this part and 761208-0065 do not, which is why suppliers call them the short outlet versions. The A/R and free-float layout are otherwise the same across the pair.

Features

V-band inlet and V-band outlet, clockable at both joints
Short outlet without the cross-bolted long outlet of parts 761208-0062 and -0063
1.24 A/R, free float for an external wastegate
The GTX55 Turbine Housing Kit for V-band manifolds on GTX5533R and GTX5544R Gen II cores

Specifications

Garrett part number: 761208-0064
A/R: 1.24
Turbine inlet and outlet: V-band and V-band
Wastegate: External (free float)
Divided inlet: No
Turbine wheel: 112mm inducer, 102mm exducer

Applications

Garrett lists this GTX55 Turbine Housing Kit for these super cores:

Garrett GTX5533R Gen II super cores: 851285-5001S to 851285-5005S (85mm to 98mm)
Garrett GTX5544R Gen II super cores: 851285-5021S (102mm) and 851285-5022S (106mm)
Also interchangeable with: GT and GTX 5533 and 5544 super cores
Engine displacement: 3.0L to 12.0L

Notes

Turbine housing only; the GTX55 Gen II super core is sold separately
An external wastegate is required, because the housing is free float
Listed by Turn 14 as non-SFI; the larger short outlet size is 1.40 A/R

Frequently Asked Questions

What does short outlet mean on this GTX55 Turbine Housing Kit? Garrett lists two 1.24 A/R V-band GTX55 housings. Part 761208-0062 has a long outlet with cross bolts, while this GTX55 Turbine Housing Kit, part 761208-0064, does not, so it is sold as the short outlet version. Choose by the space and downpipe layout behind the turbocharger.
Is this housing SFI certified? No. Turn 14 lists this housing as non-SFI. Garrett states that SFI super core and turbine options exist for the GTX5533R Gen II, so a build that must meet an SFI requirement should source one of those options rather than this part.
What material is the housing? Turn 14 lists it as stainless steel. Garrett does not state the material on its GTX55 product pages, so the stainless description comes from the supplier listing. Confirm with Bulletproof Automotive if the material is critical to the build, for example where the housing will see long periods at high exhaust temperature.
Will this bolt to a T6 manifold? No. It has a V-band inlet and needs a manifold or collector with a matching V-band flange. For a T6 manifold Garrett lists the 1.24 A/R T6 inlet GTX55 housing, part 761208-0025, which fits the same GTX55 Gen II cores.
Which cores does this housing fit? Every GTX55 Gen II core on the Garrett table: five GTX5533R versions spanning 85mm to 98mm compressors and two GTX5544R versions at 102mm and 106mm. Earlier GT and GTX 5533 and 5544 super cores take it too, since all use the 112mm by 102mm turbine wheel.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
