Is the 1.24 A/R T6 GTX55 Turbine Housing Kit a good default?

For most large-engine GTX55 builds on a T6 manifold, yes. The 1.24 A/R GTX55 Turbine Housing Kit sits between the quick 1.12 and the free-flowing 1.40, so it balances boost onset with high-rpm flow across the GTX5533R and GTX5544R Gen II range.

What is the difference between this and part 761208-0064?

The inlet. This part bolts to a T6 manifold flange, while part 761208-0064 has a V-band inlet and a short outlet. Both are 1.24 A/R, free float and listed for the same GTX55 Gen II cores, so the manifold decides which to buy.

Will it fit a GT5533R from before Gen II?

Yes. Garrett lists the GTX55 turbine kits as interchangeable with GT and GTX 5533 and 5544 super cores, and states that all Gen II GTX turbochargers accept existing GT and GTX turbine housings. An older core can use this housing, and an upgrade can keep it.

Does this housing need an external wastegate?

Yes. It is a free-float housing with no internal wastegate port or flapper. The exhaust manifold must carry an external wastegate ahead of the turbine, sized to bleed enough exhaust flow to hold boost on an engine feeding a turbocharger of this size.

How much power can a GTX55 build make with this housing?

Garrett rates the GTX5533R Gen II cores from 1000 horsepower to 2500 on the 98mm version, and the GTX5544R Gen II up to 2850 on the 106mm version, figures based on compressor choke flow as potential flywheel horsepower. The housing shapes spool and breathing within that range.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

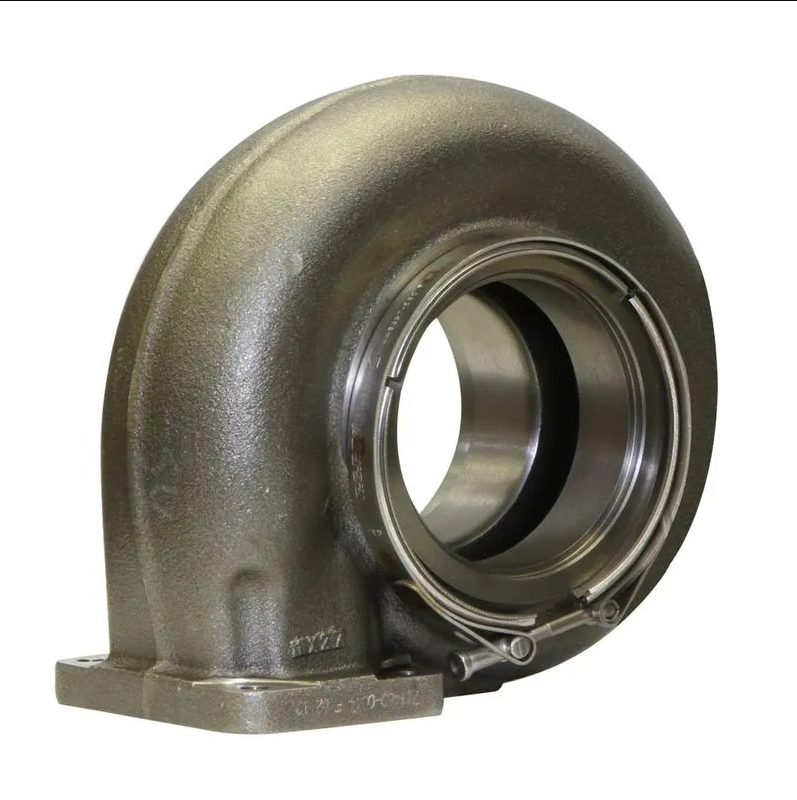

Garrett GTX55 Turbine Housing Kit, 1.24 A/R T6 Inlet, Free Float

Garrett’s GTX55 Turbine Housing Kit in 1.24 A/R with a T6 inlet is the middle T6 size for GTX5533R and GTX5544R Gen II cores, a free-float housing with a V-band outlet that suits most large-engine GTX55 builds on a T6 manifold. It gives up some of the 1.12 A/R housing’s early response for lower backpressure as rpm rises, which pays off on bigger engines and the larger compressor options. Builders on a V-band collector should look at the V-band inlet 1.24 A/R instead, and very small engines will spool better on the 1.12.

Choosing Between Inlets

Garrett makes the 1.24 A/R GTX55 housing with three inlet and outlet arrangements: this T6 inlet version, a V-band inlet short outlet version, and a V-band inlet long outlet version with cross bolts. The manifold flange and the space around the downpipe decide which one fits.

Features

1.24 A/R, the middle T6 size in the GTX55 range
T6 inlet flange with an undivided entry, V-band outlet
Free float, for boost control from an external wastegate
The GTX55 Turbine Housing Kit fits both GTX5533R and GTX5544R Gen II cores

Specifications

Garrett part number: 761208-0025
A/R: 1.24
Turbine inlet and outlet: T6 and V-band
Wastegate: External (free float)
Divided inlet: No
Turbine wheel: 112mm inducer, 102mm exducer

Applications

Garrett lists this GTX55 Turbine Housing Kit for these super cores:

Garrett GTX5533R Gen II super cores: 851285-5001S to 851285-5005S (85mm to 98mm)
Garrett GTX5544R Gen II super cores: 851285-5021S (102mm) and 851285-5022S (106mm)
Also interchangeable with: GT and GTX 5533 and 5544 super cores
Engine displacement: 3.0L to 12.0L

Notes

No super core included; Garrett GTX5533R Gen II cores are listed separately
This free-float housing needs an external wastegate
The V-band inlet version of this A/R is part 761208-0064

Frequently Asked Questions

Is the 1.24 A/R T6 GTX55 Turbine Housing Kit a good default? For most large-engine GTX55 builds on a T6 manifold, yes. The 1.24 A/R GTX55 Turbine Housing Kit sits between the quick 1.12 and the free-flowing 1.40, so it balances boost onset with high-rpm flow across the GTX5533R and GTX5544R Gen II range.
What is the difference between this and part 761208-0064? The inlet. This part bolts to a T6 manifold flange, while part 761208-0064 has a V-band inlet and a short outlet. Both are 1.24 A/R, free float and listed for the same GTX55 Gen II cores, so the manifold decides which to buy.
Will it fit a GT5533R from before Gen II? Yes. Garrett lists the GTX55 turbine kits as interchangeable with GT and GTX 5533 and 5544 super cores, and states that all Gen II GTX turbochargers accept existing GT and GTX turbine housings. An older core can use this housing, and an upgrade can keep it.
Does this housing need an external wastegate? Yes. It is a free-float housing with no internal wastegate port or flapper. The exhaust manifold must carry an external wastegate ahead of the turbine, sized to bleed enough exhaust flow to hold boost on an engine feeding a turbocharger of this size.
How much power can a GTX55 build make with this housing? Garrett rates the GTX5533R Gen II cores from 1000 horsepower to 2500 on the 98mm version, and the GTX5544R Gen II up to 2850 on the 106mm version, figures based on compressor choke flow as potential flywheel horsepower. The housing shapes spool and breathing within that range.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
