Which cores fit the GTX50 Turbine Housing Kit in 1.23 A/R?

Five Gen II cores appear on the Garrett table for the 1.23 A/R GTX50 Turbine Housing Kit: two GTX5009R versions with 76mm and 80mm compressors and three GTX5020R versions with 76mm, 80mm and 88mm compressors. Older GT and GTX 5008, 5009, 5018 and 5020 super cores accept it as well.

Is this a GT50 or a GTX50 housing?

Garrett labels this kit as a GTX50 turbine housing, while some suppliers list it as GT50 or GTX50. The name difference does not change fitment, because Garrett states the kit is interchangeable with both GT and GTX 50 series super cores of the 5008, 5009, 5018 and 5020 types.

How does the 1.23 A/R compare with the 0.96 and 1.39?

It is the middle size. The 0.96 A/R spools fastest and suits smaller engines; the 1.39 A/R flows the most and suits large engines at high rpm. The 1.23 A/R balances the two, which is why it fits a wide range of GTX50 builds.

Does this housing fit a G50 core?

Garrett does not list it for the G-Series G50 or G-XRace GXR50 cores. Those use a 94mm exducer turbine and their own G50 housings, parts 761208-0079 to -0082. This GTX50 housing is listed for the 91mm exducer GTX50 turbine wheel.

What power are the GTX50 cores rated for?

Garrett rates the GTX5009R Gen II at 875 to 1700 horsepower and the GTX5020R Gen II at 1075 to 2050, on engines from 2.5L to 11.0L. The figures come from compressor choke flow as potential flywheel horsepower, so the build and calibration decide the outcome.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

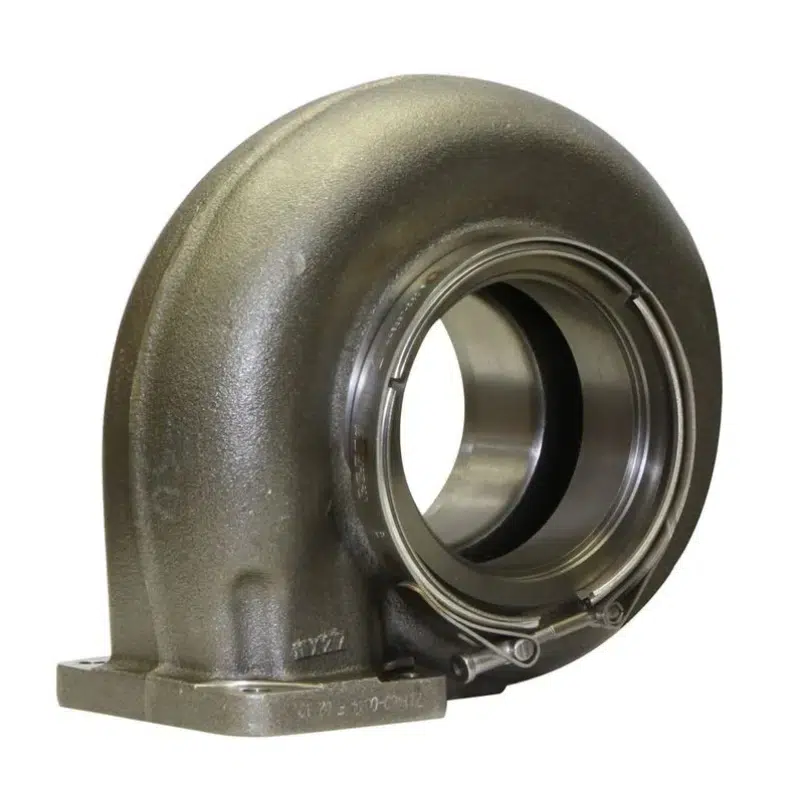

Garrett GTX50 Turbine Housing Kit, 1.23 A/R T6 Inlet, Free Float

Garrett’s GTX50 Turbine Housing Kit in 1.23 A/R is the middle of three exhaust housings Garrett lists for its GTX5009R and GTX5020R Gen II super cores, with a T6 inlet flange, a V-band outlet and a free-float layout. It sits between the quick 0.96 A/R and the high-flow 1.39 A/R, which makes it a sound default for large engines in Garrett’s 2.5L to 11.0L range that need both response and top-end flow. Very small engines will spool better on the 0.96, and engines pushing the 2050 horsepower top of the GTX5020R rating may want the 1.39.

Interchangeability

Garrett states its GTX50 turbine kits are interchangeable with GT and GTX 5008, 5009, 5018 and 5020 super cores, and that all Gen II GTX turbochargers accept existing GT and GTX turbine housings. The housing surrounds a 99mm inducer, 91mm exducer turbine wheel shared by every core on the list.

Features

1.23 A/R, the middle of three GTX50 sizes
T6 inlet flange and V-band outlet with an undivided entry
Free float, for boost control from an external wastegate
The GTX50 Turbine Housing Kit stays in place when moving between GT and GTX 50 series cores

Specifications

Garrett part number: 761208-0032
A/R: 1.23
Turbine inlet and outlet: T6 and V-band
Wastegate: External (free float)
Divided inlet: No
Turbine wheel: 99mm inducer, 91mm exducer

Applications

Garrett lists this GTX50 Turbine Housing Kit for these super cores:

Garrett GTX5009R Gen II super cores: 851285-5016S (76mm) and 851285-5017S (80mm)
Garrett GTX5020R Gen II super cores: 851285-5018S (76mm), 851285-5019S (80mm) and 851285-5020S (88mm)
Also interchangeable with: GT and GTX 5008, 5009, 5018 and 5020 super cores
Engine displacement: 2.5L to 11.0L

Notes

Turbine housing only; the GTX50 Gen II super core is sold separately
An external wastegate is required with this free-float housing
Garrett also offers 0.96 A/R and 1.39 A/R versions

Frequently Asked Questions

Which cores fit the GTX50 Turbine Housing Kit in 1.23 A/R? Five Gen II cores appear on the Garrett table for the 1.23 A/R GTX50 Turbine Housing Kit: two GTX5009R versions with 76mm and 80mm compressors and three GTX5020R versions with 76mm, 80mm and 88mm compressors. Older GT and GTX 5008, 5009, 5018 and 5020 super cores accept it as well.
Is this a GT50 or a GTX50 housing? Garrett labels this kit as a GTX50 turbine housing, while some suppliers list it as GT50 or GTX50. The name difference does not change fitment, because Garrett states the kit is interchangeable with both GT and GTX 50 series super cores of the 5008, 5009, 5018 and 5020 types.
How does the 1.23 A/R compare with the 0.96 and 1.39? It is the middle size. The 0.96 A/R spools fastest and suits smaller engines; the 1.39 A/R flows the most and suits large engines at high rpm. The 1.23 A/R balances the two, which is why it fits a wide range of GTX50 builds.
Does this housing fit a G50 core? Garrett does not list it for the G-Series G50 or G-XRace GXR50 cores. Those use a 94mm exducer turbine and their own G50 housings, parts 761208-0079 to -0082. This GTX50 housing is listed for the 91mm exducer GTX50 turbine wheel.
What power are the GTX50 cores rated for? Garrett rates the GTX5009R Gen II at 875 to 1700 horsepower and the GTX5020R Gen II at 1075 to 2050, on engines from 2.5L to 11.0L. The figures come from compressor choke flow as potential flywheel horsepower, so the build and calibration decide the outcome.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
