How much power can the 88mm GTX4720R Gen II Super Core make?

Garrett rates the 88mm GTX4720R Gen II Super Core at 1025 to 1950 horsepower on engines from 2.5L to 10.0L, the highest of the three GTX4720R options. The figure is derived from compressor choke flow as potential flywheel horsepower, so reaching it needs an engine and fuel system built for that output.

Is the 88mm inducer too big for my engine?

It can be. The 54 trim wheel is the highest-flowing GTX4720R and suits large engines or drag builds focused on peak power. A smaller engine, or one that sees street use, usually responds better with the 76mm or 80mm GTX4720R, which share the same turbine and housings.

Should I run the 1.08 or 1.23 A/R turbine housing?

Garrett lists both for the GTX47 frame, each with a T6 inlet and V-band outlet. The 1.08 A/R brings boost on sooner, which helps smaller engines and drivability. The 1.23 A/R relieves back pressure at high flow and generally suits larger engines making the most power.

Will this Gen II core fit my Gen I intake and charge pipes?

Not without changes. Garrett states the Gen II compressor housing is 6mm longer at the outlet and 10mm longer at the inlet, so it is not outline interchangeable with Gen I. The 107mm outlet diameter stays the same, which keeps couplers and clamps sized as before.

What speed sensor do I need?

A Garrett flange-style sensor. Garrett lists the port as compatible only with part 781328-0003 Street kit or 781328-0004 Pro. The sensor lets the tuner watch shaft speed against the 85,000 rpm maximum Garrett publishes for the GTX4720R Gen II. The kit is sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

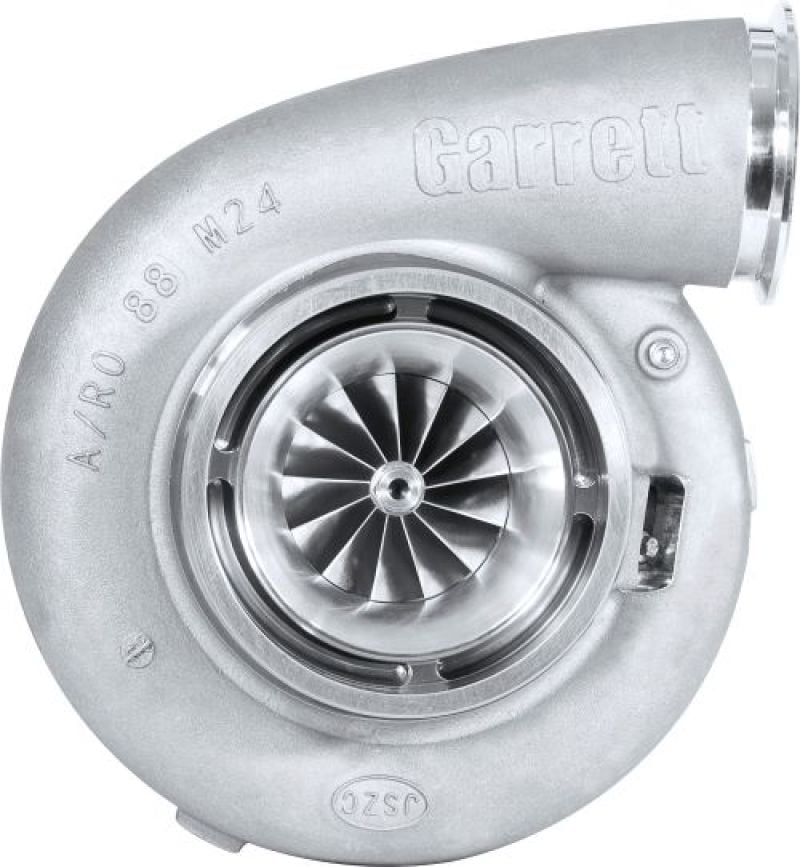

Garrett GTX4720R Gen II Super Core, 88mm Compressor Inducer

Garrett’s GTX4720R Gen II Super Core with the 88mm inducer is the largest GTX4720R, a 54 trim Gen II wheel that Garrett rates at 1025 to 1950 horsepower on engines from 2.5L to 10.0L. It is built for maximum airflow from the GTX47 frame, so it belongs on a big-displacement drag or high-boost build where peak power matters more than how early boost arrives. On a smaller engine or a car that must drive on the street, the 76mm or 80mm GTX4720R will be easier to live with.

Garrett’s Gen II Numbers

Garrett lists 9 percent more compressor flow from the Gen II wheel and 30 percent lower inertia than the GTX4718R, with the exducer grown 2mm to 120mm. The compressor housing volute is a larger 0.88 A/R. On the exhaust side the GTX4720R uses Garrett’s 93mm, 82 trim turbine, which it shares with the GTX4709R.

Features

88mm inducer, 54 trim, the highest-flowing GTX4720R wheel
Gen II compressor housing with a 0.88 A/R volute
Speed sensor port for Garrett’s flange-style sensors

Specifications

Compressor inducer and exducer: 88mm and 120mm
Compressor trim: 54
Compressor housing A/R: 0.88
Turbine inducer and exducer: 93mm and 84mm
Turbine trim: 82
Maximum turbocharger speed: 85,000 rpm

Applications

The GTX4720R Gen II Super Core is not vehicle specific. Garrett sizes this version by engine and output:

Engine displacement: 2.5L to 10.0L
Power range: 1025 to 1950 horsepower (Garrett rating)
Garrett GTX47 turbine kits: 1.08 and 1.23 A/R, T6 inlet, V-band outlet, free float

Notes

The turbine housing is not included; Garrett lists the GT47 turbine housing kits for this core
Both GTX47 housings Garrett lists are free float, so an external wastegate is required
The speed sensor port accepts only Garrett’s flange-style sensors, 781328-0003 Street or 781328-0004 Pro, sold separately as Garrett speed sensor kits
Garrett states that running above 85,000 rpm is at the owner’s risk and can cause damage and premature failure
The Gen II compressor housing is 6mm longer at the outlet and 10mm longer at the inlet than Gen I, so Garrett states it is not outline interchangeable with Gen I

Frequently Asked Questions

How much power can the 88mm GTX4720R Gen II Super Core make? Garrett rates the 88mm GTX4720R Gen II Super Core at 1025 to 1950 horsepower on engines from 2.5L to 10.0L, the highest of the three GTX4720R options. The figure is derived from compressor choke flow as potential flywheel horsepower, so reaching it needs an engine and fuel system built for that output.
Is the 88mm inducer too big for my engine? It can be. The 54 trim wheel is the highest-flowing GTX4720R and suits large engines or drag builds focused on peak power. A smaller engine, or one that sees street use, usually responds better with the 76mm or 80mm GTX4720R, which share the same turbine and housings.
Should I run the 1.08 or 1.23 A/R turbine housing? Garrett lists both for the GTX47 frame, each with a T6 inlet and V-band outlet. The 1.08 A/R brings boost on sooner, which helps smaller engines and drivability. The 1.23 A/R relieves back pressure at high flow and generally suits larger engines making the most power.
Will this Gen II core fit my Gen I intake and charge pipes? Not without changes. Garrett states the Gen II compressor housing is 6mm longer at the outlet and 10mm longer at the inlet, so it is not outline interchangeable with Gen I. The 107mm outlet diameter stays the same, which keeps couplers and clamps sized as before.
What speed sensor do I need? A Garrett flange-style sensor. Garrett lists the port as compatible only with part 781328-0003 Street kit or 781328-0004 Pro. The sensor lets the tuner watch shaft speed against the 85,000 rpm maximum Garrett publishes for the GTX4720R Gen II. The kit is sold separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
