Who should buy the 1.23 A/R GTX47 Turbine Housing Kit?

Builders with large engines or high rpm targets running a GTX4709R or GTX4720R Gen II core. The 1.23 A/R GTX47 Turbine Housing Kit gives more turbine flow and less backpressure than the 1.08, which helps at the top end, but boost arrives later on a small engine.

Does it suit the 88mm GTX4720R Gen II?

Yes. Garrett lists both GTX47 housings for the 88mm GTX4720R Gen II, part 851285-5015S. The large compressor flows the most air in the GTX47 family, and the larger 1.23 A/R housing helps the turbine side keep up on an engine that can feed it.

Is the inlet divided?

No. Garrett lists both GTX47 housings with an undivided T6 inlet. They suit a single-entry T6 manifold, and a twin-scroll T6 manifold would lose its pulse separation at the housing inlet, so it is not the right pairing for a divided manifold.

Does this housing fit GTX50 cores?

No. Garrett lists separate GTX50 housings, such as part 761208-0032, for the GTX5009R and GTX5020R Gen II, which use a larger 99mm by 91mm turbine wheel. The GTX47 housings are sized for the 93mm by 84mm wheel and are listed only for 47 series cores.

What maximum speed applies to the GTX47 cores?

Garrett lists 102,500 rpm for the GTX4709R Gen II and 85,000 rpm for the GTX4720R Gen II. Running above those limits is at the risk of the owner. A speed sensor in the compressor housing lets the tuner watch shaft speed, and Garrett sells the sensor separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

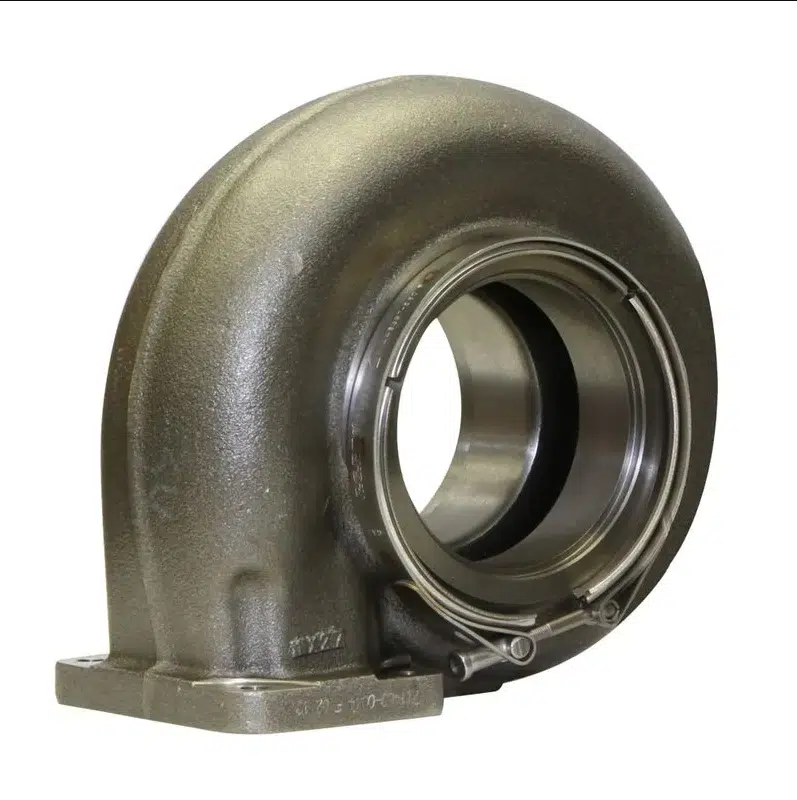

Garrett GTX47 Turbine Housing Kit, 1.23 A/R T6 Inlet, Free Float

Garrett’s GTX47 Turbine Housing Kit in 1.23 A/R is the larger, freer-flowing of the two housings Garrett lists for its GTX47 Gen II cores, keeping the T6 inlet, V-band outlet and free-float layout of the 1.08 A/R version. It suits large engines and high-rpm builds where the turbine side needs to pass more exhaust, especially with the 88mm GTX4720R Gen II compressor. It is more housing than a small engine can drive quickly, and those builds are better off with the 1.08 A/R.

The GTX47 Turbine

Both GTX47 housings surround the same 93mm inducer, 84mm exducer turbine wheel used across the GTX4709R and GTX4720R Gen II cores. Garrett rates those cores from 825 up to 1950 horsepower on engines from 2.0L to 10.0L, figures based on compressor choke flow as potential flywheel horsepower. The 1.23 A/R is aimed at the upper end.

Features

1.23 A/R, the larger of the two GTX47 housings, for lower backpressure
T6 inlet flange with an undivided entry, V-band outlet
Free-float housing for an external wastegate
Suits the GTX47 Turbine Housing Kit buyer running the 88mm GTX4720R Gen II

Specifications

Garrett part number: 761208-0011
A/R: 1.23
Turbine inlet and outlet: T6 and V-band
Wastegate: External (free float)
Divided inlet: No
Turbine wheel: 93mm inducer, 84mm exducer

Applications

Garrett lists this GTX47 Turbine Housing Kit for these super cores:

Garrett GTX4709R Gen II super cores: 851285-5011S (76mm) and 851285-5012S (80mm)
Garrett GTX4720R Gen II super cores: 851285-5013S (76mm), 851285-5014S (80mm) and 851285-5015S (88mm)
Also interchangeable with: GT and GTX 4708, 4709, 4718 and 4720 super cores
Engine displacement: 2.0L to 10.0L

Notes

Super core not included; see Garrett GTX4720R Gen II cores
This free-float housing needs an external wastegate
For quicker spool Garrett offers the 1.08 A/R version

Frequently Asked Questions

Who should buy the 1.23 A/R GTX47 Turbine Housing Kit? Builders with large engines or high rpm targets running a GTX4709R or GTX4720R Gen II core. The 1.23 A/R GTX47 Turbine Housing Kit gives more turbine flow and less backpressure than the 1.08, which helps at the top end, but boost arrives later on a small engine.
Does it suit the 88mm GTX4720R Gen II? Yes. Garrett lists both GTX47 housings for the 88mm GTX4720R Gen II, part 851285-5015S. The large compressor flows the most air in the GTX47 family, and the larger 1.23 A/R housing helps the turbine side keep up on an engine that can feed it.
Is the inlet divided? No. Garrett lists both GTX47 housings with an undivided T6 inlet. They suit a single-entry T6 manifold, and a twin-scroll T6 manifold would lose its pulse separation at the housing inlet, so it is not the right pairing for a divided manifold.
Does this housing fit GTX50 cores? No. Garrett lists separate GTX50 housings, such as part 761208-0032, for the GTX5009R and GTX5020R Gen II, which use a larger 99mm by 91mm turbine wheel. The GTX47 housings are sized for the 93mm by 84mm wheel and are listed only for 47 series cores.
What maximum speed applies to the GTX47 cores? Garrett lists 102,500 rpm for the GTX4709R Gen II and 85,000 rpm for the GTX4720R Gen II. Running above those limits is at the risk of the owner. A speed sensor in the compressor housing lets the tuner watch shaft speed, and Garrett sells the sensor separately.
