Which cores does the 1.08 A/R GTX47 Turbine Housing Kit fit?

Garrett lists the 1.08 A/R GTX47 Turbine Housing Kit for the GTX4709R Gen II in 76mm and 80mm and the GTX4720R Gen II in 76mm, 80mm and 88mm. Garrett also states it is interchangeable with GT and GTX 4708, 4709, 4718 and 4720 super cores.

Should I choose the 1.08 or 1.23 A/R?

Choose the 1.08 A/R when spool and response come first, on smaller engines or a narrower power band. The 1.23 A/R lowers backpressure for larger engines and high rpm. Both share the T6 inlet, V-band outlet and free-float layout, so the engine and target decide it.

Will my older GT4708 or GT4718 core accept this housing?

Yes. Garrett lists the GTX47 turbine kits as interchangeable with GT and GTX 4708, 4709, 4718 and 4720 super cores. That lets an owner keep the manifold and housing while moving to a GTX Gen II core with newer compressor aerodynamics.

Does the housing have an internal wastegate?

No. It is a free-float design, so boost control comes from an external wastegate mounted on the exhaust manifold. On a turbocharger of this frame size the wastegate must be sized to pass enough exhaust flow to hold the target boost at full load.

What power do the matching cores make?

Garrett rates the GTX4709R Gen II at 825 to 1625 horsepower and the GTX4720R Gen II at 1025 to 1950 horsepower, both calculated from compressor choke flow as potential flywheel horsepower. The 1.08 A/R housing favors response within those ranges rather than peak flow.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

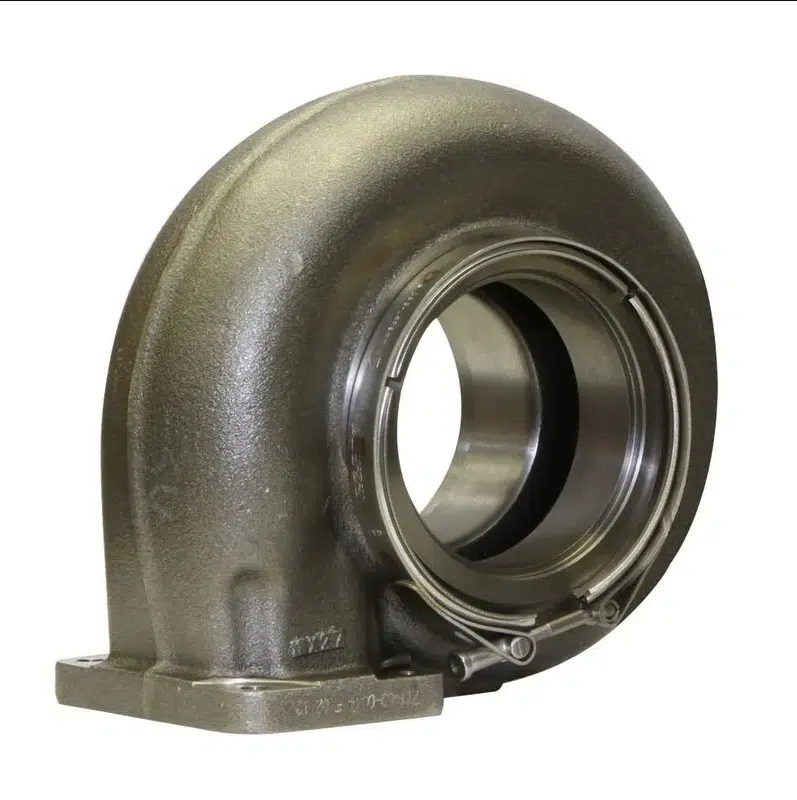

Garrett GTX47 Turbine Housing Kit, 1.08 A/R T6 Inlet, Free Float

Garrett’s GTX47 Turbine Housing Kit in 1.08 A/R is the smaller of the two exhaust housings Garrett lists for its GTX4709R and GTX4720R Gen II super cores, with a T6 inlet flange, a V-band outlet and a free-float layout. It is the choice for engines toward the lower half of the 2.0L to 10.0L range Garrett gives these cores, or any build where getting a large-frame turbocharger into boost early matters. On a big engine aiming at the 1950 horsepower top of the GTX4720R rating, the 1.23 A/R will flow more freely and is the better fit.

Interchangeability

Garrett states the GTX47 turbine kits are interchangeable with GT and GTX 4708, 4709, 4718 and 4720 super cores, and that all Gen II GTX turbochargers accept existing GT and GTX turbine housings. An owner moving from an older GT47 core to a Gen II core can keep this housing.

Features

1.08 A/R, the quicker-spooling of the two GTX47 sizes
T6 inlet flange and V-band outlet, undivided entry
Free float, for boost control by an external wastegate
The GTX47 Turbine Housing Kit carries over from GT47 cores to GTX Gen II cores

Specifications

Garrett part number: 761208-0010
A/R: 1.08
Turbine inlet and outlet: T6 and V-band
Wastegate: External (free float)
Divided inlet: No
Turbine wheel: 93mm inducer, 84mm exducer

Applications

Garrett lists this GTX47 Turbine Housing Kit for these super cores:

Garrett GTX4709R Gen II super cores: 851285-5011S (76mm) and 851285-5012S (80mm)
Garrett GTX4720R Gen II super cores: 851285-5013S (76mm), 851285-5014S (80mm) and 851285-5015S (88mm)
Also interchangeable with: GT and GTX 4708, 4709, 4718 and 4720 super cores
Engine displacement: 2.0L to 10.0L

Notes

Turbine housing only; the GTX47 Gen II super core is sold separately
An external wastegate is required, because the housing has no internal wastegate
Garrett also offers this housing in 1.23 A/R

Frequently Asked Questions

Which cores does the 1.08 A/R GTX47 Turbine Housing Kit fit? Garrett lists the 1.08 A/R GTX47 Turbine Housing Kit for the GTX4709R Gen II in 76mm and 80mm and the GTX4720R Gen II in 76mm, 80mm and 88mm. Garrett also states it is interchangeable with GT and GTX 4708, 4709, 4718 and 4720 super cores.
Should I choose the 1.08 or 1.23 A/R? Choose the 1.08 A/R when spool and response come first, on smaller engines or a narrower power band. The 1.23 A/R lowers backpressure for larger engines and high rpm. Both share the T6 inlet, V-band outlet and free-float layout, so the engine and target decide it.
Will my older GT4708 or GT4718 core accept this housing? Yes. Garrett lists the GTX47 turbine kits as interchangeable with GT and GTX 4708, 4709, 4718 and 4720 super cores. That lets an owner keep the manifold and housing while moving to a GTX Gen II core with newer compressor aerodynamics.
Does the housing have an internal wastegate? No. It is a free-float design, so boost control comes from an external wastegate mounted on the exhaust manifold. On a turbocharger of this frame size the wastegate must be sized to pass enough exhaust flow to hold the target boost at full load.
What power do the matching cores make? Garrett rates the GTX4709R Gen II at 825 to 1625 horsepower and the GTX4720R Gen II at 1025 to 1950 horsepower, both calculated from compressor choke flow as potential flywheel horsepower. The 1.08 A/R housing favors response within those ranges rather than peak flow.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
