What comes with the GTX3582R Gen II Super Core?

The GTX3582R Gen II Super Core is the water-cooled center housing rotating assembly with its Gen II compressor housing installed. The turbine housing is chosen and bought separately from the GT35 range, which Garrett lists in T3, T4 and V-band inlet versions from 0.61 to 1.06 A/R.

How much horsepower can a GTX3582R Gen II make?

Garrett rates it at 450 to 900 horsepower on 2.0L to 4.5L engines. The rating is worked out from compressor choke flow, so it is potential flywheel horsepower. Reaching the upper half takes serious fuel delivery, high boost, strong intercooling and a calibration that keeps the turbo below its speed limit.

GTX3582R or GTX3576R Gen II?

Both share the 68mm GT35 turbine and housings. The GTX3576R uses a 58mm compressor and a 750 horsepower rating and comes on boost sooner. The GTX3582R moves to a 66mm compressor and a 900 horsepower rating, so it is the better pick when the target is above roughly 650 horsepower.

What turbine A/R suits a GTX3582R on a 2.0L?

Garrett offers 0.61 to 1.06 A/R GT35 housings. On a 2.0L, a 0.63 or 0.82 A/R usually gives a usable powerband, while a larger engine or a drag build chasing peak power often runs 1.01 or 1.06. The Garrett exhaust flow chart helps confirm the choice.

How fast can this turbocharger spin?

Garrett lists 130,000 rpm as the maximum allowable speed for the GTX3582R Gen II, and running beyond it is at the risk of the owner. Because high-output builds can approach that limit, a Garrett speed sensor in the machined compressor housing port is a sensible addition. It is sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

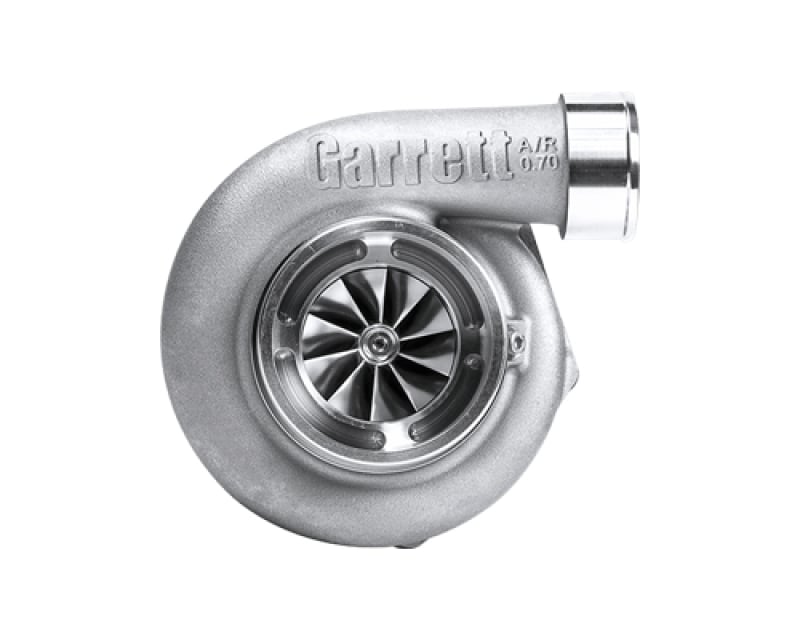

Garrett GTX3582R Gen II Super Core, 66mm Standard Rotation

Garrett’s GTX3582R Gen II Super Core puts a 66mm Gen II compressor on the GT35 frame, and Garrett rates it at 450 to 900 horsepower on engines from 2.0L to 4.5L. That makes it one of the most capable mid frame cores Garrett builds: a fully built 2.0L to 3.0L engine on race fuel or E85 can use most of that range, and a 3.5L to 4.5L engine can reach 700 horsepower without straining it. It is overkill for a street car under 500 horsepower, where the GTX3576R Gen II responds better.

Construction

Garrett runs the GTX3582R Gen II on an 8mm dual ceramic ball bearing in a water-cooled center housing. The compressor wheel was redeveloped with computational fluid dynamics, and Garrett credits Gen II with up to 20 percent more horsepower than the first-generation GTX. The compressor housing is new, with a fully machined inlet, outlet and ported shroud and a machined speed sensor port.

Features

66mm Gen II compressor inducer with an 82mm exducer
Water-cooled center housing with a dual ceramic ball bearing cartridge
Fits all existing standard rotation GT35 turbine housing kits

Specifications

Garrett turbo reference: 6662
Compressor inducer and exducer: 66mm and 82mm
Turbine inducer and exducer: 68mm and 62mm
Bearing system: 8mm dual ceramic ball bearing, water cooled
Maximum turbocharger speed: 130,000 rpm
Rotation: Standard

Applications

The GTX3582R Gen II Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 4.5L
Power range: 450 to 900 horsepower (Garrett rating)
Garrett GT35 free-float kits: T3 or T4 inlet in 0.63, 0.82 or 1.06 A/R; V-band inlet in 0.61, 0.83 or 1.01 A/R

Notes

The turbine housing is not included, and the GT35 housings Garrett lists for this core require an external wastegate
The Garrett speed sensor kit is sold separately
Garrett states that running above 130,000 rpm is at the owner’s risk and can cause damage and premature failure
Turn 14 lists this part as replacing the earlier GTX3582R super core 836047-5002S

Frequently Asked Questions

What comes with the GTX3582R Gen II Super Core? The GTX3582R Gen II Super Core is the water-cooled center housing rotating assembly with its Gen II compressor housing installed. The turbine housing is chosen and bought separately from the GT35 range, which Garrett lists in T3, T4 and V-band inlet versions from 0.61 to 1.06 A/R.
How much horsepower can a GTX3582R Gen II make? Garrett rates it at 450 to 900 horsepower on 2.0L to 4.5L engines. The rating is worked out from compressor choke flow, so it is potential flywheel horsepower. Reaching the upper half takes serious fuel delivery, high boost, strong intercooling and a calibration that keeps the turbo below its speed limit.
GTX3582R or GTX3576R Gen II? Both share the 68mm GT35 turbine and housings. The GTX3576R uses a 58mm compressor and a 750 horsepower rating and comes on boost sooner. The GTX3582R moves to a 66mm compressor and a 900 horsepower rating, so it is the better pick when the target is above roughly 650 horsepower.
What turbine A/R suits a GTX3582R on a 2.0L? Garrett offers 0.61 to 1.06 A/R GT35 housings. On a 2.0L, a 0.63 or 0.82 A/R usually gives a usable powerband, while a larger engine or a drag build chasing peak power often runs 1.01 or 1.06. The Garrett exhaust flow chart helps confirm the choice.
How fast can this turbocharger spin? Garrett lists 130,000 rpm as the maximum allowable speed for the GTX3582R Gen II, and running beyond it is at the risk of the owner. Because high-output builds can approach that limit, a Garrett speed sensor in the machined compressor housing port is a sensible addition. It is sold separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
