Who should buy the GTX3582R Gen II Assembly Kit in 1.06 A/R?

Builders with large engines or very high power targets. The 1.06 A/R housing in this GTX3582R Gen II Assembly Kit is the largest T4 option Garrett lists, keeping exhaust backpressure low at high rpm. Smaller engines usually get better response from the 0.82 A/R T4 version.

What does a 1.06 A/R do to boost response?

It delays it. A larger housing slows exhaust gas less on its way to the turbine, so the turbocharger needs more exhaust flow to build boost, while the engine gains breathing room at high rpm. On larger displacement the extra exhaust flow offsets much of that delay.

What is the maximum allowable turbocharger speed?

Garrett lists 130,000 rpm for the GTX3582R Gen II and states that running beyond it is at the risk of the owner and can result in damage and premature failure. A speed sensor in the plugged compressor housing port lets the calibration watch shaft speed directly.

What power range does Garrett publish?

Garrett publishes 450 to 900 horsepower for the GTX3582R Gen II, for engines from 2.0L to 4.5L. Those numbers come from the choke flow of the compressor map and describe potential flywheel horsepower. Fuel, boost, intercooling and tuning decide where a build lands within the range.

Super core 851154-5004S, carrying the compressor housing, turbine housing kit 740902-0016 in 1.06 A/R with an undivided T4 inlet and V-band outlet, and a gasket kit. The core and housing arrive separately for assembly by the owner or installer. It supersedes core 836047-5002S.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

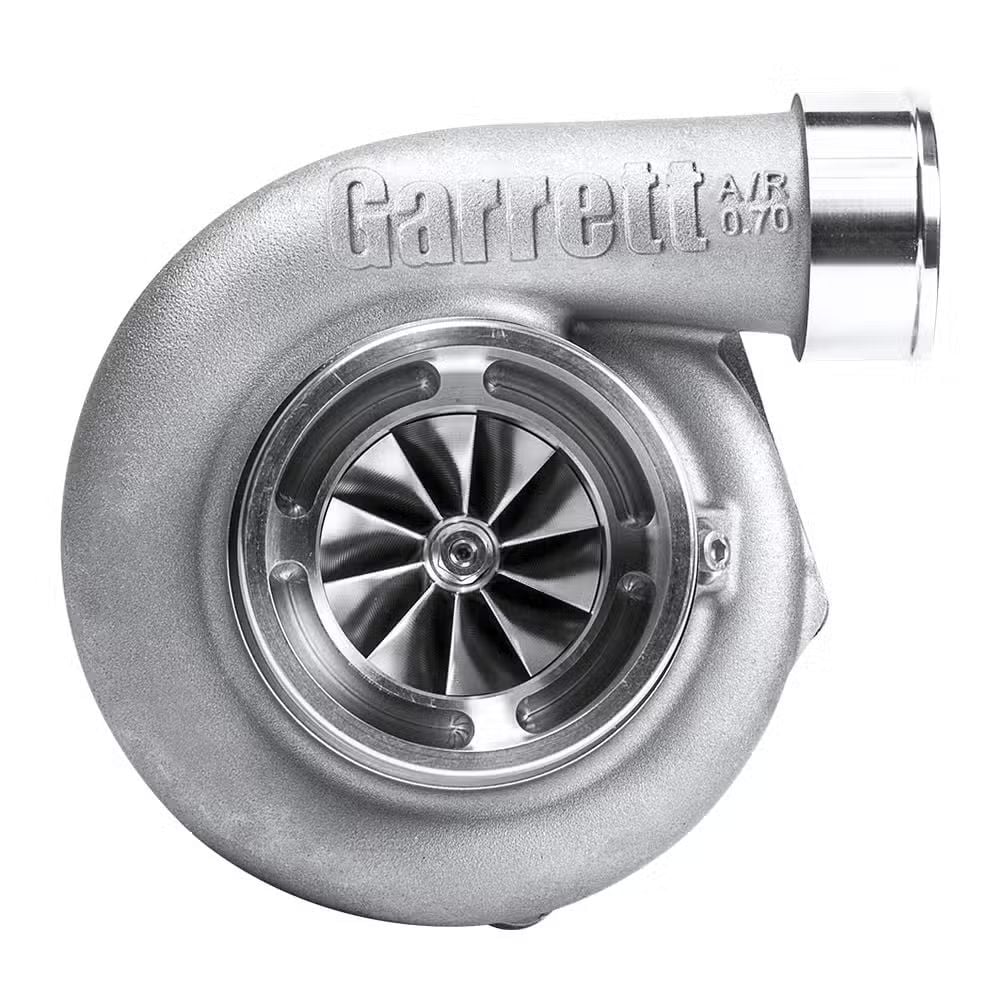

Garrett GTX3582R Gen II Assembly Kit, 1.06 A/R T4 Inlet V-Band Outlet

Garrett’s GTX3582R Gen II Assembly Kit in 1.06 A/R with a T4 inlet uses the largest T4-inlet housing Garrett lists for the 66mm GTX35 Gen II core, kit 740902-0016, paired with super core 851154-5004S. It is free float with a V-band outlet and runs with an external wastegate. With Garrett rating the GTX3582R Gen II at 450 to 900 horsepower on 2.0L to 4.5L engines, the 1.06 A/R is for builds near the top of both ranges: a large six, a small V8, or a high-revving engine on a T4 manifold chasing peak power. It is too large for a 2.0L that needs boost low in the rev range.

Features

Gen II compressor wheel with a 66mm inducer, which Garrett says supports up to 20 percent more horsepower than Gen I
Fully machined speed sensor port, plugged from the factory and opened with a 5mm Allen key
1.06 A/R free-float housing with an undivided T4 inlet flange and V-band outlet

Specifications

Garrett turbo reference: 6662
Compressor inducer and exducer: 66mm and 82mm
Turbine inducer and exducer: 68mm and 62mm
Turbine housing: 1.06 A/R, undivided T4 inlet and V-band outlet
Wastegate: External (free float)
Bearing system: Dual ceramic ball bearing, water-cooled center housing
Maximum turbocharger speed: 130,000 rpm
Rotation: Standard

What’s Included

GTX3582R Gen II super core 851154-5004S with compressor housing
GT35R turbine housing kit 740902-0016, 1.06 A/R, undivided T4 inlet and V-band outlet
Gasket kit

Applications

The GTX3582R Gen II Assembly Kit is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 4.5L
Power range: 450 to 900 horsepower (Garrett rating)
Manifold requirement: Undivided T4 turbine flange with an external wastegate

Notes

Ships as an assembly kit: super core and turbine housing kit in separate boxes, bolted together by the installer
An external wastegate is required, because this turbine housing has no internal wastegate
The GT and GTX version of the Garrett speed sensor kit is sold separately
Garrett states that running above 130,000 rpm is at the owner’s risk and can cause damage and premature failure
More housing sizes for this core are in the GTX3582R Gen II range

Frequently Asked Questions

Who should buy the GTX3582R Gen II Assembly Kit in 1.06 A/R? Builders with large engines or very high power targets. The 1.06 A/R housing in this GTX3582R Gen II Assembly Kit is the largest T4 option Garrett lists, keeping exhaust backpressure low at high rpm. Smaller engines usually get better response from the 0.82 A/R T4 version.
What does a 1.06 A/R do to boost response? It delays it. A larger housing slows exhaust gas less on its way to the turbine, so the turbocharger needs more exhaust flow to build boost, while the engine gains breathing room at high rpm. On larger displacement the extra exhaust flow offsets much of that delay.
What is the maximum allowable turbocharger speed? Garrett lists 130,000 rpm for the GTX3582R Gen II and states that running beyond it is at the risk of the owner and can result in damage and premature failure. A speed sensor in the plugged compressor housing port lets the calibration watch shaft speed directly.
What power range does Garrett publish? Garrett publishes 450 to 900 horsepower for the GTX3582R Gen II, for engines from 2.0L to 4.5L. Those numbers come from the choke flow of the compressor map and describe potential flywheel horsepower. Fuel, boost, intercooling and tuning decide where a build lands within the range.
What is in the kit? Super core 851154-5004S, carrying the compressor housing, turbine housing kit 740902-0016 in 1.06 A/R with an undivided T4 inlet and V-band outlet, and a gasket kit. The core and housing arrive separately for assembly by the owner or installer. It supersedes core 836047-5002S.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
