Is the GTX3582R Gen II Assembly Kit in 0.63 A/R a good fit for a 2.0L?

It is the version of the GTX3582R Gen II Assembly Kit best suited to small engines. Garrett lists the core for 2.0L to 4.5L, and the 0.63 A/R T3 housing gives the quickest spool of the T3 options, which helps a 2.0L engine use a 66mm compressor. The trade-off is more exhaust backpressure at high rpm.

What does Garrett rate the GTX3582R Gen II at?

450 to 900 horsepower, on engines from 2.0L to 4.5L. Garrett calculates the range from the choke flow of the compressor map, so it describes potential flywheel horsepower. What a particular engine makes depends on its fuel system, intercooling, boost target and tuning.

Does this housing bolt to a T3 manifold?

Yes. The 740902-0012 housing has a T3 turbine inlet and a V-band outlet. It is free float with no internal wastegate, so the T3 manifold must carry an external wastegate. Garrett also lists T4 and V-band inlet GT35R housings for this core.

Is the center housing water cooled?

Yes. Garrett lists a water-cooled center housing and a dual ceramic ball bearing cartridge among the GTX3582R Gen II features. The installation therefore needs coolant feed and return lines as well as oil feed and drain lines, along with a calibration for the new turbocharger.

The super core 851154-5004S, with compressor housing fitted, the 740902-0012 GT35R turbine housing kit in 0.63 A/R, and a gasket kit. Garrett ships the core and housing separately and the owner assembles them. This super core replaces the earlier 836047-5002S.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

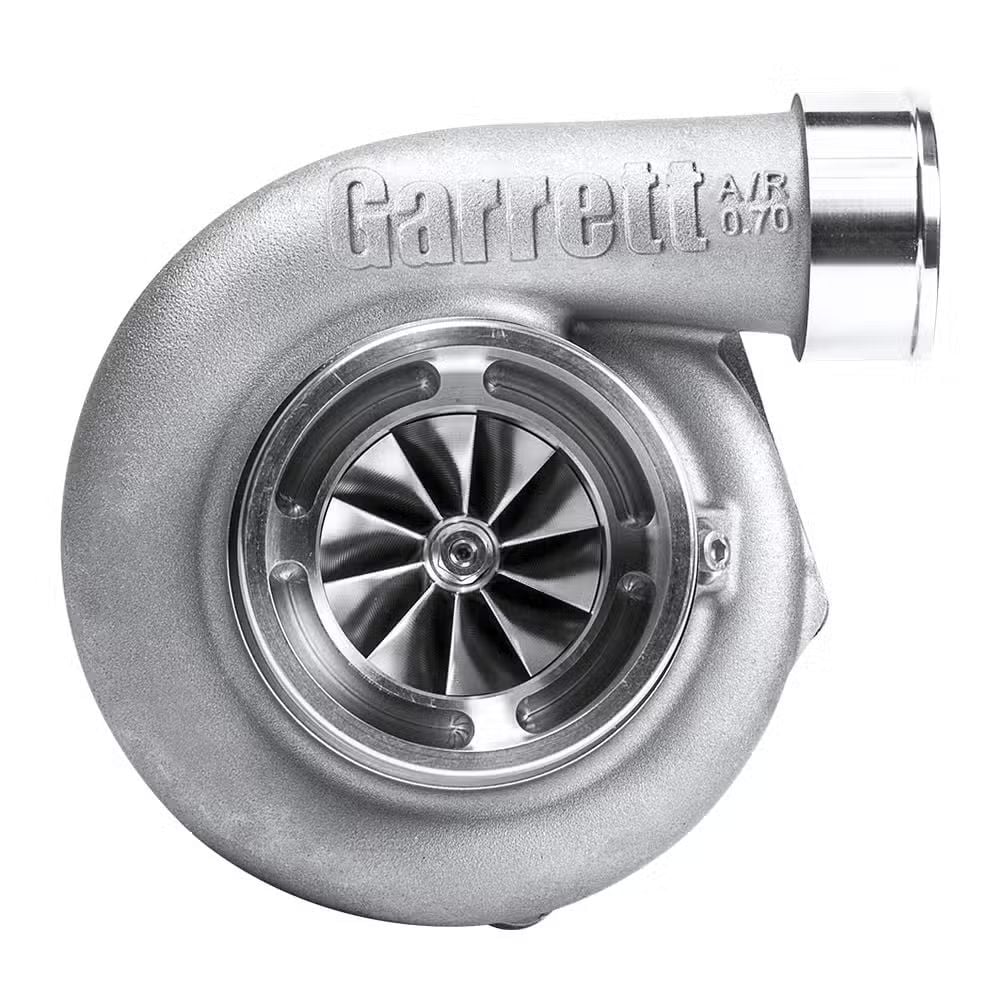

Garrett GTX3582R Gen II Assembly Kit, 0.63 A/R T3 Inlet V-Band Outlet

Garrett’s GTX3582R Gen II Assembly Kit in 0.63 A/R T3 form is the most response-focused way to run Garrett’s 66mm GTX35 Gen II compressor, pairing super core 851154-5004S with the smallest T3-inlet GT35R housing on Garrett’s list, kit 740902-0012. Garrett rates the GTX3582R Gen II at 450 to 900 horsepower on 2.0L to 4.5L engines. The small housing helps a 2.0L to 2.5L engine bring a compressor this size on boost, at the cost of backpressure near the top of the rating. A T3 tubular manifold with an external wastegate is the intended partner. Engines over 3.0L, or builds near 900 horsepower, should look at a larger A/R.

Features

Gen II compressor wheel with a 66mm inducer, which Garrett says supports up to 20 percent more horsepower than Gen I
Fully machined speed sensor port, plugged from the factory and opened with a 5mm Allen key
0.63 A/R free-float housing with a T3 inlet flange and V-band outlet

Specifications

Garrett turbo reference: 6662
Compressor inducer and exducer: 66mm and 82mm
Turbine inducer and exducer: 68mm and 62mm
Turbine housing: 0.63 A/R, T3 inlet and V-band outlet
Wastegate: External (free float)
Bearing system: Dual ceramic ball bearing, water-cooled center housing
Maximum turbocharger speed: 130,000 rpm
Rotation: Standard

What’s Included

GTX3582R Gen II super core 851154-5004S with compressor housing
GT35R turbine housing kit 740902-0012, 0.63 A/R, T3 inlet and V-band outlet
Gasket kit

Applications

The GTX3582R Gen II Assembly Kit is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 4.5L
Power range: 450 to 900 horsepower (Garrett rating)
Manifold requirement: T3 turbine flange with an external wastegate

Notes

Ships as an assembly kit: super core and turbine housing kit in separate boxes, bolted together by the installer
An external wastegate is required, because this turbine housing has no internal wastegate
The GT and GTX version of the Garrett speed sensor kit is sold separately
Garrett states that running above 130,000 rpm is at the owner’s risk and can cause damage and premature failure
More housing sizes for this core are in the GTX3582R Gen II range

Frequently Asked Questions

Is the GTX3582R Gen II Assembly Kit in 0.63 A/R a good fit for a 2.0L? It is the version of the GTX3582R Gen II Assembly Kit best suited to small engines. Garrett lists the core for 2.0L to 4.5L, and the 0.63 A/R T3 housing gives the quickest spool of the T3 options, which helps a 2.0L engine use a 66mm compressor. The trade-off is more exhaust backpressure at high rpm.
What does Garrett rate the GTX3582R Gen II at? 450 to 900 horsepower, on engines from 2.0L to 4.5L. Garrett calculates the range from the choke flow of the compressor map, so it describes potential flywheel horsepower. What a particular engine makes depends on its fuel system, intercooling, boost target and tuning.
Does this housing bolt to a T3 manifold? Yes. The 740902-0012 housing has a T3 turbine inlet and a V-band outlet. It is free float with no internal wastegate, so the T3 manifold must carry an external wastegate. Garrett also lists T4 and V-band inlet GT35R housings for this core.
Is the center housing water cooled? Yes. Garrett lists a water-cooled center housing and a dual ceramic ball bearing cartridge among the GTX3582R Gen II features. The installation therefore needs coolant feed and return lines as well as oil feed and drain lines, along with a calibration for the new turbocharger.
What is in the box? The super core 851154-5004S, with compressor housing fitted, the 740902-0012 GT35R turbine housing kit in 0.63 A/R, and a gasket kit. Garrett ships the core and housing separately and the owner assembles them. This super core replaces the earlier 836047-5002S.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
