Is a housing included with the GTX3576R Gen II CHRA?

No. The CHRA is the center housing rotating assembly only, with the bearing system, shaft, 68mm turbine wheel and 58mm Gen II compressor wheel. Both housings are bought separately. The GTX3576R Gen II super core adds the Gen II compressor housing for builds starting without housings.

What horsepower does Garrett rate the GTX3576R Gen II for?

Garrett rates it at 400 to 750 horsepower on engines from 2.0L to 4.5L, calculated from compressor choke flow and stated as potential flywheel horsepower. The GTX3576R Gen II CHRA will only reach the upper end with the fuel system, boost and calibration to match.

GTX3576R or GTX3582R Gen II?

Both share the 68mm turbine wheel. The GTX3576R uses a 58mm compressor inducer, rated to 750 horsepower, and spools sooner with a higher 145,000 rpm limit. The GTX3582R moves to a 66mm inducer and a 900 horsepower rating for engines that need more airflow.

Which turbine housings fit the GTX3576R Gen II?

Garrett states all GTX Gen II turbochargers are compatible with existing GT and GTX turbine housing kits. It lists GT35 free float housings in 0.61, 0.83 and 1.01 A/R V-band and 0.63, 0.82 and 1.06 A/R with T3 or T4 inlets, plus reverse rotation V-band options.

Can I keep my Gen I compressor housing?

Garrett does not say that a Gen II wheel will run in a Gen I compressor housing, and it does state that Gen II housings do not accept Gen I wheels. The safe route is a Gen II compressor housing or the Gen II super core. Ask us to check an existing housing before ordering.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

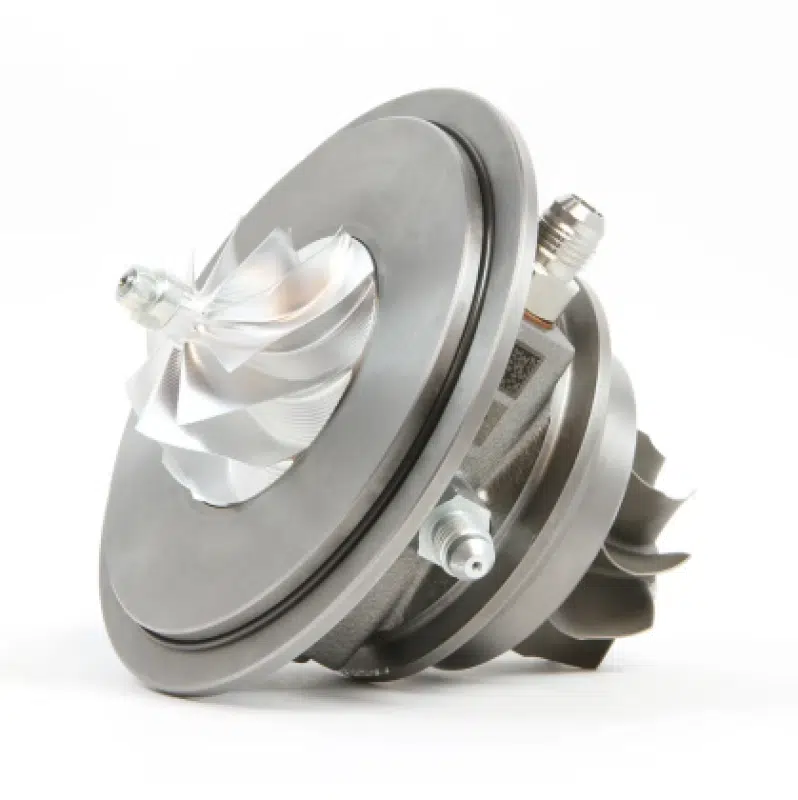

Garrett GTX3576R Gen II CHRA, 58mm Compressor

Garrett’s GTX3576R Gen II CHRA is the center section of the GTX3576R Gen II, combining a 58mm Gen II compressor wheel with the 68mm GT35 turbine wheel, supplied without compressor or turbine housings. Garrett rates the GTX3576R Gen II at 400 to 750 horsepower on 2.0L to 4.5L engines. That suits a built four-cylinder aimed at 600 horsepower or a 3.0L six on a moderate target, where the smaller compressor brings boost in earlier than the GTX3582R. Builds aiming much past 750 horsepower should go straight to the 66mm GTX3582R Gen II.

What Gen II Changed

Garrett developed the Gen II compressor wheel with computational fluid dynamics and states it supports up to 20 percent more horsepower than the previous GTX3576R. The Gen II compressor housing gained a fully machined inlet, outlet and ported shroud and a machined speed sensor port, while the turbine side stays compatible with all existing GT and GTX turbine housing kits.

Features

58mm inducer, 76mm exducer Gen II compressor wheel
68mm inducer, 62mm exducer turbine wheel
Gen II turbochargers are outline interchangeable with Gen I GT and GTX equivalents

Specifications

Garrett turbo reference: 5862
Compressor inducer and exducer: 58mm and 76mm
Turbine inducer and exducer: 68mm and 62mm
Maximum turbocharger speed: 145,000 rpm
Matching super core: 851154-5003S

Applications

The GTX3576R Gen II CHRA is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 4.5L
Power range: 400 to 750 horsepower (Garrett rating)
Garrett GT35 and GTX35 turbine kits: 0.61, 0.83 and 1.01 A/R V-band and 0.63, 0.82 and 1.06 A/R T3 or T4 free float housings in standard rotation; 0.61, 0.83 and 1.01 A/R V-band in reverse rotation

Notes

Compressor and turbine housings are not included; the GTX3576R Gen II super core ships with the Gen II compressor housing
Garrett states that Gen II compressor housings do not accept Gen I compressor wheels
Garrett states that running above 145,000 rpm is at the owner’s risk and can cause premature failure
The Garrett speed sensor kit is sold separately

Frequently Asked Questions

Is a housing included with the GTX3576R Gen II CHRA? No. The CHRA is the center housing rotating assembly only, with the bearing system, shaft, 68mm turbine wheel and 58mm Gen II compressor wheel. Both housings are bought separately. The GTX3576R Gen II super core adds the Gen II compressor housing for builds starting without housings.
What horsepower does Garrett rate the GTX3576R Gen II for? Garrett rates it at 400 to 750 horsepower on engines from 2.0L to 4.5L, calculated from compressor choke flow and stated as potential flywheel horsepower. The GTX3576R Gen II CHRA will only reach the upper end with the fuel system, boost and calibration to match.
GTX3576R or GTX3582R Gen II? Both share the 68mm turbine wheel. The GTX3576R uses a 58mm compressor inducer, rated to 750 horsepower, and spools sooner with a higher 145,000 rpm limit. The GTX3582R moves to a 66mm inducer and a 900 horsepower rating for engines that need more airflow.
Which turbine housings fit the GTX3576R Gen II? Garrett states all GTX Gen II turbochargers are compatible with existing GT and GTX turbine housing kits. It lists GT35 free float housings in 0.61, 0.83 and 1.01 A/R V-band and 0.63, 0.82 and 1.06 A/R with T3 or T4 inlets, plus reverse rotation V-band options.
Can I keep my Gen I compressor housing? Garrett does not say that a Gen II wheel will run in a Gen I compressor housing, and it does state that Gen II housings do not accept Gen I wheels. The safe route is a Gen II compressor housing or the Gen II super core. Ask us to check an existing housing before ordering.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
