What is the difference between the GTX3576R and the GTX3076R Gen II?

The turbine side. Both use a 58mm compressor rated to 750 horsepower, but the GTX3576R Gen II has a 68mm turbine wheel and GT35R housings against the 60mm turbine of the GTX3076R. Garrett therefore lists it for engines from 2.0L to 4.5L, while the GTX3076R covers 1.8L to 3.0L.

What comes with the GTX3576R Gen II Assembly Kit?

The GTX3576R Gen II Assembly Kit includes the 851154-5003S super core with compressor housing, the 740902-0032 GT35R turbine housing kit in 0.83 A/R, and a gasket kit. The core and housing ship as separate boxes, and the owner assembles them into a complete turbocharger.

Is the 0.83 A/R the right housing for my engine?

It is the middle of the three V-band sizes Garrett lists for this core, between 0.61 and 1.01 A/R. It suits most engines from about 2.5L to 3.5L that want a balance of spool and top-end flow. Very large or very high-rpm engines may prefer the 1.01 A/R.

How fast can the GTX3576R Gen II spin?

Garrett sets a maximum allowable speed of 145,000 rpm and states that operating above it can cause damage and premature failure. The compressor housing has a factory-machined, plugged speed sensor port that accepts the Garrett GT and GTX sensor, sold separately, so shaft speed can be logged.

Do I need an external wastegate?

Yes. Every GT35R housing Garrett lists for this core is free float, and this 0.83 A/R version has no internal wastegate. The exhaust manifold needs a V-band turbine flange and an external wastegate to control boost. A V-band downpipe completes the hot side.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

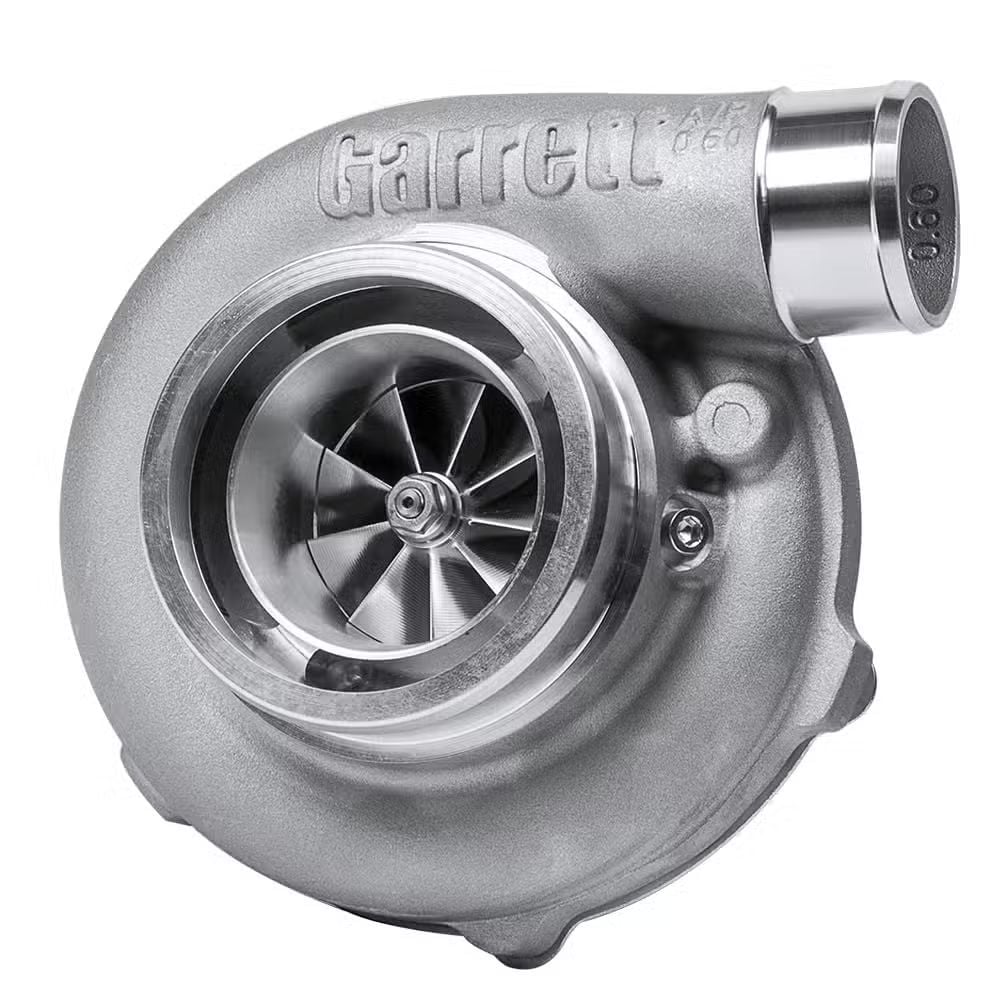

Garrett GTX3576R Gen II Assembly Kit, 0.83 A/R V-Band Free Float

Garrett’s GTX3576R Gen II Assembly Kit puts the 58mm compressor of the GTX3076R on a bigger 68mm turbine wheel and GT35R exhaust housing, which moves the target from small four-cylinders to engines of 2.0L to 4.5L. This version pairs super core 851154-5003S with the 0.83 A/R V-band free-float housing, kit 740902-0032. Garrett rates the GTX3576R Gen II at 400 to 750 horsepower. The larger turbine suits a 3.0L six or a bigger engine whose exhaust flow would crowd a GTX30 turbine, run with an external wastegate. On a 2.0L engine the GTX3076R is usually the more responsive choice.

Features

Gen II compressor wheel with a 58mm inducer, which Garrett says supports up to 20 percent more horsepower than Gen I
Fully machined speed sensor port, plugged from the factory and opened with a 5mm Allen key
0.83 A/R free-float housing with V-band joints at both ends, clockable to the manifold and downpipe

Specifications

Garrett turbo reference: 5862
Compressor inducer and exducer: 58mm and 76mm
Turbine inducer and exducer: 68mm and 62mm
Turbine housing: 0.83 A/R, V-band inlet and V-band outlet
Wastegate: External (free float)
Bearing system: 8mm dual ceramic ball bearing
Maximum turbocharger speed: 145,000 rpm
Rotation: Standard

What’s Included

GTX3576R Gen II super core 851154-5003S with compressor housing
GT35R turbine housing kit 740902-0032, 0.83 A/R, V-band inlet and V-band outlet
Gasket kit

Applications

The GTX3576R Gen II Assembly Kit is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 4.5L
Power range: 400 to 750 horsepower (Garrett rating)
Manifold requirement: V-band turbine flange with an external wastegate

Notes

Ships as an assembly kit: super core and turbine housing kit in separate boxes, bolted together by the installer
An external wastegate is required, because this turbine housing has no internal wastegate
The GT and GTX version of the Garrett speed sensor kit is sold separately
Garrett states that running above 145,000 rpm is at the owner’s risk and can cause damage and premature failure
More housing sizes for this core are in the GTX3576R Gen II range

Frequently Asked Questions

What is the difference between the GTX3576R and the GTX3076R Gen II? The turbine side. Both use a 58mm compressor rated to 750 horsepower, but the GTX3576R Gen II has a 68mm turbine wheel and GT35R housings against the 60mm turbine of the GTX3076R. Garrett therefore lists it for engines from 2.0L to 4.5L, while the GTX3076R covers 1.8L to 3.0L.
What comes with the GTX3576R Gen II Assembly Kit? The GTX3576R Gen II Assembly Kit includes the 851154-5003S super core with compressor housing, the 740902-0032 GT35R turbine housing kit in 0.83 A/R, and a gasket kit. The core and housing ship as separate boxes, and the owner assembles them into a complete turbocharger.
Is the 0.83 A/R the right housing for my engine? It is the middle of the three V-band sizes Garrett lists for this core, between 0.61 and 1.01 A/R. It suits most engines from about 2.5L to 3.5L that want a balance of spool and top-end flow. Very large or very high-rpm engines may prefer the 1.01 A/R.
How fast can the GTX3576R Gen II spin? Garrett sets a maximum allowable speed of 145,000 rpm and states that operating above it can cause damage and premature failure. The compressor housing has a factory-machined, plugged speed sensor port that accepts the Garrett GT and GTX sensor, sold separately, so shaft speed can be logged.
Do I need an external wastegate? Yes. Every GT35R housing Garrett lists for this core is free float, and this 0.83 A/R version has no internal wastegate. The exhaust manifold needs a V-band turbine flange and an external wastegate to control boost. A V-band downpipe completes the hot side.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
