What does the GTX3076R Gen II Super Core include?

It is the center housing rotating assembly with the Gen II compressor housing already fitted. This GTX3076R Gen II Super Core needs a GT30 turbine housing, which is sold separately, and Garrett lists free-float T3 and V-band inlet kits plus internally wastegated T3 kits for it.

How much power is the GTX3076R Gen II rated for?

Garrett rates it at 400 to 750 horsepower on engines from 1.8L to 3.0L. Garrett takes the figure from compressor choke flow, so it is a potential flywheel number. The upper end assumes an engine, fuel system and calibration built for that output, and a mild build will land lower.

Which turbine A/R works with a GTX3076R Gen II?

Garrett offers GT30 housings from 0.61 to 1.06 A/R. A 0.63 or 0.82 A/R housing helps a 2.0L build boost earlier, while 1.01 or 1.06 A/R favors top-end flow on a 3.0L or a high-revving engine. Compare the options on the Garrett flow charts before deciding.

Will Gen II parts swap with my Gen I GTX3076R?

The complete turbocharger is outline interchangeable with the Gen I GTX3076R, so piping and turbine housings carry over. Garrett notes that a Gen II compressor housing does not accept a Gen I compressor wheel, so treat the Gen II core as a complete replacement of the old center section.

What is the speed limit for this turbocharger?

Garrett lists a maximum allowable speed of 145,000 rpm for the GTX3076R Gen II and states that running above it is at the risk of the owner. A Garrett speed sensor fits the machined port in the compressor housing so the tuner can monitor shaft speed; the sensor kit is a separate purchase.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

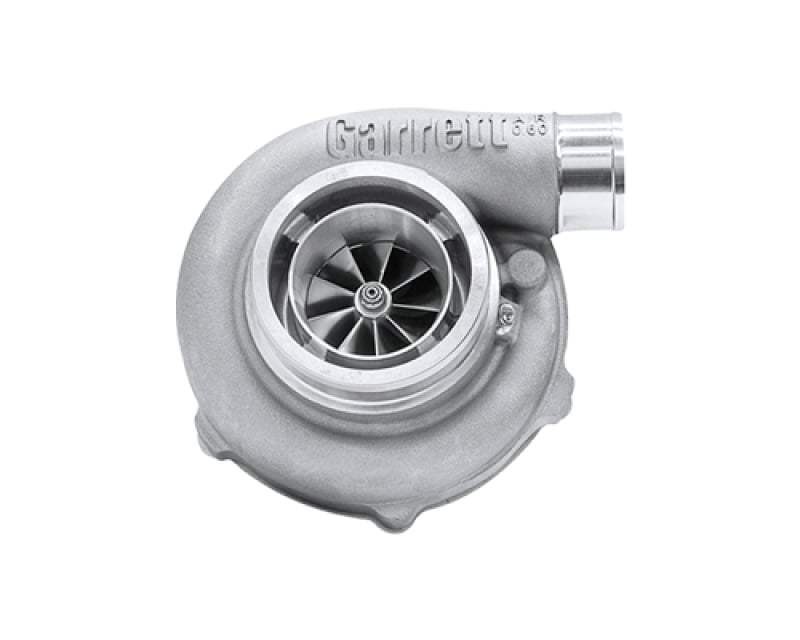

Garrett GTX3076R Gen II Super Core, 58mm Standard Rotation

Garrett’s GTX3076R Gen II Super Core takes the GT30 frame to a 58mm Gen II compressor inducer, rated by Garrett at 400 to 750 horsepower on engines from 1.8L to 3.0L. That is a lot of airflow for a small frame, so it belongs on a built four or six with the fuel system to match, typically a 2.0L to 3.0L engine targeting 500 to 650 horsepower. On a stock-internal engine capped near 400 horsepower the GTX3071R Gen II will spool sooner. Turn 14 lists this standard rotation core as the replacement for Garrett’s earlier GTX3076R super core.

Gen II Construction

Garrett redesigned the GTX compressor wheel using computational fluid dynamics and pairs it with a new high-flow compressor housing. The inlet, outlet and ported shroud are fully machined for tighter tolerances. The 8mm dual ceramic ball bearing cartridge reduces shaft motion, and Garrett credits the Gen II update with up to 20 percent more horsepower than the earlier version.

Features

58mm Gen II compressor inducer with a 76mm exducer
Speed sensor port machined into the compressor housing and supplied plugged
Bolts to all existing GT and GTX turbine housing kits of the GT30 frame

Specifications

Garrett turbo reference: 5855
Compressor inducer and exducer: 58mm and 76mm
Turbine inducer and exducer: 60mm and 55mm
Bearing system: 8mm dual ceramic ball bearing
Maximum turbocharger speed: 145,000 rpm
Rotation: Standard

Applications

The GTX3076R Gen II Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.8L to 3.0L
Power range: 400 to 750 horsepower (Garrett rating)
Garrett GT30 turbine kits: Free float with T3 or V-band inlet, 0.61 to 1.06 A/R, or internally wastegated T3 in 0.63, 0.82 or 1.06 A/R

Notes

The turbine housing is not included
The Garrett speed sensor kit is sold separately
Garrett states that running above 145,000 rpm is at the owner’s risk and can cause damage and premature failure
Turn 14 lists this part as replacing the earlier GTX3076R super core 836042-5003S
A reverse rotation GTX3076R Gen II is also listed

Frequently Asked Questions

What does the GTX3076R Gen II Super Core include? It is the center housing rotating assembly with the Gen II compressor housing already fitted. This GTX3076R Gen II Super Core needs a GT30 turbine housing, which is sold separately, and Garrett lists free-float T3 and V-band inlet kits plus internally wastegated T3 kits for it.
How much power is the GTX3076R Gen II rated for? Garrett rates it at 400 to 750 horsepower on engines from 1.8L to 3.0L. Garrett takes the figure from compressor choke flow, so it is a potential flywheel number. The upper end assumes an engine, fuel system and calibration built for that output, and a mild build will land lower.
Which turbine A/R works with a GTX3076R Gen II? Garrett offers GT30 housings from 0.61 to 1.06 A/R. A 0.63 or 0.82 A/R housing helps a 2.0L build boost earlier, while 1.01 or 1.06 A/R favors top-end flow on a 3.0L or a high-revving engine. Compare the options on the Garrett flow charts before deciding.
Will Gen II parts swap with my Gen I GTX3076R? The complete turbocharger is outline interchangeable with the Gen I GTX3076R, so piping and turbine housings carry over. Garrett notes that a Gen II compressor housing does not accept a Gen I compressor wheel, so treat the Gen II core as a complete replacement of the old center section.
What is the speed limit for this turbocharger? Garrett lists a maximum allowable speed of 145,000 rpm for the GTX3076R Gen II and states that running above it is at the risk of the owner. A Garrett speed sensor fits the machined port in the compressor housing so the tuner can monitor shaft speed; the sensor kit is a separate purchase.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
