Is the GTX3076R Gen II Assembly Kit in 1.01 A/R too big for a 2.0L?

For most street 2.0L engines, yes. The 1.01 A/R is the largest V-band housing Garrett lists for the GTX3076R Gen II Assembly Kit and delays boost compared with the 0.61 and 0.83 A/R options. It makes most sense on larger engines or high-rpm builds aimed near the 750 horsepower rating.

What does a larger A/R change?

A/R describes the size of the turbine housing passage relative to its radius. A larger A/R slows exhaust gas less, so backpressure falls and the engine breathes better at high rpm, while the turbine needs more exhaust flow before it makes boost. Choose by displacement and the rpm the engine uses most.

The kit has three parts: the 851154-5001S GTX3076R Gen II super core with compressor housing, the 740902-0034 GT30R turbine housing kit in 1.01 A/R, and a gasket kit. Core and housing ship in separate boxes and are joined by the installer.

What engine displacement does Garrett recommend?

Garrett lists the GTX3076R Gen II for engines from 1.8L to 3.0L, rated at 400 to 750 horsepower. The rating comes from compressor choke flow and is potential flywheel horsepower. With this large housing, the upper half of that displacement range is the natural fit.

Yes. Any change of turbocharger this size requires a calibration for fueling, ignition and boost control, and the external wastegate needs to be set to match. Garrett also recommends a speed sensor so the tuner can keep the shaft under 145,000 rpm, and the sensor kit is sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

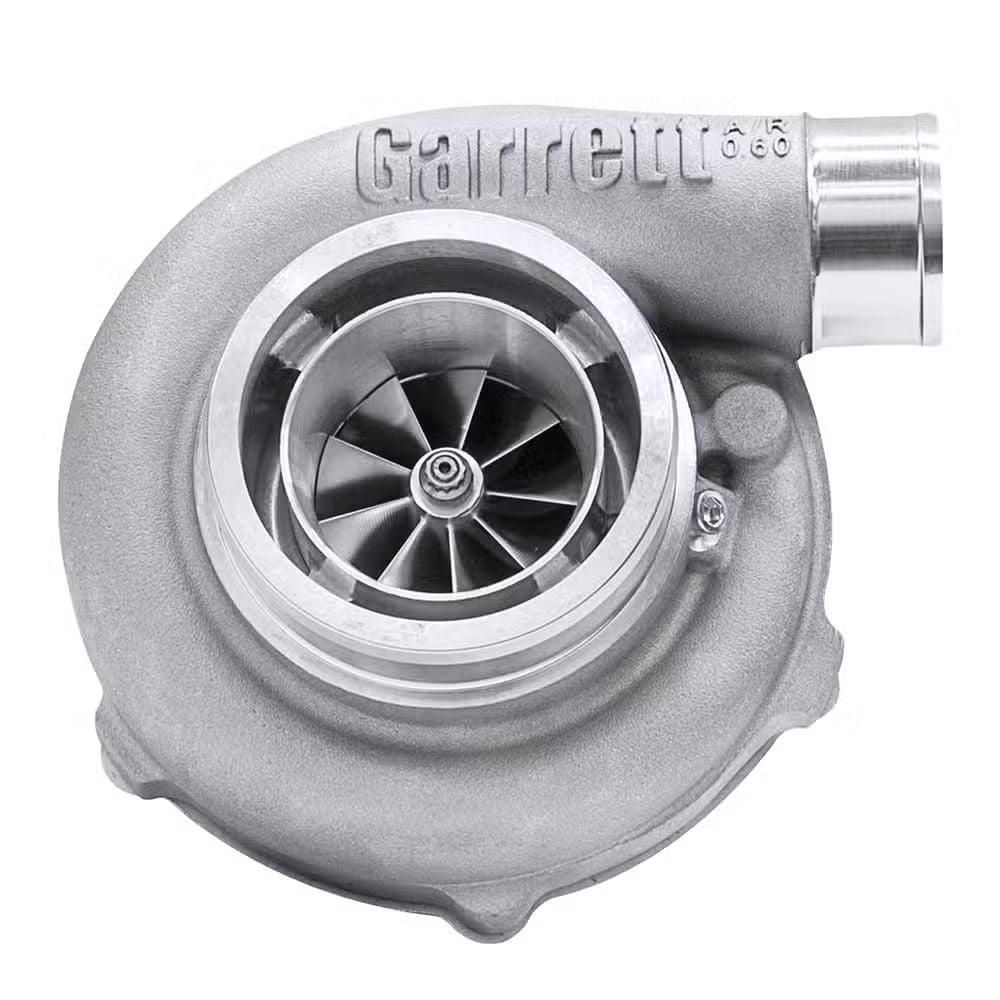

Garrett GTX3076R Gen II Assembly Kit, 1.01 A/R V-Band Free Float

Garrett’s GTX3076R Gen II Assembly Kit with the 1.01 A/R V-band housing is the high-flow end of the GTX30 Gen II range, built for engines that need the turbine side to keep up with a 58mm compressor rated to 750 horsepower. It combines super core 851154-5001S with GT30R turbine housing kit 740902-0034, a free-float V-band housing that runs with an external wastegate. The large housing suits a 3.0L engine or a high-revving build focused on peak power. On a 2.0L street engine it builds boost later than most owners want, and the 0.83 A/R makes more sense there. Garrett ships core and housing separately with a gasket kit.

Features

Gen II compressor wheel with a 58mm inducer, which Garrett says supports up to 20 percent more horsepower than Gen I
Fully machined speed sensor port, plugged from the factory and opened with a 5mm Allen key
1.01 A/R free-float housing with V-band joints at both ends, clockable to the manifold and downpipe

Specifications

Garrett turbo reference: 5855
Compressor inducer and exducer: 58mm and 76mm
Turbine inducer and exducer: 60mm and 55mm
Turbine housing: 1.01 A/R, V-band inlet and V-band outlet
Wastegate: External (free float)
Bearing system: 8mm dual ceramic ball bearing
Maximum turbocharger speed: 145,000 rpm
Rotation: Standard

What’s Included

GTX3076R Gen II super core 851154-5001S with compressor housing
GT30R turbine housing kit 740902-0034, 1.01 A/R, V-band inlet and V-band outlet
Gasket kit

Applications

The GTX3076R Gen II Assembly Kit is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.8L to 3.0L
Power range: 400 to 750 horsepower (Garrett rating)
Manifold requirement: V-band turbine flange with an external wastegate

Notes

Ships as an assembly kit: super core and turbine housing kit in separate boxes, bolted together by the installer
An external wastegate is required, because this turbine housing has no internal wastegate
The GT and GTX version of the Garrett speed sensor kit is sold separately
Garrett states that running above 145,000 rpm is at the owner’s risk and can cause damage and premature failure
More housing sizes for this core are in the GTX3076R Gen II range

Frequently Asked Questions

Is the GTX3076R Gen II Assembly Kit in 1.01 A/R too big for a 2.0L? For most street 2.0L engines, yes. The 1.01 A/R is the largest V-band housing Garrett lists for the GTX3076R Gen II Assembly Kit and delays boost compared with the 0.61 and 0.83 A/R options. It makes most sense on larger engines or high-rpm builds aimed near the 750 horsepower rating.
What does a larger A/R change? A/R describes the size of the turbine housing passage relative to its radius. A larger A/R slows exhaust gas less, so backpressure falls and the engine breathes better at high rpm, while the turbine needs more exhaust flow before it makes boost. Choose by displacement and the rpm the engine uses most.
What is included? The kit has three parts: the 851154-5001S GTX3076R Gen II super core with compressor housing, the 740902-0034 GT30R turbine housing kit in 1.01 A/R, and a gasket kit. Core and housing ship in separate boxes and are joined by the installer.
What engine displacement does Garrett recommend? Garrett lists the GTX3076R Gen II for engines from 1.8L to 3.0L, rated at 400 to 750 horsepower. The rating comes from compressor choke flow and is potential flywheel horsepower. With this large housing, the upper half of that displacement range is the natural fit.
Does it need a tune? Yes. Any change of turbocharger this size requires a calibration for fueling, ignition and boost control, and the external wastegate needs to be set to match. Garrett also recommends a speed sensor so the tuner can keep the shaft under 145,000 rpm, and the sensor kit is sold separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
