Does the GTX3071R Gen II Super Core include a turbine housing?

No. The GTX3071R Gen II Super Core is the center section with the Gen II compressor housing attached. Garrett offers GT30 turbine kits for it in free-float T3 or V-band inlet form and in internally wastegated T3 form, so the exhaust side can be matched to the manifold and wastegate plan.

What power will a GTX3071R Gen II support?

Garrett gives it 340 to 675 horsepower on engines from 1.8L to 3.0L. The rating is calculated from compressor choke flow and represents potential flywheel horsepower. Getting near the top takes the fuel system, intercooling, boost and calibration to match, and most street builds will sit well below it.

Should I pick the GTX3071R or the GTX3076R Gen II?

Both share the 60mm turbine and GT30 housings. The GTX3071R uses a 54mm compressor inducer and spools sooner, which suits engines aimed at 400 to 550 horsepower. The GTX3076R Gen II moves to a 58mm inducer and a 750 horsepower rating for builds that need more airflow at the top.

Can I keep my existing GT30 turbine housing?

Yes. Garrett states that all GTX Gen II turbochargers are compatible with existing GT and GTX turbine housing kits, and its GT30 kits are listed as interchangeable with GT, GTX Gen I and GTX Gen II 30 Series cores. The housing must be standard rotation to match this core.

Do I need a speed sensor with this core?

It is the safest way to run it. Garrett sets the maximum allowable speed at 140,000 rpm, and a sensor in the machined compressor housing port reports shaft speed so the tune stays inside the limit. The port is plugged from the factory, and the Garrett sensor kit is sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

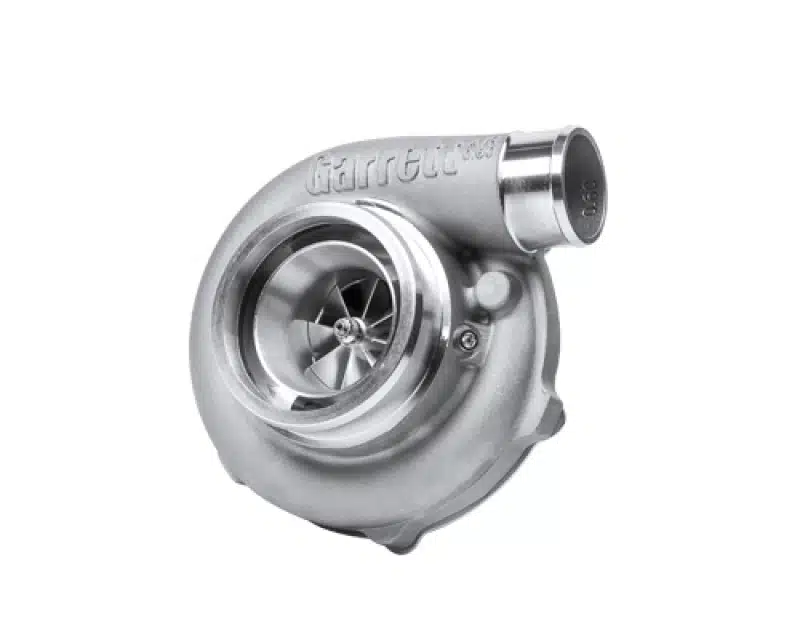

Garrett GTX3071R Gen II Super Core, 54mm Standard Rotation

Garrett’s GTX3071R Gen II Super Core is the smallest GTX30 Gen II core, a 54mm compressor inducer over a 60mm turbine, rated by Garrett at 340 to 675 horsepower on engines from 1.8L to 3.0L. It is the GT30 frame choice for a builder who values boost response: a 2.0L aiming for 400 to 500 horsepower, or a 3.0L six that wants a quick-spooling single. Past 600 horsepower the GTX3076R Gen II gives more compressor headroom from the same frame. This standard rotation core replaces Garrett’s earlier GTX3071R super core.

What Gen II Changed

The compressor wheel was redeveloped with computational fluid dynamics analysis, and Garrett says the update can deliver up to 20 percent more horsepower than the previous GTX3071R. A new high-flowing compressor housing matches the wheel, with machined inlet, outlet and ported shroud. Garrett runs the rotating group on an 8mm dual ceramic ball bearing cartridge to cut shaft motion.

Features

Machined speed sensor port, plugged from the factory
Works with all existing GT and GTX turbine housing kits, per Garrett
Outline interchangeable with the GT and GTX Gen I equivalents, keeping existing piping

Specifications

Garrett turbo reference: 5455
Compressor inducer and exducer: 54mm and 71mm
Turbine inducer and exducer: 60mm and 55mm
Bearing system: 8mm dual ceramic ball bearing
Maximum turbocharger speed: 140,000 rpm
Rotation: Standard

Applications

The GTX3071R Gen II Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.8L to 3.0L
Power range: 340 to 675 horsepower (Garrett rating)
Garrett GT30 free-float kits: T3 inlet in 0.63, 0.82 or 1.06 A/R; V-band inlet in 0.61, 0.83 or 1.01 A/R
Garrett GT30 wastegated kits: T3 inlet, 5-bolt outlet in 0.63, 0.82 or 1.06 A/R

Notes

The turbine housing is not included
The Garrett speed sensor kit is sold separately
Garrett states that running above 140,000 rpm is at the owner’s risk and can cause damage and premature failure
Turn 14 lists this part as replacing the earlier GTX3071R super core 836042-5002S
A reverse rotation GTX3071R Gen II is also listed

Frequently Asked Questions

Does the GTX3071R Gen II Super Core include a turbine housing? No. The GTX3071R Gen II Super Core is the center section with the Gen II compressor housing attached. Garrett offers GT30 turbine kits for it in free-float T3 or V-band inlet form and in internally wastegated T3 form, so the exhaust side can be matched to the manifold and wastegate plan.
What power will a GTX3071R Gen II support? Garrett gives it 340 to 675 horsepower on engines from 1.8L to 3.0L. The rating is calculated from compressor choke flow and represents potential flywheel horsepower. Getting near the top takes the fuel system, intercooling, boost and calibration to match, and most street builds will sit well below it.
Should I pick the GTX3071R or the GTX3076R Gen II? Both share the 60mm turbine and GT30 housings. The GTX3071R uses a 54mm compressor inducer and spools sooner, which suits engines aimed at 400 to 550 horsepower. The GTX3076R Gen II moves to a 58mm inducer and a 750 horsepower rating for builds that need more airflow at the top.
Can I keep my existing GT30 turbine housing? Yes. Garrett states that all GTX Gen II turbochargers are compatible with existing GT and GTX turbine housing kits, and its GT30 kits are listed as interchangeable with GT, GTX Gen I and GTX Gen II 30 Series cores. The housing must be standard rotation to match this core.
Do I need a speed sensor with this core? It is the safest way to run it. Garrett sets the maximum allowable speed at 140,000 rpm, and a sensor in the machined compressor housing port reports shaft speed so the tune stays inside the limit. The port is plugged from the factory, and the Garrett sensor kit is sold separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
