Why choose the T3 inlet version of the GTX3071R Gen II Assembly Kit?

Because of the manifold. The T3 flange is a common inlet on aftermarket tubular manifolds, so this GTX3071R Gen II Assembly Kit bolts to one without an adapter, and the V-band outlet gives a quick downpipe joint. Owners with a V-band manifold flange should look at the 0.61 or 0.83 A/R V-band versions instead.

How much power will the GTX3071R Gen II support?

Garrett publishes a range of 340 to 675 horsepower on engines from 1.8L to 3.0L. That figure comes from the choke flow of the compressor map and represents potential flywheel horsepower. The real number depends on boost, fuel, intercooling and the calibration written for the engine.

Does it need an external wastegate?

Yes. The 0.82 A/R T3 housing is free float, so it has no internal wastegate and boost control has to come from an external wastegate on the manifold. That is normal for tubular T3 manifolds, which usually carry a wastegate flange ahead of the turbine.

Can I add a speed sensor to the GTX3071R Gen II?

Yes. Its compressor housing has a fully machined speed sensor port, closed with a plug that comes out with a 5mm Allen key. Garrett lists 140,000 rpm as the maximum allowable shaft speed, and the GT and GTX speed sensor kit lets a tuner watch it.

What comes in the box?

Two boxes and a gasket kit. One holds the 851154-5002S GTX3071R Gen II super core with its compressor housing, the other the 740902-0008 GT30R turbine housing kit in 0.82 A/R with T3 inlet and V-band outlet. The owner assembles them before installation.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

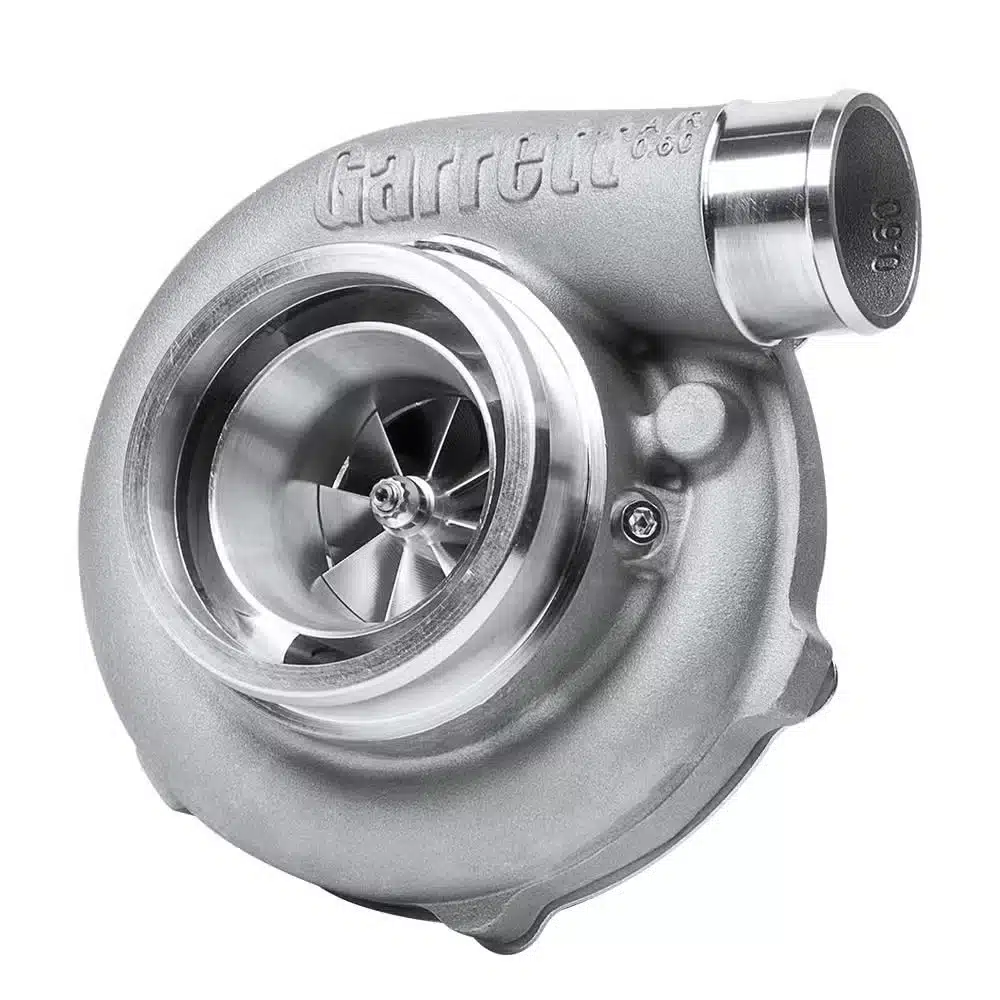

Garrett GTX3071R Gen II Assembly Kit, 0.82 A/R T3 Inlet V-Band Outlet

Garrett’s GTX3071R Gen II Assembly Kit in this configuration joins the 54mm Gen II super core to a GT30R turbine housing with a T3 inlet, V-band outlet and 0.82 A/R, set up free float for an external wastegate. Garrett rates the GTX3071R Gen II at 340 to 675 horsepower on 1.8L to 3.0L engines, and the T3 inlet makes it a direct partner for the many tubular manifolds built to that flange. The 0.82 A/R is the middle of the three T3 sizes Garrett lists, a balanced pick for a 2.0L to 2.5L engine. It is more turbocharger than a stock-power engine needs.

Features

Gen II compressor wheel with a 54mm inducer, which Garrett says supports up to 20 percent more horsepower than Gen I
Fully machined speed sensor port, plugged from the factory and opened with a 5mm Allen key
0.82 A/R free-float housing with a T3 inlet flange and V-band outlet

Specifications

Garrett turbo reference: 5455
Compressor inducer and exducer: 54mm and 71mm
Turbine inducer and exducer: 60mm and 55mm
Turbine housing: 0.82 A/R, T3 inlet and V-band outlet
Wastegate: External (free float)
Bearing system: 8mm dual ceramic ball bearing
Maximum turbocharger speed: 140,000 rpm
Rotation: Standard

What’s Included

GTX3071R Gen II super core 851154-5002S with compressor housing
GT30R turbine housing kit 740902-0008, 0.82 A/R, T3 inlet and V-band outlet
Gasket kit

Applications

The GTX3071R Gen II Assembly Kit is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.8L to 3.0L
Power range: 340 to 675 horsepower (Garrett rating)
Manifold requirement: T3 turbine flange with an external wastegate

Notes

Ships as an assembly kit: super core and turbine housing kit in separate boxes, bolted together by the installer
An external wastegate is required, because this turbine housing has no internal wastegate
The GT and GTX version of the Garrett speed sensor kit is sold separately
Garrett states that running above 140,000 rpm is at the owner’s risk and can cause damage and premature failure
More housing sizes for this core are in the GTX3071R Gen II range

Frequently Asked Questions

Why choose the T3 inlet version of the GTX3071R Gen II Assembly Kit? Because of the manifold. The T3 flange is a common inlet on aftermarket tubular manifolds, so this GTX3071R Gen II Assembly Kit bolts to one without an adapter, and the V-band outlet gives a quick downpipe joint. Owners with a V-band manifold flange should look at the 0.61 or 0.83 A/R V-band versions instead.
How much power will the GTX3071R Gen II support? Garrett publishes a range of 340 to 675 horsepower on engines from 1.8L to 3.0L. That figure comes from the choke flow of the compressor map and represents potential flywheel horsepower. The real number depends on boost, fuel, intercooling and the calibration written for the engine.
Does it need an external wastegate? Yes. The 0.82 A/R T3 housing is free float, so it has no internal wastegate and boost control has to come from an external wastegate on the manifold. That is normal for tubular T3 manifolds, which usually carry a wastegate flange ahead of the turbine.
Can I add a speed sensor to the GTX3071R Gen II? Yes. Its compressor housing has a fully machined speed sensor port, closed with a plug that comes out with a 5mm Allen key. Garrett lists 140,000 rpm as the maximum allowable shaft speed, and the GT and GTX speed sensor kit lets a tuner watch it.
What comes in the box? Two boxes and a gasket kit. One holds the 851154-5002S GTX3071R Gen II super core with its compressor housing, the other the 740902-0008 GT30R turbine housing kit in 0.82 A/R with T3 inlet and V-band outlet. The owner assembles them before installation.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
