Who is the 0.61 A/R GTX3071R Gen II Assembly Kit for?

The 0.61 A/R GTX3071R Gen II Assembly Kit suits smaller engines in the 1.8L to 3.0L range and builds that want boost early. The compact V-band housing raises exhaust velocity into the turbine, so the turbocharger responds sooner than with the 0.83 A/R, at the cost of more backpressure near redline.

Will this fit a V-band manifold?

Yes. The housing uses V-band connections at both the turbine inlet and outlet, so it needs a manifold with a V-band turbine flange and a V-band downpipe. Because it is free float, the manifold also needs an external wastegate to control boost.

What is inside the kit?

Garrett supplies the 851154-5002S GTX3071R Gen II super core, compressor housing included, and the 740902-0036 GT30R turbine housing kit in separate boxes, along with a gasket kit. The core replaces the earlier 836042-5002S, and the owner bolts the housing on before installation.

What did Gen II change on the GTX3071R?

Gen II updated the compressor aerodynamics, which Garrett says lets the turbocharger produce up to 20 percent more horsepower than the previous version, and added a fully machined speed sensor port. It runs on an 8mm dual ceramic ball bearing cartridge and stays outline interchangeable with the Gen I unit, so piping carries over.

Is a reverse-rotation version available?

Garrett lists a reverse-rotation GTX3071R Gen II super core, 844621-5003S, and reverse V-band housings in 0.61, 0.83 and 1.01 A/R for twin-turbo layouts. This kit is the standard-rotation version, so the reverse parts are a separate order. Check rotation before ordering a second turbocharger for a twin setup.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

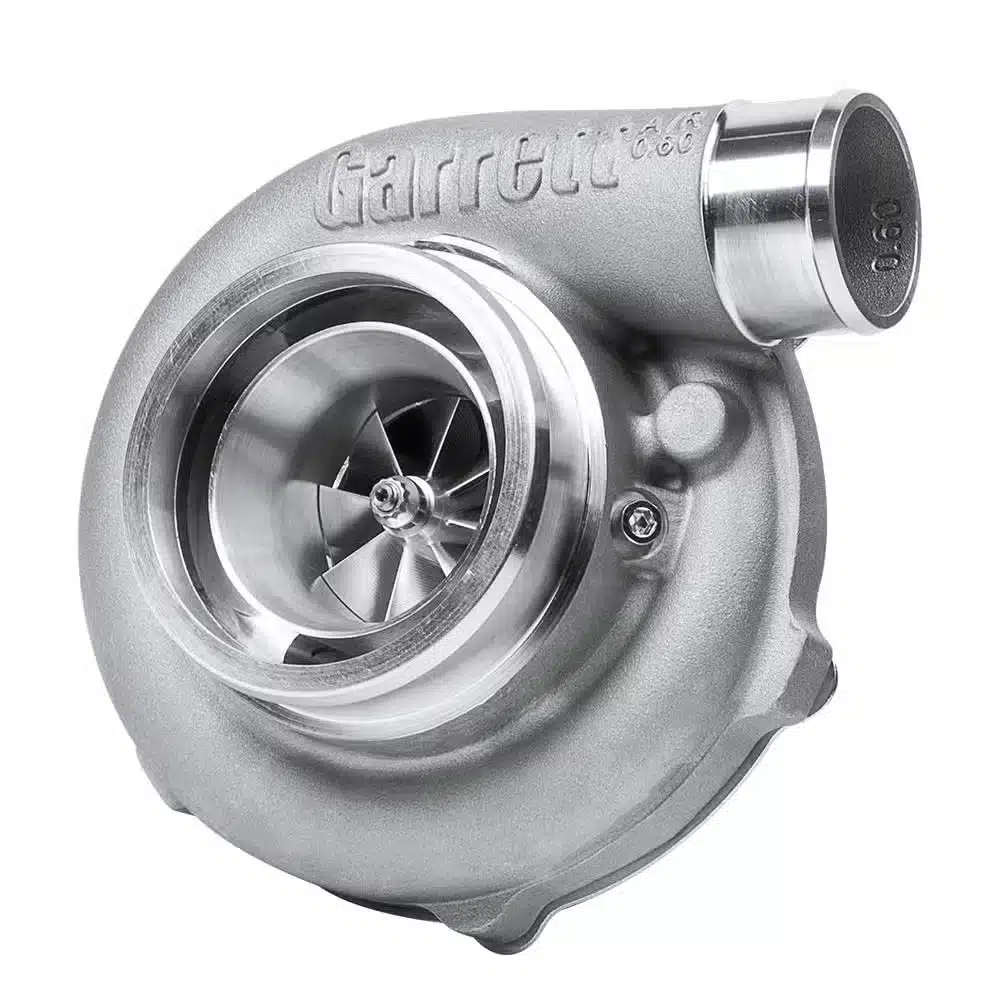

Garrett GTX3071R Gen II Assembly Kit, 0.61 A/R V-Band Free Float

Garrett’s GTX3071R Gen II Assembly Kit with the 0.61 A/R V-band housing is the quickest-spooling way to run Garrett’s 54mm GTX30 Gen II compressor, pairing super core 851154-5002S with GT30R turbine housing kit 740902-0036 for an external wastegate manifold. Garrett rates the core at 340 to 675 horsepower on 1.8L to 3.0L engines. The small V-band housing suits a 1.8L to 2.0L engine, or a street car that values midrange boost over a peak figure. On a 3.0L engine, or a build near 675 horsepower, the 0.61 A/R adds backpressure at high rpm, and the 0.83 A/R is the better partner.

Features

Gen II compressor wheel with a 54mm inducer, which Garrett says supports up to 20 percent more horsepower than Gen I
Fully machined speed sensor port, plugged from the factory and opened with a 5mm Allen key
0.61 A/R free-float housing with V-band joints at both ends, clockable to the manifold and downpipe

Specifications

Garrett turbo reference: 5455
Compressor inducer and exducer: 54mm and 71mm
Turbine inducer and exducer: 60mm and 55mm
Turbine housing: 0.61 A/R, V-band inlet and V-band outlet
Wastegate: External (free float)
Bearing system: 8mm dual ceramic ball bearing
Maximum turbocharger speed: 140,000 rpm
Rotation: Standard

What’s Included

GTX3071R Gen II super core 851154-5002S with compressor housing
GT30R turbine housing kit 740902-0036, 0.61 A/R, V-band inlet and V-band outlet
Gasket kit

Applications

The GTX3071R Gen II Assembly Kit is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.8L to 3.0L
Power range: 340 to 675 horsepower (Garrett rating)
Manifold requirement: V-band turbine flange with an external wastegate

Notes

Ships as an assembly kit: super core and turbine housing kit in separate boxes, bolted together by the installer
An external wastegate is required, because this turbine housing has no internal wastegate
The GT and GTX version of the Garrett speed sensor kit is sold separately
Garrett states that running above 140,000 rpm is at the owner’s risk and can cause damage and premature failure
More housing sizes for this core are in the GTX3071R Gen II range

Frequently Asked Questions

Who is the 0.61 A/R GTX3071R Gen II Assembly Kit for? The 0.61 A/R GTX3071R Gen II Assembly Kit suits smaller engines in the 1.8L to 3.0L range and builds that want boost early. The compact V-band housing raises exhaust velocity into the turbine, so the turbocharger responds sooner than with the 0.83 A/R, at the cost of more backpressure near redline.
Will this fit a V-band manifold? Yes. The housing uses V-band connections at both the turbine inlet and outlet, so it needs a manifold with a V-band turbine flange and a V-band downpipe. Because it is free float, the manifold also needs an external wastegate to control boost.
What is inside the kit? Garrett supplies the 851154-5002S GTX3071R Gen II super core, compressor housing included, and the 740902-0036 GT30R turbine housing kit in separate boxes, along with a gasket kit. The core replaces the earlier 836042-5002S, and the owner bolts the housing on before installation.
What did Gen II change on the GTX3071R? Gen II updated the compressor aerodynamics, which Garrett says lets the turbocharger produce up to 20 percent more horsepower than the previous version, and added a fully machined speed sensor port. It runs on an 8mm dual ceramic ball bearing cartridge and stays outline interchangeable with the Gen I unit, so piping carries over.
Is a reverse-rotation version available? Garrett lists a reverse-rotation GTX3071R Gen II super core, 844621-5003S, and reverse V-band housings in 0.61, 0.83 and 1.01 A/R for twin-turbo layouts. This kit is the standard-rotation version, so the reverse parts are a separate order. Check rotation before ordering a second turbocharger for a twin setup.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
