Why pair the GTX2867R Gen II Assembly Kit with the 0.72 A/R housing?

The 0.72 A/R is the larger V-band free-float housing Garrett lists for this core, and it lowers exhaust backpressure at high rpm. With the 50mm compressor of the GTX2867R Gen II Assembly Kit able to support up to 550 horsepower, the bigger housing helps the turbine side keep pace near the top of that range.

How much horsepower can the GTX2867R Gen II make?

Garrett rates it at 275 to 550 horsepower on engines from 1.4L to 2.5L. The figures are calculated from compressor choke flow and represent potential flywheel horsepower, so the actual result depends on the fuel system, intercooling, boost target and calibration of the engine.

Does the kit come assembled?

No. Garrett packs the super core, which includes the compressor housing, and the turbine housing kit in separate boxes with a gasket kit. The installer bolts them together and can clock the V-band housing to suit the manifold and downpipe at the same time.

Will my Gen I GTX2867R turbine housing fit this core?

Yes. Garrett states that all GTX Gen II turbochargers accept existing GT and GTX turbine housing kits, so a Gen I owner can keep a housing already on the car. The new compressor housing cannot take a Gen I compressor wheel, so the cold side is not mixable.

What else does the installation need?

An external wastegate on a V-band manifold, oil feed and drain lines, and a calibration for the new turbocharger. Garrett also recommends a speed sensor to keep the shaft under 165,000 rpm, and the GT and GTX sensor kit is sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

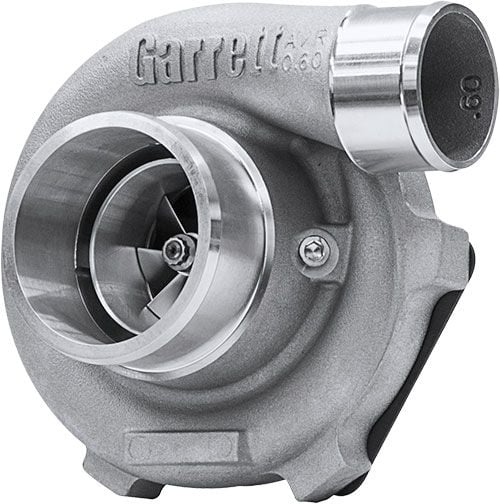

Garrett GTX2867R Gen II Assembly Kit, 0.72 A/R V-Band Free Float

Garrett’s GTX2867R Gen II Assembly Kit with the 0.72 A/R V-band housing gives this 50mm core the larger of its two free-float housings, which lets the turbine side keep up with a compressor rated to 550 horsepower. Garrett pairs the 849894-5002S super core with the 827690-0002 GT28R turbine housing kit, packed separately with a gasket kit for owner assembly. It suits a 2.0L to 2.5L engine on an external wastegate manifold aimed at 400 horsepower and above. On a mild build that will never use the top of the compressor map, the GTX2860R Gen II is the better-sized core.

Features

Gen II compressor wheel with a 50mm inducer, which Garrett says supports up to 20 percent more horsepower than Gen I
Fully machined speed sensor port, plugged from the factory and opened with a 5mm Allen key
0.72 A/R free-float housing with V-band joints at both ends, clockable to the manifold and downpipe

Specifications

Garrett turbo reference: 5047
Compressor inducer and exducer: 50mm and 67mm
Turbine inducer and exducer: 54mm and 47mm
Turbine housing: 0.72 A/R, V-band inlet and V-band outlet
Wastegate: External (free float)
Bearing system: 8mm dual ceramic ball bearing
Maximum turbocharger speed: 165,000 rpm
Rotation: Standard

What’s Included

GTX2867R Gen II super core 849894-5002S with compressor housing
GT28R turbine housing kit 827690-0002, 0.72 A/R, V-band inlet and V-band outlet
Gasket kit

Applications

The GTX2867R Gen II Assembly Kit is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.4L to 2.5L
Power range: 275 to 550 horsepower (Garrett rating)
Manifold requirement: V-band turbine flange with an external wastegate

Notes

Ships as an assembly kit: super core and turbine housing kit in separate boxes, bolted together by the installer
An external wastegate is required, because this turbine housing has no internal wastegate
The GT and GTX version of the Garrett speed sensor kit is sold separately
Garrett states that running above 165,000 rpm is at the owner’s risk and can cause damage and premature failure
More housing sizes for this core are in the GTX2867R Gen II range

Frequently Asked Questions

Why pair the GTX2867R Gen II Assembly Kit with the 0.72 A/R housing? The 0.72 A/R is the larger V-band free-float housing Garrett lists for this core, and it lowers exhaust backpressure at high rpm. With the 50mm compressor of the GTX2867R Gen II Assembly Kit able to support up to 550 horsepower, the bigger housing helps the turbine side keep pace near the top of that range.
How much horsepower can the GTX2867R Gen II make? Garrett rates it at 275 to 550 horsepower on engines from 1.4L to 2.5L. The figures are calculated from compressor choke flow and represent potential flywheel horsepower, so the actual result depends on the fuel system, intercooling, boost target and calibration of the engine.
Does the kit come assembled? No. Garrett packs the super core, which includes the compressor housing, and the turbine housing kit in separate boxes with a gasket kit. The installer bolts them together and can clock the V-band housing to suit the manifold and downpipe at the same time.
Will my Gen I GTX2867R turbine housing fit this core? Yes. Garrett states that all GTX Gen II turbochargers accept existing GT and GTX turbine housing kits, so a Gen I owner can keep a housing already on the car. The new compressor housing cannot take a Gen I compressor wheel, so the cold side is not mixable.
What else does the installation need? An external wastegate on a V-band manifold, oil feed and drain lines, and a calibration for the new turbocharger. Garrett also recommends a speed sensor to keep the shaft under 165,000 rpm, and the GT and GTX sensor kit is sold separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
