Does the GTX2867R Gen II Assembly Kit in 0.64 A/R have an internal wastegate?

Yes. This GTX2867R Gen II Assembly Kit uses the GT28R 0.64 A/R housing with an internal wastegate, a T25 inlet and a 5-bolt outlet. Boost is controlled at the turbine housing, so the manifold does not need a separate wastegate flange or an external gate.

Is the GTX2867R right for my engine if I only want 350 horsepower?

Garrett rates the GTX2867R Gen II at 275 to 550 horsepower, so 350 sits inside its range, but toward the bottom. The GTX2860R Gen II, rated 200 to 475 horsepower, has a smaller compressor and may be a closer fit for that goal. Compare both compressor maps against the engine airflow before buying.

What does the kit include?

Three items: the 849894-5002S GTX2867R Gen II super core with compressor housing, the 827690-0003 turbine housing kit, and a gasket kit. The core and housing come in separate boxes. This super core is listed as the replacement for the earlier 836040-5004S.

Which outlet does the downpipe need?

A 5-bolt outlet flange to match this housing, while the inlet uses a T25 flange. Garrett publishes a flange diagram for the GTX2860R and GTX2867R Gen II, and it is worth checking the downpipe and manifold against it before the turbocharger is assembled.

Can I fit a speed sensor?

Yes. Every GTX28 Gen II compressor housing has a fully machined speed sensor port, plugged at the factory and opened with a 5mm Allen key. With a maximum allowable speed of 165,000 rpm on this core, the GT and GTX speed sensor kit, sold separately, is a sensible addition.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

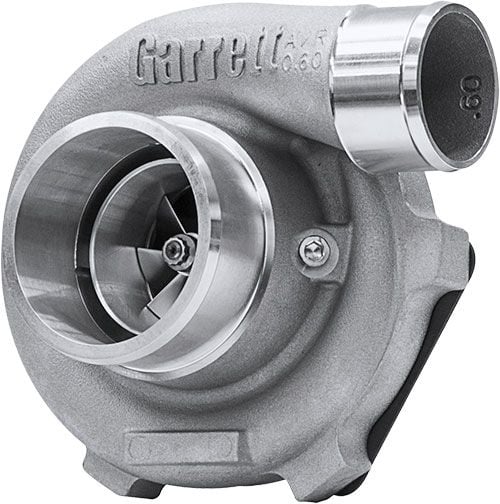

Garrett GTX2867R Gen II Assembly Kit, 0.64 A/R T25 Internal Wastegate

Garrett’s GTX2867R Gen II Assembly Kit in 0.64 A/R pairs the 50mm Gen II compressor with a GT28R turbine housing that has a T25 inlet, 5-bolt outlet and internal wastegate. It is aimed at the owner who wants more compressor than a GTX2860R offers but has a T25-flanged manifold and no place for an external gate. Garrett rates the core at 275 to 550 horsepower on 1.4L to 2.5L engines. The 0.64 A/R internally gated housing is a response-first choice, and builds chasing the top of that rating usually step to a larger housing. Garrett ships the core and housing separately with a gasket kit.

Features

Gen II compressor wheel with a 50mm inducer, which Garrett says supports up to 20 percent more horsepower than Gen I
Fully machined speed sensor port, plugged from the factory and opened with a 5mm Allen key
0.64 A/R housing with T25 inlet, 5-bolt outlet and internal wastegate for a factory-style manifold

Specifications

Garrett turbo reference: 5047
Compressor inducer and exducer: 50mm and 67mm
Turbine inducer and exducer: 54mm and 47mm
Turbine housing: 0.64 A/R, T25 inlet and 5-bolt outlet
Wastegate: Internal
Bearing system: 8mm dual ceramic ball bearing
Maximum turbocharger speed: 165,000 rpm
Rotation: Standard

What’s Included

GTX2867R Gen II super core 849894-5002S with compressor housing
GT28R turbine housing kit 827690-0003, 0.64 A/R, T25 inlet and 5-bolt outlet
Gasket kit

Applications

The GTX2867R Gen II Assembly Kit is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.4L to 2.5L
Power range: 275 to 550 horsepower (Garrett rating)
Manifold requirement: T25 turbine flange; internal wastegate, no external gate needed

Notes

Ships as an assembly kit: super core and turbine housing kit in separate boxes, bolted together by the installer
The GT and GTX version of the Garrett speed sensor kit is sold separately
Garrett states that running above 165,000 rpm is at the owner’s risk and can cause damage and premature failure
More housing sizes for this core are in the GTX2867R Gen II range

Frequently Asked Questions

Does the GTX2867R Gen II Assembly Kit in 0.64 A/R have an internal wastegate? Yes. This GTX2867R Gen II Assembly Kit uses the GT28R 0.64 A/R housing with an internal wastegate, a T25 inlet and a 5-bolt outlet. Boost is controlled at the turbine housing, so the manifold does not need a separate wastegate flange or an external gate.
Is the GTX2867R right for my engine if I only want 350 horsepower? Garrett rates the GTX2867R Gen II at 275 to 550 horsepower, so 350 sits inside its range, but toward the bottom. The GTX2860R Gen II, rated 200 to 475 horsepower, has a smaller compressor and may be a closer fit for that goal. Compare both compressor maps against the engine airflow before buying.
What does the kit include? Three items: the 849894-5002S GTX2867R Gen II super core with compressor housing, the 827690-0003 turbine housing kit, and a gasket kit. The core and housing come in separate boxes. This super core is listed as the replacement for the earlier 836040-5004S.
Which outlet does the downpipe need? A 5-bolt outlet flange to match this housing, while the inlet uses a T25 flange. Garrett publishes a flange diagram for the GTX2860R and GTX2867R Gen II, and it is worth checking the downpipe and manifold against it before the turbocharger is assembled.
Can I fit a speed sensor? Yes. Every GTX28 Gen II compressor housing has a fully machined speed sensor port, plugged at the factory and opened with a 5mm Allen key. With a maximum allowable speed of 165,000 rpm on this core, the GT and GTX speed sensor kit, sold separately, is a sensible addition.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
