What is the difference between the GTX2867R and the GTX2860R Gen II?

The compressor. The GTX2867R Gen II uses a 50mm inducer and 67mm exducer wheel, against 46mm and 60mm on the GTX2860R Gen II, while both share the 54mm turbine. Garrett rates the GTX2867R at 275 to 550 horsepower, so it suits builds that have outgrown the smaller core.

What do I get in the GTX2867R Gen II Assembly Kit?

The GTX2867R Gen II Assembly Kit contains the 849894-5002S super core with compressor housing, the 827690-0001 GT28R turbine housing kit in 0.57 A/R with V-band inlet and outlet, and a gasket kit. The core and housing ship in separate boxes and are assembled by the owner.

Is 0.57 A/R too small for this core?

It depends on the goal. The 0.57 A/R gives the quickest boost of the four housings Garrett lists, which suits a street engine that values response over peak numbers. Builds aimed at the upper end of the 550 horsepower rating usually move to the 0.72 A/R for lower backpressure at high rpm.

What maximum shaft speed does Garrett allow?

Garrett sets 165,000 rpm as the maximum allowable speed for the GTX2867R Gen II, and running faster is at the risk of the owner and can cause damage and premature failure. A speed sensor in the machined compressor housing port is the way to verify it, and the sensor kit is sold separately.

Do I need an external wastegate?

Yes. This 0.57 A/R housing is free float, with no internal wastegate, so the manifold must carry an external wastegate to control boost. A V-band turbine inlet flange is also needed on the manifold to mate with the housing, along with a V-band downpipe at the outlet.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

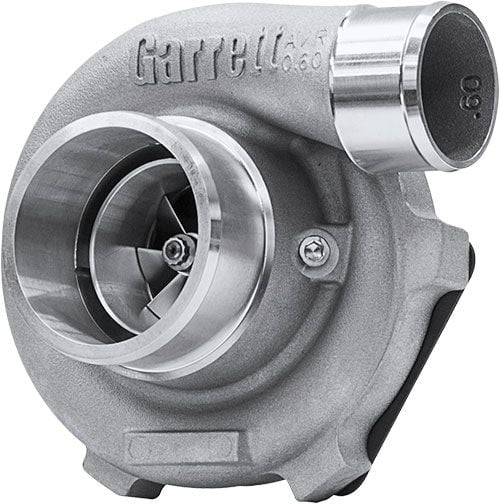

Garrett GTX2867R Gen II Assembly Kit, 0.57 A/R V-Band Free Float

Garrett’s GTX2867R Gen II Assembly Kit puts the larger 50mm compressor of the GTX28 Gen II family on the same 54mm turbine wheel as the GTX2860R, here paired with the 0.57 A/R GT28R V-band housing for an external wastegate. Garrett rates it at 275 to 550 horsepower on 1.4L to 2.5L engines. The small 0.57 A/R is an unusual partner for that compressor: it keeps response sharp on a 1.8L or 2.0L engine, but it can limit exhaust flow at high rpm before the compressor reaches its own limit, so a build chasing 550 horsepower should look at the 0.72 A/R. The super core and housing kit ship separately with a gasket kit.

Features

Gen II compressor wheel with a 50mm inducer, which Garrett says supports up to 20 percent more horsepower than Gen I
Fully machined speed sensor port, plugged from the factory and opened with a 5mm Allen key
0.57 A/R free-float housing with V-band joints at both ends, clockable to the manifold and downpipe

Specifications

Garrett turbo reference: 5047
Compressor inducer and exducer: 50mm and 67mm
Turbine inducer and exducer: 54mm and 47mm
Turbine housing: 0.57 A/R, V-band inlet and V-band outlet
Wastegate: External (free float)
Bearing system: 8mm dual ceramic ball bearing
Maximum turbocharger speed: 165,000 rpm
Rotation: Standard

What’s Included

GTX2867R Gen II super core 849894-5002S with compressor housing
GT28R turbine housing kit 827690-0001, 0.57 A/R, V-band inlet and V-band outlet
Gasket kit

Applications

The GTX2867R Gen II Assembly Kit is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.4L to 2.5L
Power range: 275 to 550 horsepower (Garrett rating)
Manifold requirement: V-band turbine flange with an external wastegate

Notes

Ships as an assembly kit: super core and turbine housing kit in separate boxes, bolted together by the installer
An external wastegate is required, because this turbine housing has no internal wastegate
The GT and GTX version of the Garrett speed sensor kit is sold separately
Garrett states that running above 165,000 rpm is at the owner’s risk and can cause damage and premature failure
More housing sizes for this core are in the GTX2867R Gen II range

Frequently Asked Questions

What is the difference between the GTX2867R and the GTX2860R Gen II? The compressor. The GTX2867R Gen II uses a 50mm inducer and 67mm exducer wheel, against 46mm and 60mm on the GTX2860R Gen II, while both share the 54mm turbine. Garrett rates the GTX2867R at 275 to 550 horsepower, so it suits builds that have outgrown the smaller core.
What do I get in the GTX2867R Gen II Assembly Kit? The GTX2867R Gen II Assembly Kit contains the 849894-5002S super core with compressor housing, the 827690-0001 GT28R turbine housing kit in 0.57 A/R with V-band inlet and outlet, and a gasket kit. The core and housing ship in separate boxes and are assembled by the owner.
Is 0.57 A/R too small for this core? It depends on the goal. The 0.57 A/R gives the quickest boost of the four housings Garrett lists, which suits a street engine that values response over peak numbers. Builds aimed at the upper end of the 550 horsepower rating usually move to the 0.72 A/R for lower backpressure at high rpm.
What maximum shaft speed does Garrett allow? Garrett sets 165,000 rpm as the maximum allowable speed for the GTX2867R Gen II, and running faster is at the risk of the owner and can cause damage and premature failure. A speed sensor in the machined compressor housing port is the way to verify it, and the sensor kit is sold separately.
Do I need an external wastegate? Yes. This 0.57 A/R housing is free float, with no internal wastegate, so the manifold must carry an external wastegate to control boost. A V-band turbine inlet flange is also needed on the manifold to mate with the housing, along with a V-band downpipe at the outlet.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
