Is this the GT3582R Super Core Garrett lists?

Yes. Garrett publishes 836033-5002S as the supercore part number on its GT3582R page, with a 61mm compressor inducer, 0.70 A/R compressor housing and 68mm turbine inducer. Turn 14 adds that it is the ported shroud version built on CHRA 836005-0003.

What horsepower is the GT3582R rated for?

Garrett gives the GT3582R Super Core a rating of 400 to 675 horsepower on engines from 2.0L to 4.5L. The number is calculated from compressor choke flow and stands for potential flywheel horsepower. Supporting fuel, intercooling and a proper calibration are what turn that potential into a result.

What does the ported shroud do?

Garrett describes its ported shroud designs as a way to improve surge resistance, so the compressor can hold boost at lower airflow without surging. Turn 14 identifies this GT3582R core as the ported shroud part, while Garrett does not describe the shroud on its GT3582R page.

Will my GT35 turbine housing bolt on?

If it is a Garrett GT35 kit, yes. Garrett lists T3, T4 and V-band inlet free-float housings and two wastegated assemblies for the GT3582R, and states the GT35 kits interchange with GT, GTX Gen I and GTX Gen II 35 Series cores. Rotation must match as well.

GT3582R or GTX3582R Gen II for a new build?

The GT3582R keeps the cast GT Series compressor wheel and is a direct rebuild part. The GTX3582R Gen II has a 66mm machined Gen II wheel and Garrett rates it at up to 900 horsepower on the same GT35 housings, so a new build chasing more than 650 horsepower should lean toward the GTX.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

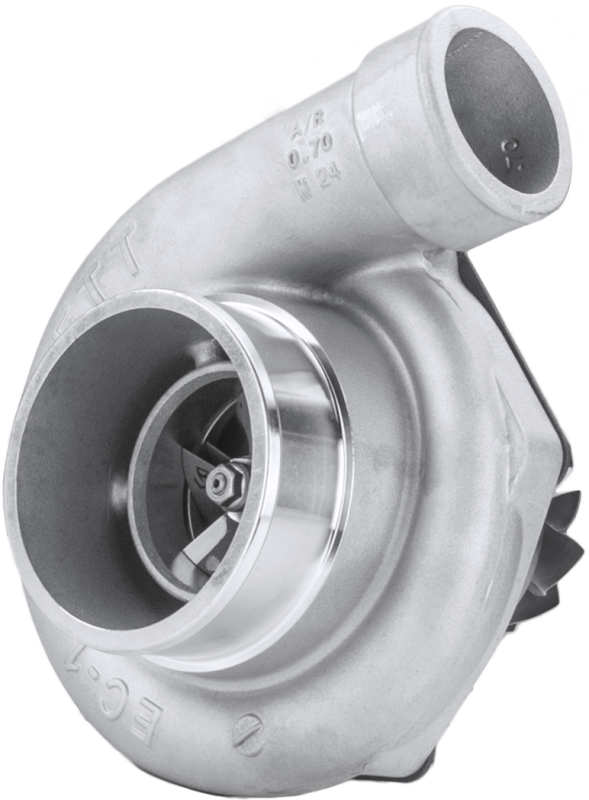

Garrett GT3582R Super Core, Ported Shroud

Garrett’s GT3582R Super Core, part 836033-5002S, is the supercore Garrett itself lists for the GT3582R, its mid frame GT Series turbocharger rated at 400 to 675 horsepower on 2.0L to 4.5L engines. Turn 14 describes it as the ported shroud version built on CHRA 836005-0003. The 61mm compressor and 68mm, 84 trim turbine make it a strong match for a 2.5L to 3.5L engine targeting 550 to 650 horsepower with a T3, T4 or V-band GT35 housing. For a street engine that rarely sees full boost, a GT30 frame core will be easier to live with.

GT35 Housing Options

Garrett pairs this core with a wide spread of GT35 turbine kits: free-float housings with T3 or T4 inlets in 0.63, 0.82 and 1.06 A/R, V-band inlet housings in 0.61, 0.83 and 1.01 A/R, and two internally wastegated assemblies. Garrett states those kits are interchangeable with GT, GTX Gen I and GTX Gen II 35 Series cores, so the housing stays useful if the core is upgraded later.

Features

The supercore part number Garrett publishes for the GT3582R
Ported shroud compressor housing, as described by Turn 14
Water-cooled CHRA with a ball bearing configuration

Specifications

Compressor inducer and exducer: 61mm and 82mm
Compressor trim: 56
Compressor housing A/R: 0.70
Turbine inducer and exducer: 68mm and 62mm
Turbine trim: 84
Bearing system: Ball bearing, water cooled

Applications

The GT3582R Super Core is not vehicle specific. Garrett sizes it this way:

Engine displacement: 2.0L to 4.5L
Power range: 400 to 675 horsepower (Garrett rating)
Garrett GT35 turbine kits: Free float in T3, T4 or V-band inlet, or internally wastegated in 0.63 or 0.82 A/R

Notes

The turbine housing is not included
Garrett’s wastegated GT35 assemblies do not include bolts, clamps or actuator
Garrett’s GTX3582R Gen II uses the same GT35 turbine kits with a newer compressor wheel

Frequently Asked Questions

Is this the GT3582R Super Core Garrett lists? Yes. Garrett publishes 836033-5002S as the supercore part number on its GT3582R page, with a 61mm compressor inducer, 0.70 A/R compressor housing and 68mm turbine inducer. Turn 14 adds that it is the ported shroud version built on CHRA 836005-0003.
What horsepower is the GT3582R rated for? Garrett gives the GT3582R Super Core a rating of 400 to 675 horsepower on engines from 2.0L to 4.5L. The number is calculated from compressor choke flow and stands for potential flywheel horsepower. Supporting fuel, intercooling and a proper calibration are what turn that potential into a result.
What does the ported shroud do? Garrett describes its ported shroud designs as a way to improve surge resistance, so the compressor can hold boost at lower airflow without surging. Turn 14 identifies this GT3582R core as the ported shroud part, while Garrett does not describe the shroud on its GT3582R page.
Will my GT35 turbine housing bolt on? If it is a Garrett GT35 kit, yes. Garrett lists T3, T4 and V-band inlet free-float housings and two wastegated assemblies for the GT3582R, and states the GT35 kits interchange with GT, GTX Gen I and GTX Gen II 35 Series cores. Rotation must match as well.
GT3582R or GTX3582R Gen II for a new build? The GT3582R keeps the cast GT Series compressor wheel and is a direct rebuild part. The GTX3582R Gen II has a 66mm machined Gen II wheel and Garrett rates it at up to 900 horsepower on the same GT35 housings, so a new build chasing more than 650 horsepower should lean toward the GTX.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
