How does this GT3582R Super Core differ from 836033-5002S?

Turn 14 lists 836033-5002S with a ported shroud and CHRA 836000-0003, while this GT3582R Super Core, 836033-5001S, carries no such description. Garrett publishes only 836033-5002S on its GT3582R page, so BA recommends confirming the part number on the existing core before choosing between them.

How much power can a GT3582R make?

Garrett rates the GT3582R at 400 to 675 horsepower on 2.0L to 4.5L engines, based on choke flow from the compressor map. That makes it a potential flywheel figure. Fuel, boost pressure, the turbine housing choice and the calibration decide where a given engine lands.

Which turbine housings fit a GT3582R?

Garrett lists GT35 free-float kits with T3 or T4 inlets in 0.63, 0.82 and 1.06 A/R, V-band inlet kits in 0.61, 0.83 and 1.01 A/R, and two internally wastegated assemblies in 0.63 and 0.82 A/R. Garrett states the GT35 kits also fit GTX Gen I and Gen II 35 Series cores.

Is the GT3582R small frame or mid frame?

Garrett calls the GT3582R a mid frame turbocharger. Turn 14 labels this listing small frame, but BA follows Garrett. The practical point is that it uses GT35 turbine housings, not the smaller GT28 or GT30 housings, so plan the manifold flange around the GT35 range.

Does the GT3582R need water lines?

Yes. Garrett specifies a water-cooled CHRA with a ball bearing configuration for the GT3582R, so coolant feed and return lines are needed along with the oil supply and drain. Skipping the coolant lines raises bearing temperatures after shutdown and shortens cartridge life.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

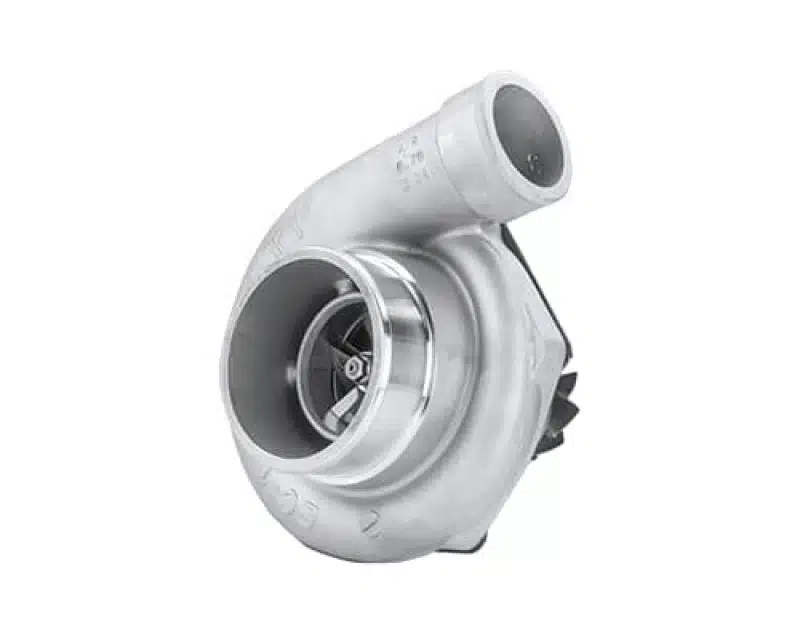

Garrett GT3582R Super Core, 61mm GT Series

Garrett’s GT3582R Super Core is a GT Series ball bearing center section with a 61mm compressor inducer and a 68mm turbine, from the turbocharger Garrett rates at 400 to 675 horsepower on engines from 2.0L to 4.5L. This part number is the one Turn 14 lists without a ported shroud description. It belongs on a well-built 2.0L to 3.0L engine making 500 horsepower or more, or a mildly tuned V6; on a lightly modified engine under 400 horsepower it will feel lazy. Garrett classes the GT3582R as a mid frame turbocharger.

Features

61mm compressor inducer and 82mm exducer with original GT Series aerodynamics
Ball bearing configuration in a water-cooled center housing
Takes GT35 turbine kits with T3, T4 or V-band inlets

Specifications

Compressor inducer and exducer: 61mm and 82mm
Compressor trim: 56
Compressor housing A/R: 0.70
Turbine inducer and exducer: 68mm and 62mm
Turbine trim: 84
Bearing system: Ball bearing, water cooled

Applications

The GT3582R Super Core is not vehicle specific. Garrett rates the GT3582R by engine and output:

Engine displacement: 2.0L to 4.5L
Power range: 400 to 675 horsepower (Garrett rating)
Garrett GT35 free-float kits: T3 or T4 inlet in 0.63, 0.82 or 1.06 A/R; V-band inlet in 0.61, 0.83 or 1.01 A/R
Garrett GT35 wastegated kits: 0.63 and 0.82 A/R with 5-bolt outlet

Notes

The turbine housing is not included
Garrett’s GT3582R page lists only 836033-5002S as the supercore; confirm this part number against the core being replaced before ordering
The ported shroud GT3582R super core is also listed
A free-float GT35 housing needs an external wastegate

Frequently Asked Questions

How does this GT3582R Super Core differ from 836033-5002S? Turn 14 lists 836033-5002S with a ported shroud and CHRA 836000-0003, while this GT3582R Super Core, 836033-5001S, carries no such description. Garrett publishes only 836033-5002S on its GT3582R page, so BA recommends confirming the part number on the existing core before choosing between them.
How much power can a GT3582R make? Garrett rates the GT3582R at 400 to 675 horsepower on 2.0L to 4.5L engines, based on choke flow from the compressor map. That makes it a potential flywheel figure. Fuel, boost pressure, the turbine housing choice and the calibration decide where a given engine lands.
Which turbine housings fit a GT3582R? Garrett lists GT35 free-float kits with T3 or T4 inlets in 0.63, 0.82 and 1.06 A/R, V-band inlet kits in 0.61, 0.83 and 1.01 A/R, and two internally wastegated assemblies in 0.63 and 0.82 A/R. Garrett states the GT35 kits also fit GTX Gen I and Gen II 35 Series cores.
Is the GT3582R small frame or mid frame? Garrett calls the GT3582R a mid frame turbocharger. Turn 14 labels this listing small frame, but BA follows Garrett. The practical point is that it uses GT35 turbine housings, not the smaller GT28 or GT30 housings, so plan the manifold flange around the GT35 range.
Does the GT3582R need water lines? Yes. Garrett specifies a water-cooled CHRA with a ball bearing configuration for the GT3582R, so coolant feed and return lines are needed along with the oil supply and drain. Skipping the coolant lines raises bearing temperatures after shutdown and shortens cartridge life.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
