What makes this GT3071R Super Core different from the other two?

The connection size and the heat shroud. Garrett lists this GT3071R Super Core, 836028-5005S, with a 102mm hose and a stepped heat shroud. The 836028-5002S also has a 102mm hose but a square shroud, and the 836028-5001S pairs a 69.85mm hose with a square shroud. Garrett lists the same wheel dimensions for all three.

How much horsepower will a GT3071R make?

Garrett rates the GT3071R at 280 to 480 horsepower on engines from 2.5L to 3.5L. Garrett calculates that rating from the choke flow of the compressor map, so it is potential flywheel horsepower, and the real number depends on fuel, boost, intercooling and the tune.

Which turbine housings fit the GT3071R?

Garrett lists GT30 free-float kits with a T3 inlet in 0.63, 0.82 and 1.06 A/R, V-band inlet kits in 0.61, 0.83 and 1.01 A/R, and internally wastegated T3 kits in 0.63, 0.82 and 1.06 A/R. Garrett states the GT30 kits fit GT, GTX Gen I and GTX Gen II 30 Series cores.

Turn 14 calls this a 2.75 inch inlet. Which is correct?

BA follows Garrett. Garrett lists 836028-5005S with a 102mm hose and stepped heat shroud, while the 69.85mm hose, about 2.75 inches, belongs to 836028-5001S. If the existing compressor plumbing needs the smaller connection, ask BA to confirm the part number before ordering.

Is the GT3071R a good choice for a new build today?

It still works well on a 2.5L to 3.5L engine aimed at 350 to 450 horsepower, especially to replace a worn core and keep existing housings. A new build with no parts on hand may get more from a GTX3071R Gen II, which Garrett rates higher on the same GT30 turbine kits.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

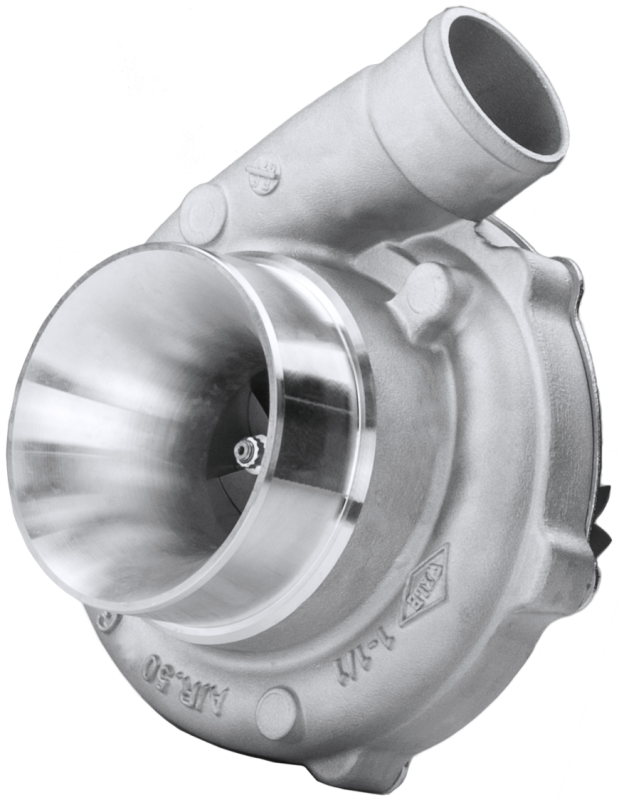

Garrett GT3071R Super Core, 102mm Hose, Stepped Heat Shroud

Garrett’s GT3071R Super Core with a 102mm hose connection and stepped heat shroud is the GT Series GT30 center section paired with a 53mm compressor, which Garrett rates at 280 to 480 horsepower on engines from 2.5L to 3.5L. Garrett lists three GT3071R super cores, and this is the one with the stepped shroud; the others use a square shroud. It is a good fit for a six-cylinder or a large four that needs quick boost and modest top end. Builders aiming beyond 500 horsepower should step to the GT3076R or a GTX30 Gen II core.

GT Series Construction

The GT3071R uses Garrett’s original GT Series aerodynamics, with a cast compressor wheel that Garrett describes as built for durability and longevity. The rotating group runs on ball bearings in a water-cooled CHRA. Because the core is a GT30 frame, it accepts the same GT30 turbine kits as Garrett’s GTX Gen I and Gen II 30 Series cores.

Features

102mm hose connection with a stepped heat shroud, per Garrett’s reference table
53mm compressor inducer in a 0.50 A/R compressor housing
Takes GT30 free-float and internally wastegated turbine kits

Specifications

Compressor inducer and exducer: 53mm and 71mm
Compressor housing A/R: 0.50
Turbine inducer and exducer: 60mm and 55mm
Turbine trim: 84
Hose and heat shroud: 102mm hose, stepped heat shroud
Bearing system: Ball bearing, water cooled

Applications

The GT3071R Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.5L to 3.5L
Power range: 280 to 480 horsepower (Garrett rating)
Garrett GT30 free-float kits: T3 inlet in 0.63, 0.82 or 1.06 A/R; V-band inlet in 0.61, 0.83 or 1.01 A/R
Garrett GT30 wastegated kits: T3 inlet, 5-bolt outlet in 0.63, 0.82 or 1.06 A/R

Notes

The turbine housing is not included
Garrett’s wastegated GT30 turbine assemblies do not include bolts, clamps or an actuator
Turn 14 describes this part as a 2.75in inlet core; Garrett lists 836028-5005S with a 102mm hose and stepped heat shroud, and Garrett’s description is used here
Other GT3071R super cores are listed with a square heat shroud

Frequently Asked Questions

What makes this GT3071R Super Core different from the other two? The connection size and the heat shroud. Garrett lists this GT3071R Super Core, 836028-5005S, with a 102mm hose and a stepped heat shroud. The 836028-5002S also has a 102mm hose but a square shroud, and the 836028-5001S pairs a 69.85mm hose with a square shroud. Garrett lists the same wheel dimensions for all three.
How much horsepower will a GT3071R make? Garrett rates the GT3071R at 280 to 480 horsepower on engines from 2.5L to 3.5L. Garrett calculates that rating from the choke flow of the compressor map, so it is potential flywheel horsepower, and the real number depends on fuel, boost, intercooling and the tune.
Which turbine housings fit the GT3071R? Garrett lists GT30 free-float kits with a T3 inlet in 0.63, 0.82 and 1.06 A/R, V-band inlet kits in 0.61, 0.83 and 1.01 A/R, and internally wastegated T3 kits in 0.63, 0.82 and 1.06 A/R. Garrett states the GT30 kits fit GT, GTX Gen I and GTX Gen II 30 Series cores.
Turn 14 calls this a 2.75 inch inlet. Which is correct? BA follows Garrett. Garrett lists 836028-5005S with a 102mm hose and stepped heat shroud, while the 69.85mm hose, about 2.75 inches, belongs to 836028-5001S. If the existing compressor plumbing needs the smaller connection, ask BA to confirm the part number before ordering.
Is the GT3071R a good choice for a new build today? It still works well on a 2.5L to 3.5L engine aimed at 350 to 450 horsepower, especially to replace a worn core and keep existing housings. A new build with no parts on hand may get more from a GTX3071R Gen II, which Garrett rates higher on the same GT30 turbine kits.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
