What power can the GT2871R Turbocharger make?

Garrett rates the GT2871R Turbocharger at 280 to 475 horsepower on 1.8L to 3.0L engines. The figure is calculated from the choke flow of the compressor map and represents potential flywheel horsepower, so fuel, boost and the calibration determine what a given engine makes.

Which actuator comes on this GT2871R?

Turn 14 lists this part number with the 480009-6 high boost actuator. Garrett lists 480009-0006 in its catalogue as a 1.0 bar actuator, against 0.5 bar for the 480009-0009 low boost unit. A stiffer spring helps the internal wastegate hold higher boost targets.

How does the GT2871R compare with the GT2860RS?

Both share the 54mm by 47mm GT28 turbine wheel. The GT2871R has a 53mm compressor inducer against 47mm on the GT2860RS, raising the Garrett rating to 280 to 475 horsepower from 250 to 360. The GT2860RS spools sooner on smaller engines.

Is 0.86 A/R the right housing?

It suits engines at the larger end of the range or builds aiming at the top of the rating, since the bigger housing flows more exhaust at high rpm. Garrett also lists a 0.64 A/R GT2871R, which builds boost earlier on smaller or street-driven engines.

Is the GT2871R oil and water cooled?

Yes. Garrett lists the GT2871R with a dual ceramic ball bearing cartridge in an oil and water cooled center housing. The installation needs an oil feed and drain plus a coolant feed and return, along with gaskets and flanges that suit the engine.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

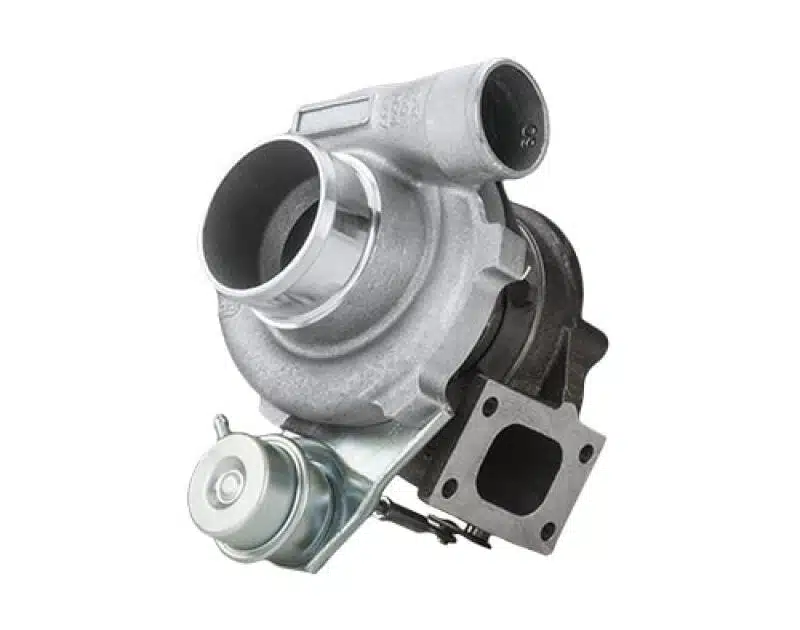

Garrett GT2871R Turbocharger, 0.86 A/R Internal Wastegate

Garrett’s GT2871R Turbocharger in 0.86 A/R form is the larger-compressor GT28 turbo, a 53mm by 71mm wheel on the 54mm GT28 turbine, supplied complete with a 0.86 A/R internally wastegated housing and actuator. Turn 14 lists it with actuator 480009-6, which Garrett identifies in its catalogue as a 1.0 bar unit. Garrett rates the GT2871R at 280 to 475 horsepower on 1.8L to 3.0L engines. It suits a 2.0L to 2.5L build aiming at 400 horsepower or more; a mild engine will spool a GT2860RS sooner.

Construction

Garrett lists the GT2871R with original GT Series aerodynamics, a cast compressor wheel and a dual ceramic ball bearing cartridge in an oil and water cooled center housing. Garrett also offers non-wastegated turbine housing options for the GT2871R.

Features

53mm compressor inducer, larger than the 47mm wheel in the GT2860R and GT2860RS
0.86 A/R internally wastegated turbine housing with actuator
Higher spring actuator, 480009-6 per Turn 14, for holding more boost

Specifications

Compressor inducer and exducer: 53mm and 71mm
Compressor trim and A/R: 56 and 0.60
Turbine inducer and exducer: 54mm and 47mm
Turbine trim and A/R: 76 and 0.86
Wastegate: Internal
Actuator: 480009-6, 1.0 bar (Turn 14 and Garrett catalogue)
Bearing system: Dual ceramic ball bearing

Applications

The GT2871R Turbocharger is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.8L to 3.0L
Power range: 280 to 475 horsepower (Garrett rating)

Notes

Garrett’s GT28 turbine kit table lists its 0.86 A/R wastegated housing with a T25 inlet and 5-bolt outlet
Other GT2871R configurations are available
Garrett publishes speed sensor installation instructions for this turbo; the Garrett speed sensor kit is sold separately
Garrett does not publish a maximum turbocharger speed for the GT2871R

Frequently Asked Questions

What power can the GT2871R Turbocharger make? Garrett rates the GT2871R Turbocharger at 280 to 475 horsepower on 1.8L to 3.0L engines. The figure is calculated from the choke flow of the compressor map and represents potential flywheel horsepower, so fuel, boost and the calibration determine what a given engine makes.
Which actuator comes on this GT2871R? Turn 14 lists this part number with the 480009-6 high boost actuator. Garrett lists 480009-0006 in its catalogue as a 1.0 bar actuator, against 0.5 bar for the 480009-0009 low boost unit. A stiffer spring helps the internal wastegate hold higher boost targets.
How does the GT2871R compare with the GT2860RS? Both share the 54mm by 47mm GT28 turbine wheel. The GT2871R has a 53mm compressor inducer against 47mm on the GT2860RS, raising the Garrett rating to 280 to 475 horsepower from 250 to 360. The GT2860RS spools sooner on smaller engines.
Is 0.86 A/R the right housing? It suits engines at the larger end of the range or builds aiming at the top of the rating, since the bigger housing flows more exhaust at high rpm. Garrett also lists a 0.64 A/R GT2871R, which builds boost earlier on smaller or street-driven engines.
Is the GT2871R oil and water cooled? Yes. Garrett lists the GT2871R with a dual ceramic ball bearing cartridge in an oil and water cooled center housing. The installation needs an oil feed and drain plus a coolant feed and return, along with gaskets and flanges that suit the engine.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
