What is the 0.64 A/R GT2871R Turbocharger best for?

A 2.0L to 2.5L engine that wants the larger 53mm GT2871R compressor with quicker boost than the 0.86 A/R version gives. The GT2871R Turbocharger with this smaller housing suits street and track use where response matters more than reaching the very top of the rating.

How much horsepower is the GT2871R rated for?

Garrett lists 280 to 475 horsepower for engines from 1.8L to 3.0L. That figure comes from compressor choke flow and represents potential flywheel horsepower. The 0.64 A/R housing will limit exhaust flow at high rpm, so expect most builds on it to stop short of the top figure.

Does this GT2871R come with an actuator?

Garrett sources disagree. Turn 14 lists the 480009-9 low boost actuator, which Garrett rates at 0.5 bar, and the Garrett product page sells the GT2871R complete with actuator. The Garrett archive index lists this number as external wastegate without one. We confirm with the distributor before ordering.

What changes between the 0.64 and 0.86 A/R GT2871R?

Only the turbine housing. Both use the 53mm by 71mm compressor wheel and the 54mm by 47mm turbine wheel. The 0.64 A/R builds boost sooner and the 0.86 A/R flows more near redline, so the choice comes down to displacement and the rev range the engine uses.

Will Garrett GT28 housings fit this turbo?

Garrett lists GT28 turbine kits in 0.64 and 0.86 A/R wastegated and 0.57 and 0.72 A/R V-band free float for the GT2871R. Garrett states that the kits are not directly interchangeable with each other, and the exhaust needs modification to fit a different one.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

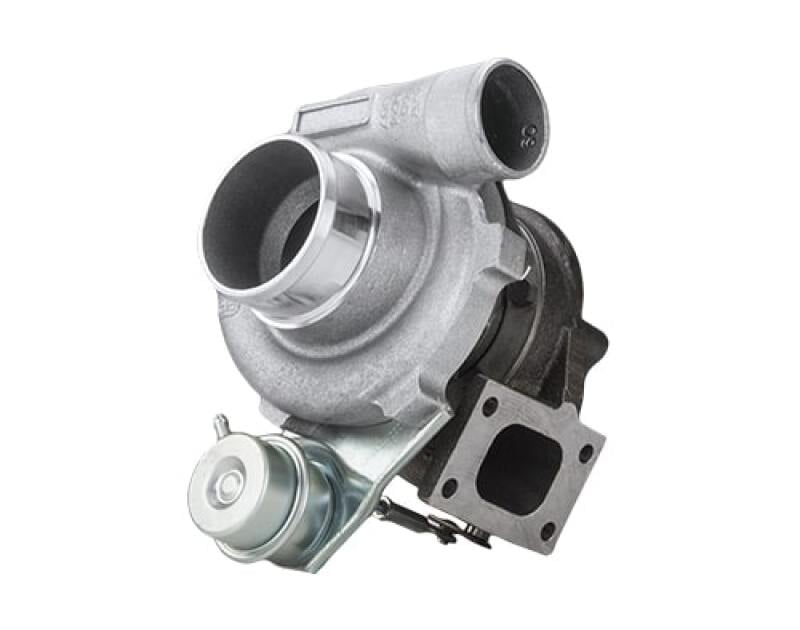

Garrett GT2871R Turbocharger, 0.64 A/R

Garrett’s GT2871R Turbocharger with the 0.64 A/R turbine housing puts the 53mm GT2871R compressor on the smaller GT28 turbine housing, trading some top-end flow for quicker boost than the 0.86 A/R version. Garrett rates the GT2871R at 280 to 475 horsepower on 1.8L to 3.0L engines, and with this housing it suits a 2.0L street or track engine that wants a big compressor without slow spool. Garrett sources describe the wastegate setup for this part number differently, so we confirm it before an order ships.

Features

53mm by 71mm cast compressor wheel with original GT Series aerodynamics
0.64 A/R turbine housing for earlier boost than the 0.86 A/R GT2871R
Dual ceramic ball bearing cartridge, oil and water cooled

Specifications

Compressor inducer and exducer: 53mm and 71mm
Compressor trim and A/R: 56 and 0.60
Turbine inducer and exducer: 54mm and 47mm
Turbine trim and A/R: 76 and 0.64
Bearing system: Dual ceramic ball bearing
Cooling: Oil and water

Applications

The GT2871R Turbocharger is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.8L to 3.0L
Power range: 280 to 475 horsepower (Garrett rating)

Notes

Turn 14 lists this part number with the 480009-9 low boost actuator and Garrett’s product page sells the GT2871R complete with actuator, but Garrett’s archive index lists it as external wastegate without actuator; we confirm the configuration before ordering
Garrett’s GT28 turbine kit table lists its 0.64 A/R wastegated housing with a T25 inlet and 5-bolt outlet
Garrett publishes speed sensor installation instructions for this turbo; the Garrett speed sensor kit is sold separately
Also see the 0.86 A/R GT2871R for more top-end flow

Frequently Asked Questions

What is the 0.64 A/R GT2871R Turbocharger best for? A 2.0L to 2.5L engine that wants the larger 53mm GT2871R compressor with quicker boost than the 0.86 A/R version gives. The GT2871R Turbocharger with this smaller housing suits street and track use where response matters more than reaching the very top of the rating.
How much horsepower is the GT2871R rated for? Garrett lists 280 to 475 horsepower for engines from 1.8L to 3.0L. That figure comes from compressor choke flow and represents potential flywheel horsepower. The 0.64 A/R housing will limit exhaust flow at high rpm, so expect most builds on it to stop short of the top figure.
Does this GT2871R come with an actuator? Garrett sources disagree. Turn 14 lists the 480009-9 low boost actuator, which Garrett rates at 0.5 bar, and the Garrett product page sells the GT2871R complete with actuator. The Garrett archive index lists this number as external wastegate without one. We confirm with the distributor before ordering.
What changes between the 0.64 and 0.86 A/R GT2871R? Only the turbine housing. Both use the 53mm by 71mm compressor wheel and the 54mm by 47mm turbine wheel. The 0.64 A/R builds boost sooner and the 0.86 A/R flows more near redline, so the choice comes down to displacement and the rev range the engine uses.
Will Garrett GT28 housings fit this turbo? Garrett lists GT28 turbine kits in 0.64 and 0.86 A/R wastegated and 0.57 and 0.72 A/R V-band free float for the GT2871R. Garrett states that the kits are not directly interchangeable with each other, and the exhaust needs modification to fit a different one.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
