How much power can a GT2860RS support?

Garrett rates the GT2860RS family at 250 to 360 horsepower on engines from 1.8L to 3.0L. The rating is based on the choke flow of the compressor map and represents potential flywheel horsepower, so fuel, boost, the turbine housing and calibration all affect the final number.

Which turbine housing comes on 836026-5009S?

Garrett does not publish it for this part number, and the Turn 14 listing does not give an A/R or flange. Contact us before ordering and we will confirm the configuration with the distributor, so the turbo matches the manifold and downpipe on the engine.

Is the GT2860RS ball bearing?

Yes. Garrett lists the GT2860RS family with a ball bearing configuration and a water cooled center housing, and its archive index shows dual ceramic ball bearings with oil and water cooling. The installation needs oil feed and drain lines and a coolant feed and return.

Should I buy this or the 0.64 or 0.86 A/R GT2860RS?

If the build calls for this exact part number, buy this one. Otherwise the 0.64 and 0.86 A/R GT2860RS turbos are the versions Garrett documents fully, with internally wastegated housings and actuators included, which makes them easier to plan an installation around.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

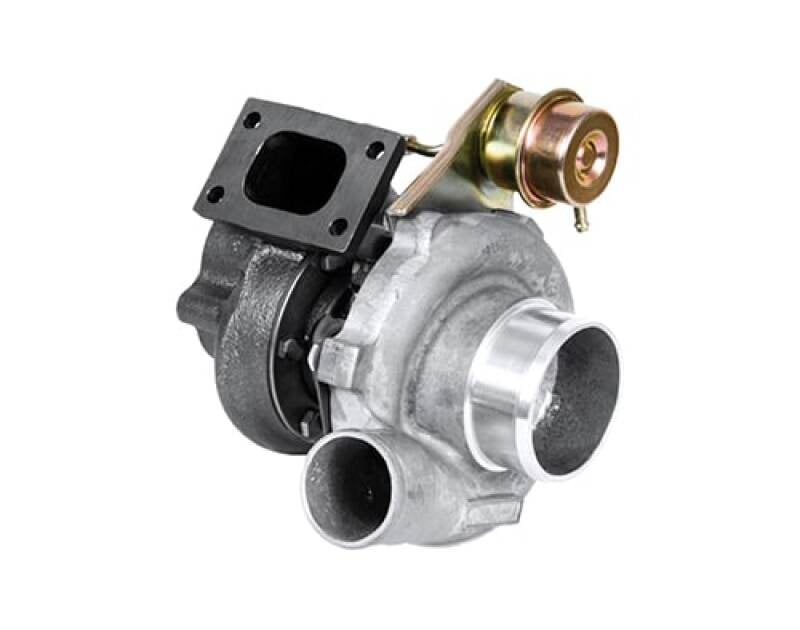

Garrett GT2860RS Turbocharger, GT28R Compressor Housing

Garrett’s GT2860RS Turbocharger in this part number is the version Turn 14 describes as fitted with the GT28R compressor housing, a small-frame GT Series turbo built around the GT2860RS rotating assembly. Garrett does not list 836026-5009S on its current GT2860RS page, so the turbine housing A/R and flanges for this exact unit are not published there. What Garrett does publish for the GT2860RS family is a 47mm by 60mm compressor wheel, a 54mm by 47mm turbine wheel, ball bearings, a water cooled CHRA and a rating of 250 to 360 horsepower on 1.8L to 3.0L engines. This is a part to buy when a build or a replacement calls for this exact number.

Features

GT2860RS rotating assembly with a GT28R compressor housing, per the Turn 14 description
Ball bearing configuration with a water cooled CHRA across the GT2860RS family
Original GT Series aerodynamics with a cast compressor wheel

Specifications

Compressor inducer and exducer: 47mm and 60mm (GT2860RS family)
Turbine inducer and exducer: 54mm and 47mm (GT2860RS family)
Turbine trim: 76
Compressor housing: GT28R (Turn 14 listing)
Bearing system: Ball bearing, water cooled

Applications

The GT2860RS Turbocharger is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.8L to 3.0L (GT2860RS family)
Power range: 250 to 360 horsepower (Garrett rating for the GT2860RS)

Notes

Garrett does not publish the turbine housing, A/R or flanges for this part number; confirm them with us before ordering
Garrett’s current GT2860RS part numbers are the 0.64 and 0.86 A/R complete turbos
Garrett publishes speed sensor installation instructions for this turbo; the Garrett speed sensor kit is sold separately
Special order item through the distributor

Frequently Asked Questions

What is different about this GT2860RS Turbocharger part number? Turn 14 describes 836026-5009S as a GT2860RS Turbocharger with the GT28R compressor housing. Garrett does not list this number on its current GT2860RS page, so the turbine housing details are not published there. Garrett lists two other GT2860RS part numbers with 0.64 and 0.86 A/R internally wastegated housings.
How much power can a GT2860RS support? Garrett rates the GT2860RS family at 250 to 360 horsepower on engines from 1.8L to 3.0L. The rating is based on the choke flow of the compressor map and represents potential flywheel horsepower, so fuel, boost, the turbine housing and calibration all affect the final number.
Which turbine housing comes on 836026-5009S? Garrett does not publish it for this part number, and the Turn 14 listing does not give an A/R or flange. Contact us before ordering and we will confirm the configuration with the distributor, so the turbo matches the manifold and downpipe on the engine.
Is the GT2860RS ball bearing? Yes. Garrett lists the GT2860RS family with a ball bearing configuration and a water cooled center housing, and its archive index shows dual ceramic ball bearings with oil and water cooling. The installation needs oil feed and drain lines and a coolant feed and return.
Should I buy this or the 0.64 or 0.86 A/R GT2860RS? If the build calls for this exact part number, buy this one. Otherwise the 0.64 and 0.86 A/R GT2860RS turbos are the versions Garrett documents fully, with internally wastegated housings and actuators included, which makes them easier to plan an installation around.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
