Who should choose the 0.86 A/R GT2860RS Turbocharger?

Owners of 2.5L to 3.0L engines, or smaller engines that rev high, who want the GT2860RS Turbocharger to reach the top of its rating. The 0.86 A/R housing lowers exhaust back pressure at high rpm. A small street engine that needs early boost suits the 0.64 A/R better.

How much horsepower is the GT2860RS good for?

Garrett lists 250 to 360 horsepower for 1.8L to 3.0L engines, calculated from compressor choke flow and expressed as potential flywheel horsepower. The 0.86 A/R housing gives the engine the exhaust flow to approach 360 horsepower if fuel, boost and calibration are built to match.

Is this the same turbo as the 0.64 A/R GT2860RS?

The center section and wheels are the same in Garrett data: a 47mm by 60mm compressor wheel and a 54mm by 47mm turbine wheel. Only the turbine housing differs. The 0.86 A/R housing trades some low-speed response for better flow at the top of the rev range.

Will I need an external wastegate?

No. Garrett lists this part number with an internal wastegate and an included actuator, so boost is controlled at the turbocharger. Garrett also makes free-float GT28 housings in 0.57 and 0.72 A/R with V-band ends for external wastegate builds, sold separately.

What maintenance does a ball bearing GT2860RS need?

Clean oil at the right pressure and a working coolant circuit. Garrett lists the center housing as oil and water cooled with a dual ceramic ball bearing cartridge, so the oil feed, drain and coolant lines should be routed and sized correctly from the first start.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

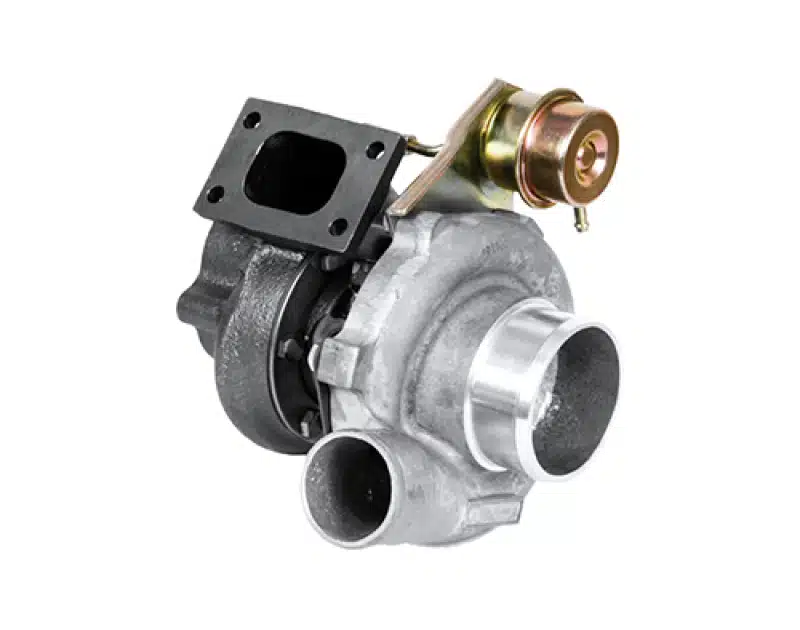

Garrett GT2860RS Turbocharger, 0.86 A/R Internal Wastegate

Garrett’s GT2860RS Turbocharger with the 0.86 A/R turbine housing is the higher-flow GT2860RS part number, using the same 47mm compressor wheel and dual ceramic ball bearing CHRA as the 0.64 A/R unit with a larger internally wastegated housing and actuator. Garrett’s rating for the GT2860RS is 250 to 360 horsepower across 1.8L to 3.0L engines. The 0.86 A/R makes more sense on a 2.5L to 3.0L engine, or a smaller one that revs high and wants to reach the upper part of that rating. A 1.8L street engine will feel the later boost and is better on the 0.64 A/R.

Features

0.86 A/R internally wastegated turbine housing for more exhaust flow at high rpm
Dual ceramic ball bearing cartridge in an oil and water cooled center housing
Cast compressor wheel with original GT Series aerodynamics
Complete turbo, supplied with the turbine kit and actuator

Specifications

Compressor inducer and exducer: 47mm and 60mm
Compressor trim and A/R: 62 and 0.60
Turbine inducer and exducer: 54mm and 47mm
Turbine trim and A/R: 76 and 0.86
Wastegate: Internal, actuator included
Bearing system: Dual ceramic ball bearing

Applications

The GT2860RS Turbocharger is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.8L to 3.0L
Power range: 250 to 360 horsepower (Garrett rating)

Notes

A 0.64 A/R GT2860RS is also available for quicker spool
Garrett’s GT28 turbine kit table lists its 0.86 A/R wastegated housing with a T25 inlet and 5-bolt outlet
Garrett publishes speed sensor installation instructions for this turbo; the Garrett speed sensor kit is sold separately
Expect boost to build later than with the 0.64 A/R housing

Frequently Asked Questions

Who should choose the 0.86 A/R GT2860RS Turbocharger? Owners of 2.5L to 3.0L engines, or smaller engines that rev high, who want the GT2860RS Turbocharger to reach the top of its rating. The 0.86 A/R housing lowers exhaust back pressure at high rpm. A small street engine that needs early boost suits the 0.64 A/R better.
How much horsepower is the GT2860RS good for? Garrett lists 250 to 360 horsepower for 1.8L to 3.0L engines, calculated from compressor choke flow and expressed as potential flywheel horsepower. The 0.86 A/R housing gives the engine the exhaust flow to approach 360 horsepower if fuel, boost and calibration are built to match.
Is this the same turbo as the 0.64 A/R GT2860RS? The center section and wheels are the same in Garrett data: a 47mm by 60mm compressor wheel and a 54mm by 47mm turbine wheel. Only the turbine housing differs. The 0.86 A/R housing trades some low-speed response for better flow at the top of the rev range.
Will I need an external wastegate? No. Garrett lists this part number with an internal wastegate and an included actuator, so boost is controlled at the turbocharger. Garrett also makes free-float GT28 housings in 0.57 and 0.72 A/R with V-band ends for external wastegate builds, sold separately.
What maintenance does a ball bearing GT2860RS need? Clean oil at the right pressure and a working coolant circuit. Garrett lists the center housing as oil and water cooled with a dual ceramic ball bearing cartridge, so the oil feed, drain and coolant lines should be routed and sized correctly from the first start.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
