What does the 0.64 A/R GT2860RS Turbocharger suit?

It suits a 1.8L to 2.0L engine that needs boost early, such as a street-driven four-cylinder. The GT2860RS Turbocharger with the 0.64 A/R housing spools sooner than the 0.86 A/R version, at the cost of exhaust flow near redline on larger or high revving engines.

What power rating does Garrett give the GT2860RS?

Garrett gives 250 to 360 horsepower for engines from 1.8L to 3.0L. The rating comes from the choke flow of the compressor map and represents potential flywheel horsepower. With the small 0.64 A/R housing, most engines will sit in the lower or middle part of that band.

Is the actuator included?

Yes. Garrett lists the GT2860RS as a complete turbo with the turbine kit and actuator, and its archive index shows the 0.64 A/R part number with an internal wastegate and actuator included. No external wastegate is needed on the manifold for this configuration.

Can I change the turbine housing later?

Garrett lists four GT28 turbine kits for this frame, in 0.64 and 0.86 A/R with an internal wastegate and 0.57 and 0.72 A/R free float with V-band ends. Garrett notes the kits are not directly interchangeable and the exhaust needs modification to fit a different one.

Does the GT2860RS need coolant lines?

Yes. Garrett lists the center section as oil and water cooled, so the installation needs a coolant feed and return as well as the oil feed and drain. Water cooling helps manage heat in the bearing housing, particularly after a hard run and shutdown.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

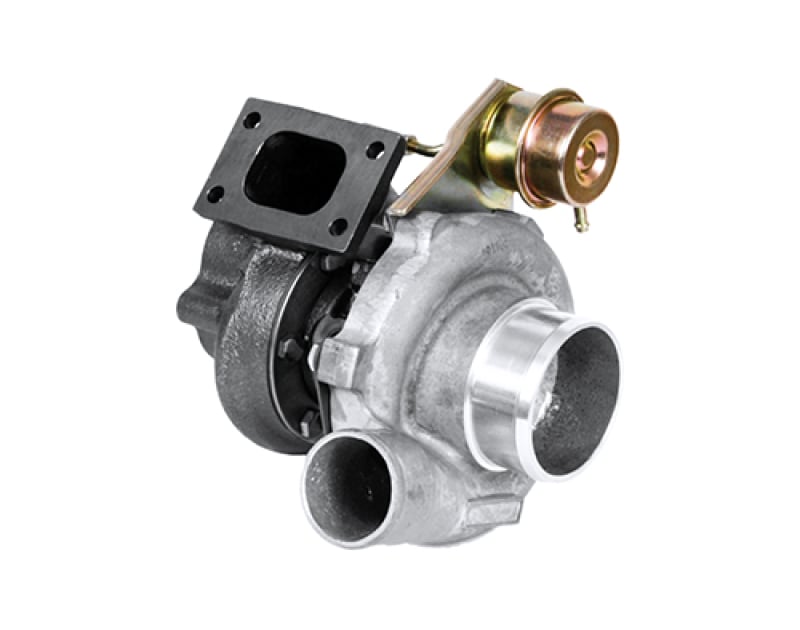

Garrett GT2860RS Turbocharger, 0.64 A/R Internal Wastegate

Garrett’s GT2860RS Turbocharger in 0.64 A/R form is the quicker-spooling of the two GT2860RS part numbers Garrett lists, a complete GT28-frame turbo with a 47mm by 60mm compressor wheel, a dual ceramic ball bearing CHRA and an internally wastegated turbine housing with its actuator. Garrett rates the GT2860RS at 250 to 360 horsepower on 1.8L to 3.0L engines. The 0.64 A/R housing favors a 1.8L to 2.0L street engine that wants boost early, and it will start to limit an engine pushing toward the top of the rating.

Construction

Garrett lists the GT2860RS with a cast compressor wheel, original GT Series aerodynamics and a dual ceramic ball bearing cartridge in a center housing cooled by both oil and water. The turbine wheel measures 54mm by 47mm with a 76 trim.

Features

0.64 A/R internally wastegated turbine housing, actuator included
Dual ceramic ball bearing, oil and water cooled center section
Sold as a complete turbo with the turbine kit fitted

Specifications

Compressor inducer and exducer: 47mm and 60mm
Compressor trim and A/R: 62 and 0.60
Turbine inducer and exducer: 54mm and 47mm
Turbine trim and A/R: 76 and 0.64
Wastegate: Internal, actuator included
Bearing system: Dual ceramic ball bearing

Applications

The GT2860RS Turbocharger is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.8L to 3.0L
Power range: 250 to 360 horsepower (Garrett rating)

Notes

Garrett also lists the GT2860RS with a 0.86 A/R turbine housing
Garrett’s GT28 turbine kit table lists its 0.64 A/R wastegated housing with a T25 inlet and 5-bolt outlet
Garrett publishes speed sensor installation instructions for this turbo; the Garrett speed sensor kit is sold separately
Garrett does not publish a maximum turbocharger speed for the GT2860RS

Frequently Asked Questions

What does the 0.64 A/R GT2860RS Turbocharger suit? It suits a 1.8L to 2.0L engine that needs boost early, such as a street-driven four-cylinder. The GT2860RS Turbocharger with the 0.64 A/R housing spools sooner than the 0.86 A/R version, at the cost of exhaust flow near redline on larger or high revving engines.
What power rating does Garrett give the GT2860RS? Garrett gives 250 to 360 horsepower for engines from 1.8L to 3.0L. The rating comes from the choke flow of the compressor map and represents potential flywheel horsepower. With the small 0.64 A/R housing, most engines will sit in the lower or middle part of that band.
Is the actuator included? Yes. Garrett lists the GT2860RS as a complete turbo with the turbine kit and actuator, and its archive index shows the 0.64 A/R part number with an internal wastegate and actuator included. No external wastegate is needed on the manifold for this configuration.
Can I change the turbine housing later? Garrett lists four GT28 turbine kits for this frame, in 0.64 and 0.86 A/R with an internal wastegate and 0.57 and 0.72 A/R free float with V-band ends. Garrett notes the kits are not directly interchangeable and the exhaust needs modification to fit a different one.
Does the GT2860RS need coolant lines? Yes. Garrett lists the center section as oil and water cooled, so the installation needs a coolant feed and return as well as the oil feed and drain. Water cooling helps manage heat in the bearing housing, particularly after a hard run and shutdown.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
