What engine size is the GT2560R Turbocharger for?

Garrett lists the GT2560R Turbocharger for engines from 1.4L to 2.2L in its feature data and archive. It is best matched to a 1.6L to 2.0L four-cylinder upgrading from a factory or journal bearing turbo. A 2.5L engine or a build targeting more than 300 horsepower needs a larger frame.

How much horsepower will the GT2560R support?

Garrett rates it at 170 to 270 horsepower in its feature data and archive index. The figure is calculated from compressor choke flow and represents potential flywheel horsepower. Garrett also shows 200 to 330 horsepower in one reference table, so treat 270 as the conservative ceiling.

Is the GT2560R ball bearing?

Yes. Garrett lists the GT2560R with a dual ceramic ball bearing cartridge in an oil and water cooled center housing. Ball bearings reduce friction compared with a journal bearing, which helps the turbo respond sooner, and the water cooling needs coolant lines run to the center section.

Does it come with the turbine housing and actuator?

Yes. Garrett sells the GT2560R as a complete turbo, including the turbine kit and the actuator. The turbine housing is a 0.64 A/R internally wastegated design, so no external wastegate is needed. Oil and coolant lines, gaskets and manifold flanges suited to the engine are separate.

Will the GT2560R fit in place of my current turbo?

That depends on the flanges and space on the engine. Garrett publishes a flange diagram on its product page but no flange names in its text, so compare the drawing with the existing manifold, downpipe and intake before ordering, or ask us to check the dimensions.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

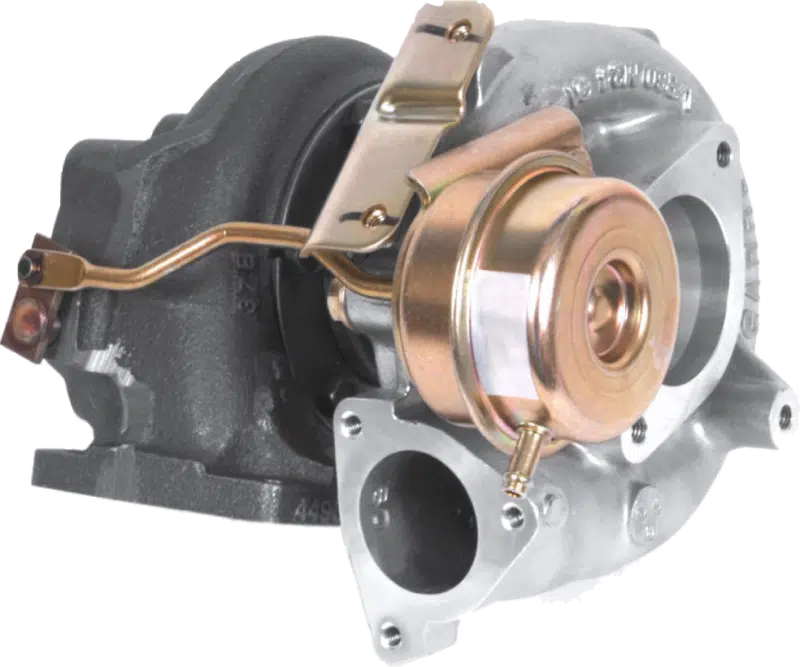

Garrett GT2560R Turbocharger, 0.64 A/R Internal Wastegate

Garrett’s GT2560R Turbocharger is a small-frame GT Series turbo with a dual ceramic ball bearing, water cooled center section, a 0.80 A/R compressor housing and a 0.64 A/R internally wastegated turbine housing, sold complete with its turbine kit and actuator. In its feature data and turbo archive Garrett rates the GT2560R at 170 to 270 horsepower on 1.4L to 2.2L engines. That suits a 1.6L to 2.0L four-cylinder that wants quicker response and more flow than a factory journal bearing turbo. Builds aiming past 300 horsepower have outgrown it and should look at the GT28 frame.

GT Series Background

Garrett describes the GT Series as the line that pioneered its turbo technology in drag and road racing, with journal and ball bearing models from the GT2052 to the GT3582. The series uses cast compressor wheels for durability and offers internally wastegated turbine housings across its sizes.

Features

Dual ceramic ball bearing cartridge in an oil and water cooled center section
Original GT Series compressor and turbine aerodynamics
Internally wastegated 0.64 A/R turbine housing with actuator, supplied as a complete turbo

Specifications

Compressor trim and A/R: 60 and 0.80
Turbine inducer and exducer: 53mm and 42mm
Turbine trim and A/R: 62 and 0.64
Bearing system: Dual ceramic ball bearing
Cooling: Oil and water
Wastegate: Internal, actuator included

Applications

The GT2560R Turbocharger is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.4L to 2.2L
Power range: 170 to 270 horsepower (Garrett rating)

Notes

Garrett’s own GT2560R reference table shows 200 to 330 horsepower and 1.6L to 2.5L; this listing uses the 170 to 270 horsepower figure that its feature data and archive agree on
Garrett publishes speed sensor installation instructions for this turbo; the Garrett speed sensor kit is sold separately
Garrett does not publish a maximum turbocharger speed for this model
For more power, see the GT2860R and GT2860RS in the GT28 frame

Frequently Asked Questions

What engine size is the GT2560R Turbocharger for? Garrett lists the GT2560R Turbocharger for engines from 1.4L to 2.2L in its feature data and archive. It is best matched to a 1.6L to 2.0L four-cylinder upgrading from a factory or journal bearing turbo. A 2.5L engine or a build targeting more than 300 horsepower needs a larger frame.
How much horsepower will the GT2560R support? Garrett rates it at 170 to 270 horsepower in its feature data and archive index. The figure is calculated from compressor choke flow and represents potential flywheel horsepower. Garrett also shows 200 to 330 horsepower in one reference table, so treat 270 as the conservative ceiling.
Is the GT2560R ball bearing? Yes. Garrett lists the GT2560R with a dual ceramic ball bearing cartridge in an oil and water cooled center housing. Ball bearings reduce friction compared with a journal bearing, which helps the turbo respond sooner, and the water cooling needs coolant lines run to the center section.
Does it come with the turbine housing and actuator? Yes. Garrett sells the GT2560R as a complete turbo, including the turbine kit and the actuator. The turbine housing is a 0.64 A/R internally wastegated design, so no external wastegate is needed. Oil and coolant lines, gaskets and manifold flanges suited to the engine are separate.
Will the GT2560R fit in place of my current turbo? That depends on the flanges and space on the engine. Garrett publishes a flange diagram on its product page but no flange names in its text, so compare the drawing with the existing manifold, downpipe and intake before ordering, or ask us to check the dimensions.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
