What does the GBC37-900 Super Core include?

The GBC37-900 Super Core is the center housing rotating assembly with the 0.72 A/R compressor housing fitted. The turbine housing is a separate purchase, and Garrett lists three for this core: 0.82 A/R T3, 0.82 A/R T4 and 0.95 A/R divided T4. All three are free float and need an external wastegate.

How much horsepower is the GBC37-900 rated for?

Garrett rates the GBC37-900 at 450 to 900 horsepower on engines from 2.0L to 5.5L, with up to 87 lbs/min of airflow. Garrett calculates that figure from compressor choke flow, so it represents potential flywheel horsepower, and the engine, fuel system and tune decide how much of it is reached.

Is this core water cooled?

No. Garrett describes the GBC37-900 center housing as oil cooled, so the installation needs an oil feed and drain but no coolant lines. That simplifies plumbing on engines where routing water to the turbocharger is awkward, which suits many swap and custom manifold builds.

GBC37-900 or GBC35-700: which should I choose?

Choose by power target. The GBC35-700 covers 400 to 700 horsepower with a 58mm inducer, while the GBC37-900 steps up to a 67mm inducer for 450 to 900 horsepower. If the goal is above roughly 700 horsepower the GBC37-900 is the core with headroom; below that the smaller core usually spools sooner.

Is the GBC37-900 Super Core a G-Series G37?

No. Turn 14 calls it the G37-900, but Garrett names it the GBC37-900 Super Core and places it in the Garrett Boost Club Line, a journal bearing family. G-Series turbochargers use ball bearing cartridges and different turbine housings, so parts are not shared between the two ranges.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

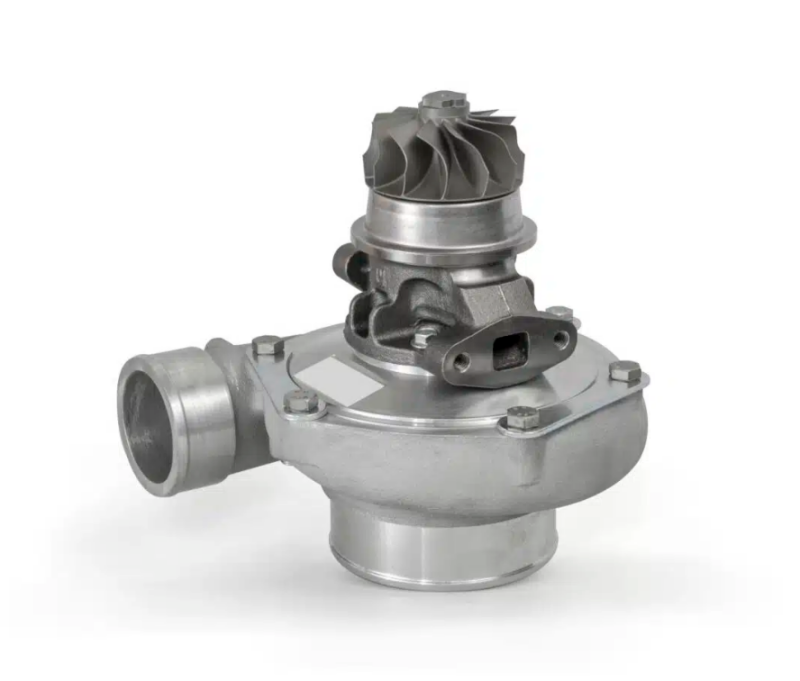

Garrett GBC37-900 Super Core, 67mm Journal Bearing

Garrett’s GBC37-900 Super Core is the largest core in the Garrett Boost Club Line: a 67mm billet compressor wheel spinning on a journal bearing rotating group, rated by Garrett for 450 to 900 horsepower on engines from 2.0L to 5.5L. It is aimed at a V8 or a large six that needs serious airflow on a sensible budget. A 2.0L engine can run it, but only when the target sits near the top of that range; for a build that stops well short of 700 horsepower the GBC35-700 will feel more alert. Garrett supplies it without a turbine housing.

Compressor and Turbine

The 64 trim compressor wheel is forged and fully machined, with an extended tip design for higher pressure ratios, and Garrett quotes up to 87 lbs/min of airflow at a pressure ratio up to 4.0. The turbine side uses a 73mm inducer and an Inconel wheel. GBC37 turbine housings are offered in T3 open, T4 open and T4 divided inlets, each with a 90mm V-band outlet.

Features

Latest generation journal bearing rotor group with a 360-degree thrust bearing
Oil-cooled center housing, with no water lines to plumb
Shares its outline with the GBC35-700, the smaller Boost Club Line core
Machined boost signal port with the plug installed

Specifications

Compressor inducer and exducer: 67mm and 84mm
Compressor trim: 64
Compressor housing A/R: 0.72
Turbine inducer and exducer: 73mm and 65mm
Turbine trim: 80
Rotation: Standard

Applications

The GBC37-900 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 5.5L
Power range: 450 to 900 horsepower (Garrett rating)
Garrett GBC37 turbine kits: 0.82 A/R T3, 0.82 A/R T4 and 0.95 A/R divided T4, all free float with a V-band outlet

Notes

The turbine housing is not included and must be one of the three GBC37 free-float housings Garrett lists
An external wastegate is required with every GBC37 housing
Turn 14 lists this part as the G37-900; Garrett names it GBC37-900, a journal bearing core that is not part of the ball bearing G-Series
Turn 14 shows this core as a special order item with a lead time

Frequently Asked Questions

What does the GBC37-900 Super Core include? The GBC37-900 Super Core is the center housing rotating assembly with the 0.72 A/R compressor housing fitted. The turbine housing is a separate purchase, and Garrett lists three for this core: 0.82 A/R T3, 0.82 A/R T4 and 0.95 A/R divided T4. All three are free float and need an external wastegate.
How much horsepower is the GBC37-900 rated for? Garrett rates the GBC37-900 at 450 to 900 horsepower on engines from 2.0L to 5.5L, with up to 87 lbs/min of airflow. Garrett calculates that figure from compressor choke flow, so it represents potential flywheel horsepower, and the engine, fuel system and tune decide how much of it is reached.
Is this core water cooled? No. Garrett describes the GBC37-900 center housing as oil cooled, so the installation needs an oil feed and drain but no coolant lines. That simplifies plumbing on engines where routing water to the turbocharger is awkward, which suits many swap and custom manifold builds.
GBC37-900 or GBC35-700: which should I choose? Choose by power target. The GBC35-700 covers 400 to 700 horsepower with a 58mm inducer, while the GBC37-900 steps up to a 67mm inducer for 450 to 900 horsepower. If the goal is above roughly 700 horsepower the GBC37-900 is the core with headroom; below that the smaller core usually spools sooner.
Is the GBC37-900 Super Core a G-Series G37? No. Turn 14 calls it the G37-900, but Garrett names it the GBC37-900 Super Core and places it in the Garrett Boost Club Line, a journal bearing family. G-Series turbochargers use ball bearing cartridges and different turbine housings, so parts are not shared between the two ranges.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
