Is the GBC35-700 Super Core the same as a Garrett G35?

No. The GBC35-700 Super Core belongs to the Garrett Boost Club Line, which runs a journal bearing rotating group with a 360-degree thrust bearing. The G35 is a separate G-Series design on a ball bearing cartridge. Some distributors shorten the name to G35-700, but the cores and their turbine housings are different families.

How much power can the GBC35-700 support?

Garrett rates it at 400 to 700 horsepower on engines from 2.0L to 5.0L, with up to 68 lbs/min of airflow and a pressure ratio up to 4.1. The rating is calculated from compressor choke flow and represents potential flywheel horsepower, so fuel, intercooling and the calibration set the real ceiling.

Which turbine housing should I pair with this super core?

Garrett lists three GBC35 housings, each free float with a 90mm V-band outlet: 0.82 A/R with a T3 inlet, 0.82 A/R with a T4 inlet, and 0.95 A/R with a divided T4 inlet. Match the inlet to the manifold flange, and use the divided housing only with a divided manifold.

Why choose a journal bearing core over a ball bearing core?

Mostly cost. Garrett positions the Boost Club Line as a high performance journal bearing product in a cost effective price range, pairing modern compressor aerodynamics with a proven bearing system. A ball bearing GTX core costs more and is the better pick when quick transient response matters most to the build.

Can I move from the GBC35-700 Super Core to a GBC37-900 later?

Yes. Garrett states that the GBC35-700 and GBC37-900 are outline interchangeable, so the larger core fits the same general space. The GBC37 uses its own GBC37 turbine housings, so budget for a housing change along with the core when stepping up to the 900 horsepower rating.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

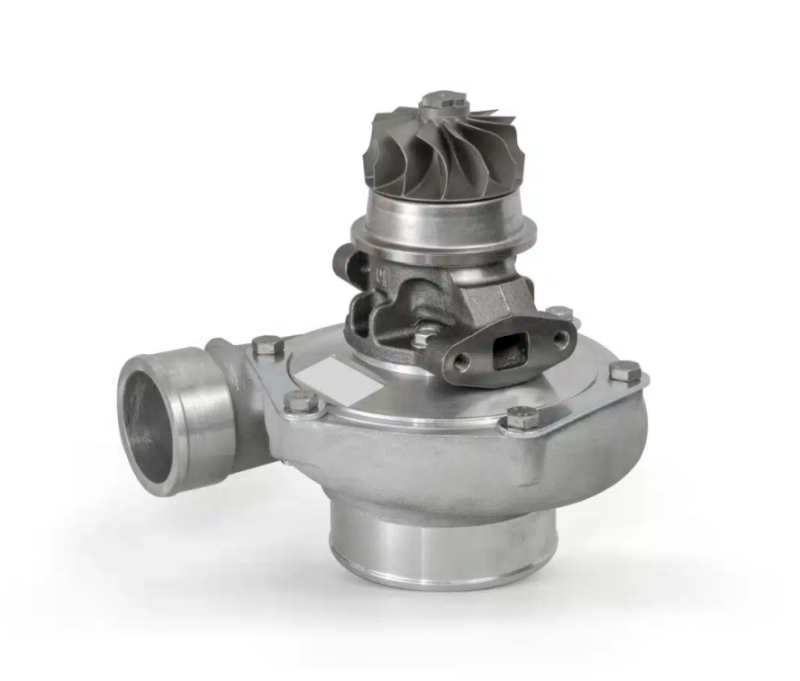

Garrett GBC35-700 Super Core, 58mm Journal Bearing

Garrett’s GBC35-700 Super Core is the 58mm member of the Garrett Boost Club Line, a journal bearing turbocharger family that brings current compressor aerodynamics in below the price of Garrett’s ball bearing ranges. Garrett rates it at 400 to 700 horsepower on engines from 2.0L to 5.0L, with a billet compressor wheel, a 0.72 A/R compressor housing and an oil-cooled center housing. It fits a cost-conscious build on a four-cylinder or six aimed at the middle of that range. A builder who wants the sharpest transient response from a ball bearing cartridge should look at Garrett’s GTX range instead.

Compressor and Rotating Group

The forged, fully machined compressor wheel uses an extended tip design for higher pressure ratios, and Garrett describes the GBC compressor aerodynamics as derived from GTX Gen II. Garrett quotes up to 68 lbs/min of airflow and a pressure ratio up to 4.1. The rotating group runs on Garrett’s latest generation of journal bearings with a 360-degree thrust bearing, and the turbine wheel is Inconel.

Features

Billet compressor wheel with an extended tip design for higher pressure ratios
Machined boost signal port, supplied with the plug installed
Outline interchangeable with the GBC37-900, the larger Boost Club Line core

Specifications

Compressor inducer and exducer: 58mm and 76mm
Compressor trim: 58
Compressor housing A/R: 0.72
Turbine inducer and exducer: 68mm and 62mm
Turbine trim: 84
Bearing system: Journal bearing with 360-degree thrust bearing
Rotation: Standard

Applications

The GBC35-700 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 5.0L
Power range: 400 to 700 horsepower (Garrett rating)
Garrett GBC35 turbine kits: 0.82 A/R T3, 0.82 A/R T4 and 0.95 A/R divided T4, all free float with a 90mm V-band outlet

Notes

The turbine housing is not included; Garrett lists three GBC35 free-float housings for this core
Every GBC35 housing Garrett lists is free float, so an external wastegate is required
Turn 14 lists this part as the G35-700; Garrett names it GBC35-700, a journal bearing Boost Club Line core that is separate from the ball bearing G35

Frequently Asked Questions

Is the GBC35-700 Super Core the same as a Garrett G35? No. The GBC35-700 Super Core belongs to the Garrett Boost Club Line, which runs a journal bearing rotating group with a 360-degree thrust bearing. The G35 is a separate G-Series design on a ball bearing cartridge. Some distributors shorten the name to G35-700, but the cores and their turbine housings are different families.
How much power can the GBC35-700 support? Garrett rates it at 400 to 700 horsepower on engines from 2.0L to 5.0L, with up to 68 lbs/min of airflow and a pressure ratio up to 4.1. The rating is calculated from compressor choke flow and represents potential flywheel horsepower, so fuel, intercooling and the calibration set the real ceiling.
Which turbine housing should I pair with this super core? Garrett lists three GBC35 housings, each free float with a 90mm V-band outlet: 0.82 A/R with a T3 inlet, 0.82 A/R with a T4 inlet, and 0.95 A/R with a divided T4 inlet. Match the inlet to the manifold flange, and use the divided housing only with a divided manifold.
Why choose a journal bearing core over a ball bearing core? Mostly cost. Garrett positions the Boost Club Line as a high performance journal bearing product in a cost effective price range, pairing modern compressor aerodynamics with a proven bearing system. A ball bearing GTX core costs more and is the better pick when quick transient response matters most to the build.
Can I move from the GBC35-700 Super Core to a GBC37-900 later? Yes. Garrett states that the GBC35-700 and GBC37-900 are outline interchangeable, so the larger core fits the same general space. The GBC37 uses its own GBC37 turbine housings, so budget for a housing change along with the core when stepping up to the 900 horsepower rating.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
