When is the 1.41 A/R G57 Turbine Housing Kit the right choice?

When the engine makes enough exhaust flow to spool a large turbine easily and power at high rpm is the goal. The 1.41 A/R G57 Turbine Housing Kit gives the least backpressure of the three sizes, which helps the larger G57 and GXR57 compressors reach their ratings.

Will the 1.41 A/R lag on my engine?

On a smaller or low-revving engine, yes. The large volute needs strong exhaust flow before the turbine reaches boost speed. Garrett lists the same cores with 1.09 and 1.25 A/R housings, and those will bring boost in sooner on an engine that cannot feed the 1.41.

What maximum speed applies to G57 cores?

Garrett lists 84,000 rpm for the G57-2000, G57-2350 and G57-2550, 74,500 rpm for the G57-2750 and G57-3000, and 75,000 rpm for the GXR57 cores. Running above the limit is at the risk of the owner, and Garrett sells a speed sensor kit to monitor shaft speed.

Does this housing have a divided inlet?

No. Garrett lists all three G57 housings as undivided, with a V-band inlet. They suit a single-entry manifold finished with a V-band collector, and Garrett does not list a divided G57 option for these cores. A twin-scroll manifold would lose its pulse separation at this housing, so plan a single-entry design.

Can I keep this housing if I change the compressor later?

Yes. Every G57 and GXR57 core Garrett lists uses the same 118mm by 112mm turbine wheel, so moving from a G57-2550 to a G57-3000, or across to a GXR57-98, leaves the turbine side unchanged. The 1.41 A/R housing and the manifold stay in place while the core is swapped.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

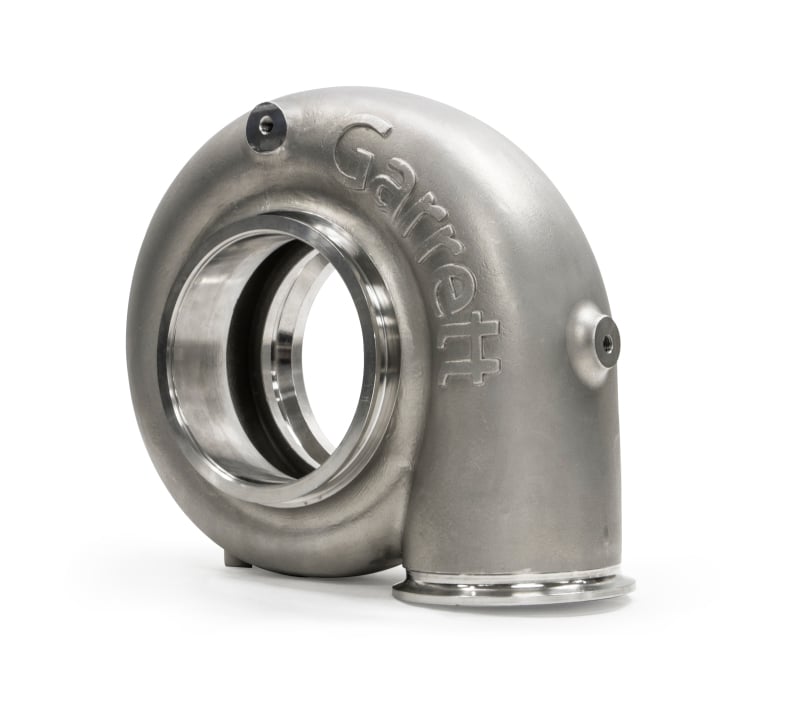

Garrett G57 Turbine Housing Kit, 1.41 A/R V-Band In and Out, Free Float

Garrett’s G57 Turbine Housing Kit in 1.41 A/R is the largest housing Garrett lists for its biggest G-Series turbine, a stainless free-float casting with V-band inlet and outlet. It is meant for engines that make enough exhaust flow to drive a G57 or GXR57 hard, typically with one of the larger compressor wheels, where turbine backpressure is the last thing holding power back. On a smaller engine it will spool late and lose response, so builders near the 3.0L end of Garrett’s range should look at the 1.09 or 1.25 A/R instead.

Built for Flow

The 1.41 A/R volute slows the exhaust entering the 118mm turbine wheel, lowering backpressure at high engine speed. Garrett’s top ratings in the family, up to 3000 horsepower for the G57-3000 and 2900 for the GXR57-98, are calculated from compressor choke flow as potential flywheel horsepower, and the large housing lets the turbine side keep up.

Features

Largest of three G57 A/R sizes, for the lowest exhaust backpressure
V-band inlet and outlet, clockable to suit the manifold
Free-float stainless steel casting
The G57 Turbine Housing Kit for big engines running the larger G57 and GXR57 compressors

Specifications

Garrett part number: 761208-0085
A/R: 1.41
Turbine inlet and outlet: V-band and V-band
Wastegate: External (free float)
Turbine wheel: 118mm inducer, 112mm exducer
Material: Stainless steel

Applications

Garrett lists this G57 Turbine Housing Kit for these super cores:

Garrett G-Series G57 super cores: G57-2000, G57-2350, G57-2550, G57-2750 and G57-3000
Garrett G-XRace GXR57 super cores: GXR57-88, GXR57-94 and GXR57-98
Engine displacement: 3.0L to 12.0L
Power ratings of those cores: 1200 to 3000 horsepower (Garrett rating)

Notes

The G57 super core is a separate purchase
Requires an external wastegate; the housing has no internal wastegate
Smaller sizes for quicker spool: 1.09 A/R and 1.25 A/R

Frequently Asked Questions

When is the 1.41 A/R G57 Turbine Housing Kit the right choice? When the engine makes enough exhaust flow to spool a large turbine easily and power at high rpm is the goal. The 1.41 A/R G57 Turbine Housing Kit gives the least backpressure of the three sizes, which helps the larger G57 and GXR57 compressors reach their ratings.
Will the 1.41 A/R lag on my engine? On a smaller or low-revving engine, yes. The large volute needs strong exhaust flow before the turbine reaches boost speed. Garrett lists the same cores with 1.09 and 1.25 A/R housings, and those will bring boost in sooner on an engine that cannot feed the 1.41.
What maximum speed applies to G57 cores? Garrett lists 84,000 rpm for the G57-2000, G57-2350 and G57-2550, 74,500 rpm for the G57-2750 and G57-3000, and 75,000 rpm for the GXR57 cores. Running above the limit is at the risk of the owner, and Garrett sells a speed sensor kit to monitor shaft speed.
Does this housing have a divided inlet? No. Garrett lists all three G57 housings as undivided, with a V-band inlet. They suit a single-entry manifold finished with a V-band collector, and Garrett does not list a divided G57 option for these cores. A twin-scroll manifold would lose its pulse separation at this housing, so plan a single-entry design.
Can I keep this housing if I change the compressor later? Yes. Every G57 and GXR57 core Garrett lists uses the same 118mm by 112mm turbine wheel, so moving from a G57-2550 to a G57-3000, or across to a GXR57-98, leaves the turbine side unchanged. The 1.41 A/R housing and the manifold stay in place while the core is swapped.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
