Which cores take the 1.09 A/R G57 Turbine Housing Kit?

Garrett lists the 1.09 A/R G57 Turbine Housing Kit for the five G-Series G57 cores, G57-2000 through G57-3000, and the three G-XRace cores, GXR57-88, GXR57-94 and GXR57-98. They all share the 118mm inducer, 112mm exducer turbine wheel that this housing surrounds.

Why pick the smallest G57 housing?

To bring boost in earlier. The G57 turbine is large, and the 1.09 A/R volute speeds up the exhaust feeding it so the turbocharger comes to life at lower engine speed. It suits smaller engines in the range or builds where response matters more than the last step of peak flow.

Does the G57 housing use a T6 inlet?

No. Garrett lists all three G57 housings with V-band inlets and V-band outlets. A manifold for this housing needs a V-band collector flange, and no T6 inlet G57 option appears in the range Garrett publishes for these cores. Builders reusing a T6 manifold from a smaller turbocharger will need a new collector.

Is an external wastegate needed?

Yes. Garrett lists the G57 housings as free float, so there is no wastegate inside the housing. Boost is held by an external wastegate on the manifold, and on engines that feed a turbocharger this size the gate needs a large valve to keep boost in check.

What is the G57 housing made from?

It is stainless steel. Garrett states that the G57 turbine kits are stainless and sold individually, which lets the builder pick the A/R after choosing the compressor. Stainless keeps its shape under sustained heat better than cast iron, helping the V-band joints keep sealing.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

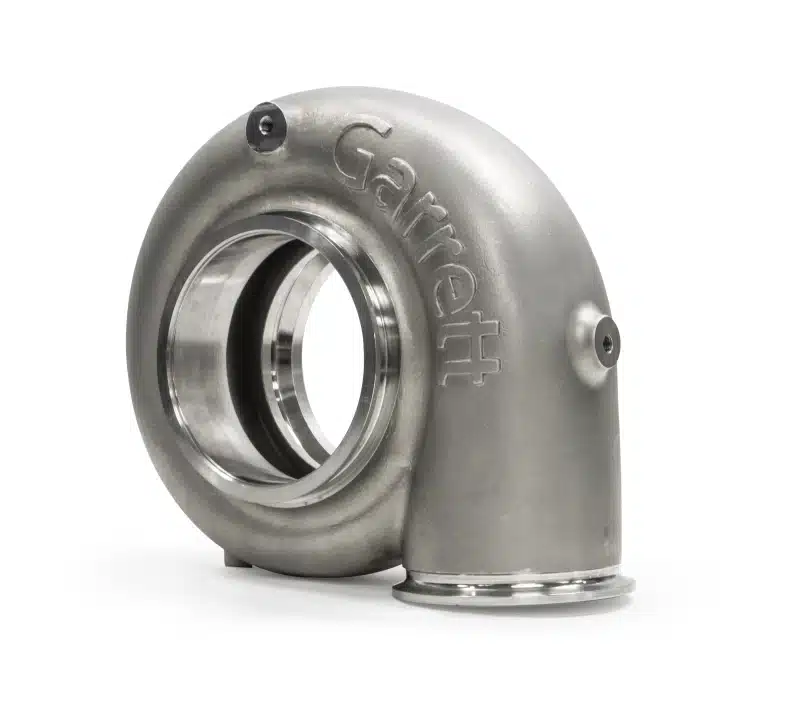

Garrett G57 Turbine Housing Kit, 1.09 A/R V-Band In and Out, Free Float

Garrett’s G57 Turbine Housing Kit in 1.09 A/R is the most responsive of the three exhaust housings Garrett lists for its G57 and G-XRace GXR57 super cores, a stainless free-float housing with V-band joints at the inlet and outlet. The G57 is Garrett’s biggest turbine in this family, and the 1.09 A/R is what keeps it from feeling lazy, so it suits engines toward the smaller end of the 3.0L to 12.0L range or builds that value boost onset. It is not the housing for an engine already flowing enough to push a G57-3000 to the top of its rating; the 1.41 A/R exists for that.

The G57 Turbine

G57 cores use a 118mm inducer, 112mm exducer turbine wheel, and Garrett states it flows 28 percent more than the GTX turbine. That extra capacity is why Garrett offers three housings rather than one: the A/R tunes how early that large wheel comes to life.

Features

Smallest of three G57 A/R sizes, for the earliest boost from the 118mm turbine
V-band inlet and V-band outlet, clockable at both joints
Free-float casting with no internal wastegate
The G57 Turbine Housing Kit fits every G57 and GXR57 core Garrett lists

Specifications

Garrett part number: 761208-0083
A/R: 1.09
Turbine inlet and outlet: V-band and V-band
Wastegate: External (free float)
Turbine wheel: 118mm inducer, 112mm exducer
Material: Stainless steel

Applications

Garrett lists this G57 Turbine Housing Kit for these super cores:

Garrett G-Series G57 super cores: G57-2000, G57-2350, G57-2550, G57-2750 and G57-3000
Garrett G-XRace GXR57 super cores: GXR57-88, GXR57-94 and GXR57-98
Engine displacement: 3.0L to 12.0L
Power ratings of those cores: 1200 to 3000 horsepower (Garrett rating)

Notes

Turbine housing only; the G57 or GXR57 super core is sold separately
An external wastegate is required because the housing is free float
Larger sizes for more flow: 1.25 A/R and 1.41 A/R

Frequently Asked Questions

Which cores take the 1.09 A/R G57 Turbine Housing Kit? Garrett lists the 1.09 A/R G57 Turbine Housing Kit for the five G-Series G57 cores, G57-2000 through G57-3000, and the three G-XRace cores, GXR57-88, GXR57-94 and GXR57-98. They all share the 118mm inducer, 112mm exducer turbine wheel that this housing surrounds.
Why pick the smallest G57 housing? To bring boost in earlier. The G57 turbine is large, and the 1.09 A/R volute speeds up the exhaust feeding it so the turbocharger comes to life at lower engine speed. It suits smaller engines in the range or builds where response matters more than the last step of peak flow.
Does the G57 housing use a T6 inlet? No. Garrett lists all three G57 housings with V-band inlets and V-band outlets. A manifold for this housing needs a V-band collector flange, and no T6 inlet G57 option appears in the range Garrett publishes for these cores. Builders reusing a T6 manifold from a smaller turbocharger will need a new collector.
Is an external wastegate needed? Yes. Garrett lists the G57 housings as free float, so there is no wastegate inside the housing. Boost is held by an external wastegate on the manifold, and on engines that feed a turbocharger this size the gate needs a large valve to keep boost in check.
What is the G57 housing made from? It is stainless steel. Garrett states that the G57 turbine kits are stainless and sold individually, which lets the builder pick the A/R after choosing the compressor. Stainless keeps its shape under sustained heat better than cast iron, helping the V-band joints keep sealing.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
