Is the G57-3000 Super Core the most powerful G57?

Yes. Garrett rates the G57-3000 Super Core at up to 3000 horsepower, the top of the G57 range, using a 106mm compressor inducer on the 118mm turbine. The rating is calculated from compressor choke flow and represents potential flywheel horsepower, not a guaranteed dyno figure.

What is the compressor exducer on the G57-3000?

Garrett publishes two numbers. The feature list on the product page says 133mm, while the reference table for part 880547-5030S says 144mm, matching the 102mm G57-2750. This listing follows the table, so confirm with the Garrett flange diagram if the exact outlet dimension matters for packaging.

How does it compare with the G55-2900?

Both use a 106mm compressor inducer in a 0.96 A/R housing with a 74,500 rpm limit. The G57-3000 adds the 118mm G57 turbine against 112mm on the G55, lifts the rating to 3000 horsepower and starts its range at 1400. The G55 also offers T6 inlet turbine kits, while the G57 is V-band only.

What speed limit applies to the G57-3000?

Garrett lists 74,500 rpm as the maximum allowable turbocharger speed. Use above it is at the risk of the owner and can cause damage and premature failure. With a compressor this large, a speed sensor in the compressor housing is the practical way to keep shaft speed in check during tuning.

What else is needed to run this core?

A G57 turbine kit in 1.09, 1.25 or 1.41 A/R, an external wastegate, an oil feed with a restrictor and a drain, and a calibration. Garrett recommends 40 to 45 psi of oil pressure at maximum engine speed. No coolant lines are needed because the center housing is air cooled.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

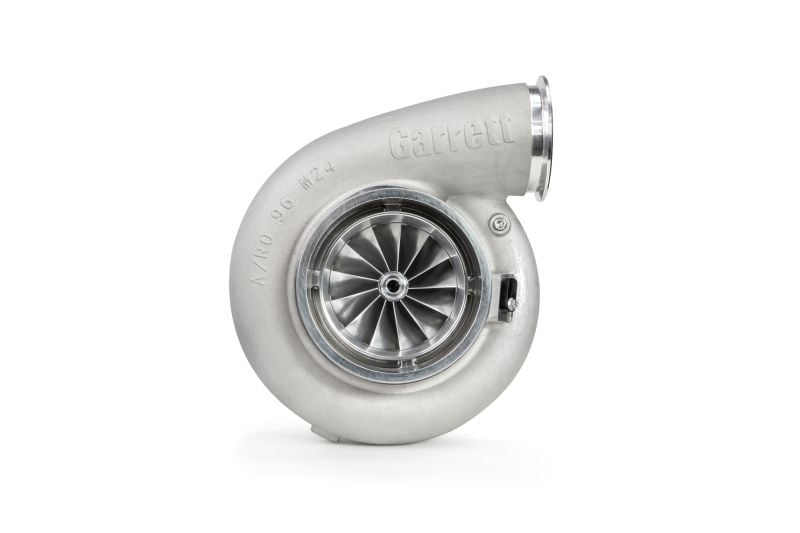

Garrett G57-3000 Super Core, 106mm Inducer 0.96 A/R Compressor Housing

Garrett’s G57-3000 Super Core is the highest-rated core in the G55 and G57 families, a 106mm inducer with a 144mm exducer in Garrett’s reference table, in a 0.96 A/R housing over the 118mm G57 turbine. Garrett rates it at 1400 to 3000 horsepower on 3.0L to 12.0L engines. It is built for the largest engines moving enormous airflow, and it is the wrong part for any engine that will not make well over 2000 horsepower.

Turbine and Center Housing

Garrett states the newly engineered G57 turbine wheel flows up to 28 percent more than GTX. The air-cooled center housing is one piece of aluminum to reduce super core weight, with a 16mm dual ceramic ball bearing cartridge and steel cages.

Features

106mm compressor inducer, the largest of the five G57 sizes
Outline interchangeable with GTX Gen II turbochargers
Stainless steel V-band turbine kits sold individually in 1.09, 1.25 and 1.41 A/R

Specifications

Compressor inducer and exducer: 106mm and 144mm
Compressor housing A/R: 0.96
Turbine inducer and exducer: 118mm and 112mm
Turbine trim: 90
Bearing system: 16mm ceramic dual ball bearing, steel cages
Maximum turbocharger speed: 74,500 rpm

Applications

The G57-3000 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 3.0L to 12.0L
Power range: 1400 to 3000 horsepower (Garrett rating)
Garrett turbine kits: G57 1.09, 1.25 and 1.41 A/R free float, V-band inlet and outlet

Notes

The turbine housing is not included; Garrett sells the G57 turbine housing kits separately
All three G57 turbine kits are free float, so an external wastegate is required
Garrett recommends a -3AN or -4AN oil feed, a restrictor with a 0.040 inch orifice in most cases, and 40 to 45 psi of oil pressure at maximum engine speed
The Garrett speed sensor kit is sold separately
Garrett states that running above 74,500 rpm is at the owner’s risk and can result in damage and premature failure

Frequently Asked Questions

Is the G57-3000 Super Core the most powerful G57? Yes. Garrett rates the G57-3000 Super Core at up to 3000 horsepower, the top of the G57 range, using a 106mm compressor inducer on the 118mm turbine. The rating is calculated from compressor choke flow and represents potential flywheel horsepower, not a guaranteed dyno figure.
What is the compressor exducer on the G57-3000? Garrett publishes two numbers. The feature list on the product page says 133mm, while the reference table for part 880547-5030S says 144mm, matching the 102mm G57-2750. This listing follows the table, so confirm with the Garrett flange diagram if the exact outlet dimension matters for packaging.
How does it compare with the G55-2900? Both use a 106mm compressor inducer in a 0.96 A/R housing with a 74,500 rpm limit. The G57-3000 adds the 118mm G57 turbine against 112mm on the G55, lifts the rating to 3000 horsepower and starts its range at 1400. The G55 also offers T6 inlet turbine kits, while the G57 is V-band only.
What speed limit applies to the G57-3000? Garrett lists 74,500 rpm as the maximum allowable turbocharger speed. Use above it is at the risk of the owner and can cause damage and premature failure. With a compressor this large, a speed sensor in the compressor housing is the practical way to keep shaft speed in check during tuning.
What else is needed to run this core? A G57 turbine kit in 1.09, 1.25 or 1.41 A/R, an external wastegate, an oil feed with a restrictor and a drain, and a calibration. Garrett recommends 40 to 45 psi of oil pressure at maximum engine speed. No coolant lines are needed because the center housing is air cooled.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
