Should I pick the G57-2550 Super Core or the G55-2450?

Both use a 98mm by 133mm compressor in a 0.96 A/R housing. The G57-2550 Super Core adds the 118mm G57 turbine, which Garrett credits with up to 28 percent more flow than GTX, and takes V-band turbine kits only. Choose the G57 when exhaust flow is the limit, and the G55 when a T6 inlet is needed.

How much horsepower can the G57-2550 support?

Garrett rates it at 1400 to 2550 horsepower on 3.0L to 12.0L engines. That rating is calculated strictly from the choke flow of the compressor map and represents potential flywheel horsepower, so it sets the ceiling of the compressor rather than predicting what an engine will make.

Does the G57-2550 need coolant lines?

No. Garrett states the G57 center housing is air cooled. It still needs a good oil supply: Garrett suggests a -3AN or -4AN feed, says a restrictor with a 0.040 inch orifice will normally suffice, and recommends 40 to 45 psi at maximum engine speed.

Does the G57-2550 come with a turbine housing?

No. The G57 turbine kits are sold individually in stainless steel, in 1.09, 1.25 and 1.41 A/R, each with a V-band inlet and outlet. None of them has an internal wastegate, so the build needs an external wastegate on the exhaust manifold as well.

What is the G57-2550 maximum speed?

Garrett gives 84,000 rpm. Use above that is at the risk of the owner and can result in damage and premature failure. Because the next G57 sizes up drop to 74,500 rpm, the G57-2550 is the largest G57 with this limit, and a speed sensor in the compressor housing is still recommended.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

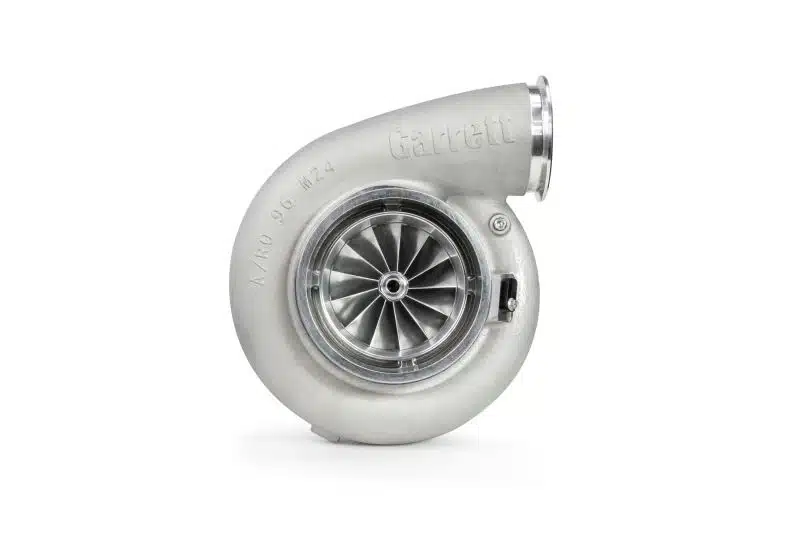

Garrett G57-2550 Super Core, 98mm Inducer 0.96 A/R Compressor Housing

Garrett’s G57-2550 Super Core carries a 98mm inducer and 133mm exducer compressor in a 0.96 A/R housing on the 118mm G57 turbine, rated at 1400 to 2550 horsepower on 3.0L to 12.0L engines. It is the largest G57 that keeps the 84,000 rpm limit; the 102mm and 106mm cores above it drop to 74,500 rpm. For an engine aimed around 2500 horsepower with plenty of exhaust flow it is the logical G57, and anything under 1400 horsepower falls below its rating.

Center Housing and Bearings

Garrett states the air-cooled, one-piece aluminum center housing reduces super core weight, and it fits a 16mm dual ball bearing cartridge with steel cages for rotor dynamics. The G-Series turbine aerodynamics flow up to 28 percent more than GTX, per Garrett.

Features

98mm by 133mm compressor wheel in a 0.96 A/R housing
Largest G57 inducer that keeps the 84,000 rpm speed limit
Outline interchangeable with GTX Gen II turbochargers

Specifications

Compressor inducer and exducer: 98mm and 133mm
Compressor housing A/R: 0.96
Turbine inducer and exducer: 118mm and 112mm
Turbine trim: 90
Bearing system: 16mm ceramic dual ball bearing, steel cages
Maximum turbocharger speed: 84,000 rpm

Applications

The G57-2550 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 3.0L to 12.0L
Power range: 1400 to 2550 horsepower (Garrett rating)
Garrett turbine kits: G57 1.09, 1.25 and 1.41 A/R free float, V-band inlet and outlet

Notes

The turbine housing is not included; Garrett sells the G57 turbine housing kits separately
All three G57 turbine kits are free float, so an external wastegate is required
Garrett recommends a -3AN or -4AN oil feed, a restrictor with a 0.040 inch orifice in most cases, and 40 to 45 psi of oil pressure at maximum engine speed
The Garrett speed sensor kit is sold separately
Garrett states that running above 84,000 rpm is at the owner’s risk and can result in damage and premature failure

Frequently Asked Questions

Should I pick the G57-2550 Super Core or the G55-2450? Both use a 98mm by 133mm compressor in a 0.96 A/R housing. The G57-2550 Super Core adds the 118mm G57 turbine, which Garrett credits with up to 28 percent more flow than GTX, and takes V-band turbine kits only. Choose the G57 when exhaust flow is the limit, and the G55 when a T6 inlet is needed.
How much horsepower can the G57-2550 support? Garrett rates it at 1400 to 2550 horsepower on 3.0L to 12.0L engines. That rating is calculated strictly from the choke flow of the compressor map and represents potential flywheel horsepower, so it sets the ceiling of the compressor rather than predicting what an engine will make.
Does the G57-2550 need coolant lines? No. Garrett states the G57 center housing is air cooled. It still needs a good oil supply: Garrett suggests a -3AN or -4AN feed, says a restrictor with a 0.040 inch orifice will normally suffice, and recommends 40 to 45 psi at maximum engine speed.
Does the G57-2550 come with a turbine housing? No. The G57 turbine kits are sold individually in stainless steel, in 1.09, 1.25 and 1.41 A/R, each with a V-band inlet and outlet. None of them has an internal wastegate, so the build needs an external wastegate on the exhaust manifold as well.
What is the G57-2550 maximum speed? Garrett gives 84,000 rpm. Use above that is at the risk of the owner and can result in damage and premature failure. Because the next G57 sizes up drop to 74,500 rpm, the G57-2550 is the largest G57 with this limit, and a speed sensor in the compressor housing is still recommended.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
