What does the G57-2350 Super Core gain over the G57-2000?

Compressor capacity. The G57-2350 Super Core moves from an 88mm to a 94mm inducer and from a 0.88 to a 0.96 A/R compressor housing, with the same 118mm turbine. Garrett lifts the rating from 2000 to 2350 horsepower, and both cores share the 84,000 rpm limit.

How much horsepower is the G57-2350 rated for?

Garrett rates it at 1400 to 2350 horsepower on engines from 3.0L to 12.0L. The figure is based on compressor choke flow and represents potential flywheel horsepower, so the turbine A/R, fuel system, boost pressure and calibration decide the final number on a particular engine.

Which turbine A/R suits the G57-2350?

Garrett offers 1.09, 1.25 and 1.41 A/R, all V-band in and out. The 1.09 suits the smaller end of the 3.0L to 12.0L range and earlier boost, while the 1.41 suits the largest engines and the highest rpm. Every G57 kit is free float and needs an external wastegate.

Will the G57-2350 replace a GTX turbocharger?

Yes, in outline. Garrett states the G57 is outline interchangeable with GTX Gen II turbochargers. The turbine side uses the G57 V-band kits rather than a GTX housing, so the manifold flange and downpipe should be checked against the Garrett flange diagram before the swap.

What is the max speed of the G57-2350?

Garrett lists 84,000 rpm. Running above that limit is at the risk of the owner and can lead to damage and premature failure. A speed sensor fitted to the compressor housing reads shaft speed directly and lets the tuner keep the core inside the limit, and the sensor kit is sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

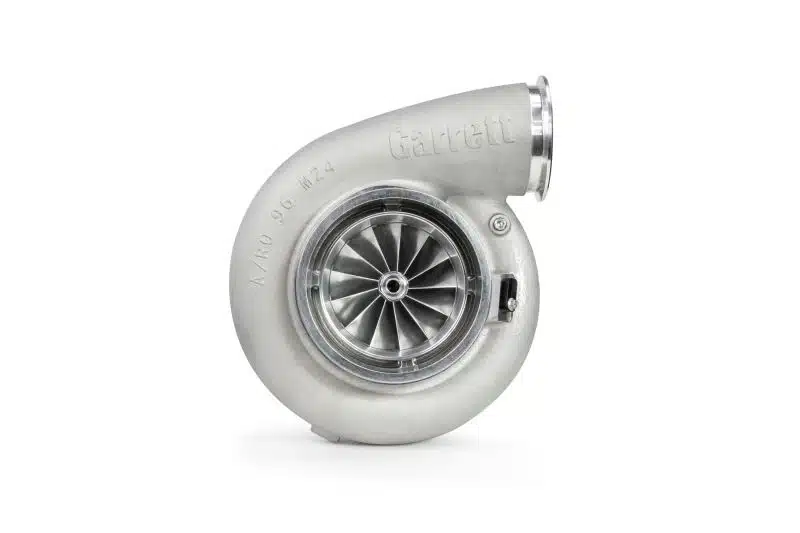

Garrett G57-2350 Super Core, 94mm Inducer 0.96 A/R Compressor Housing

Garrett’s G57-2350 Super Core uses a 94mm inducer, 133mm exducer compressor in a 0.96 A/R housing over the 118mm G-Series G57 turbine, rated by Garrett at 1400 to 2350 horsepower on 3.0L to 12.0L engines. Compared with the 88mm G57-2000 it adds compressor capacity while keeping the same turbine and 84,000 rpm limit. It suits a large engine heading past 2000 horsepower; for a target nearer 1500, the G57 floor of 1400 horsepower suggests looking at a G55 instead.

Design

The G57 turbine wheel uses optimized G-Series aerodynamics that Garrett credits with up to 28 percent more flow than GTX. The center housing is a one-piece aluminum part that reduces super core weight, it is air cooled, and the shaft runs on a 16mm dual ceramic ball bearing cartridge with steel cages.

Features

94mm by 133mm compressor wheel in a 0.96 A/R housing
Outline interchangeable with GTX Gen II turbochargers
Three stainless steel V-band turbine housings offered in 1.09, 1.25 and 1.41 A/R

Specifications

Compressor inducer and exducer: 94mm and 133mm
Compressor housing A/R: 0.96
Turbine inducer and exducer: 118mm and 112mm
Turbine trim: 90
Bearing system: 16mm ceramic dual ball bearing, steel cages
Maximum turbocharger speed: 84,000 rpm

Applications

The G57-2350 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 3.0L to 12.0L
Power range: 1400 to 2350 horsepower (Garrett rating)
Garrett turbine kits: G57 1.09, 1.25 and 1.41 A/R free float, V-band inlet and outlet

Notes

The turbine housing is not included; Garrett sells the G57 turbine housing kits separately
All three G57 turbine kits are free float, so an external wastegate is required
Garrett recommends a -3AN or -4AN oil feed, a restrictor with a 0.040 inch orifice in most cases, and 40 to 45 psi of oil pressure at maximum engine speed
The Garrett speed sensor kit is sold separately
Garrett states that running above 84,000 rpm is at the owner’s risk and can result in damage and premature failure

Frequently Asked Questions

What does the G57-2350 Super Core gain over the G57-2000? Compressor capacity. The G57-2350 Super Core moves from an 88mm to a 94mm inducer and from a 0.88 to a 0.96 A/R compressor housing, with the same 118mm turbine. Garrett lifts the rating from 2000 to 2350 horsepower, and both cores share the 84,000 rpm limit.
How much horsepower is the G57-2350 rated for? Garrett rates it at 1400 to 2350 horsepower on engines from 3.0L to 12.0L. The figure is based on compressor choke flow and represents potential flywheel horsepower, so the turbine A/R, fuel system, boost pressure and calibration decide the final number on a particular engine.
Which turbine A/R suits the G57-2350? Garrett offers 1.09, 1.25 and 1.41 A/R, all V-band in and out. The 1.09 suits the smaller end of the 3.0L to 12.0L range and earlier boost, while the 1.41 suits the largest engines and the highest rpm. Every G57 kit is free float and needs an external wastegate.
Will the G57-2350 replace a GTX turbocharger? Yes, in outline. Garrett states the G57 is outline interchangeable with GTX Gen II turbochargers. The turbine side uses the G57 V-band kits rather than a GTX housing, so the manifold flange and downpipe should be checked against the Garrett flange diagram before the swap.
What is the max speed of the G57-2350? Garrett lists 84,000 rpm. Running above that limit is at the risk of the owner and can lead to damage and premature failure. A speed sensor fitted to the compressor housing reads shaft speed directly and lets the tuner keep the core inside the limit, and the sensor kit is sold separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
