Who is the 1.40 A/R V-band G55 Turbine Housing Kit for?

Builders of large engines running a G55 or GXR55 near the top of its rating on a V-band collector manifold. This G55 Turbine Housing Kit has the largest volute in the range, so it flows freely at high rpm but needs plenty of exhaust energy to spool.

What is the difference from part 761208-0074?

Only the inlet. Part 761208-0074 has a T6 inlet flange, while this part has a V-band inlet. Both are 1.40 A/R, stainless, free float and listed for the same G55 and GXR55 cores, so the manifold flange decides which to buy.

Will a 1.40 A/R housing lag on a smaller engine?

Yes, noticeably. The large volute slows exhaust gas entering the turbine, so boost arrives later on an engine that cannot supply much flow. Smaller engines in the 3.0L to 12.0L range Garrett gives are better served by the 1.00, 1.12 or 1.24 A/R.

Which G55 compressor pairs well with this housing?

Garrett does not publish a pairing chart, but the large housing makes most sense with the bigger compressors, such as the G55-2650, G55-2900 or GXR55-98, on engines that can feed them. Check the choice against the Garrett compressor maps and the expected engine airflow.

What controls boost with this housing?

An external wastegate. The housing is free float, with no internal gate, so a wastegate must be placed on the manifold ahead of the turbine. On a large engine making high flow the gate needs a big valve, such as the Garrett GVW-60.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

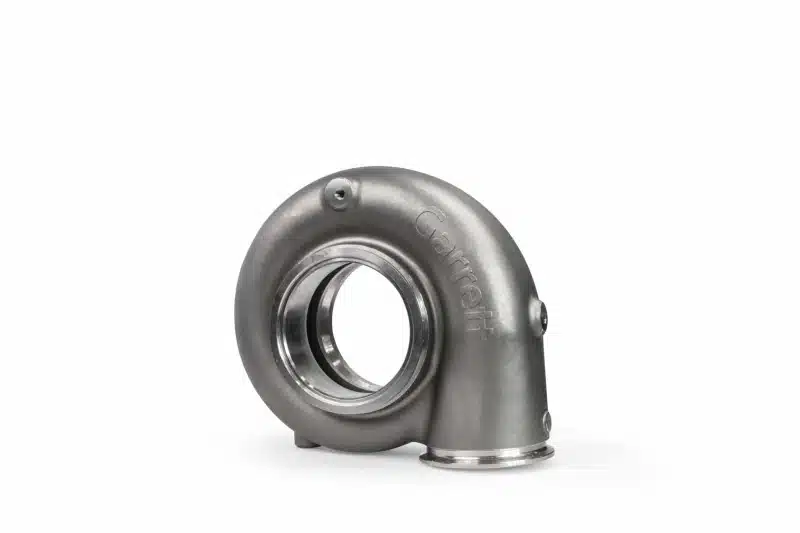

Garrett G55 Turbine Housing Kit, 1.40 A/R V-Band Inlet, Free Float

Garrett’s G55 Turbine Housing Kit in 1.40 A/R with a V-band inlet is the largest, freest-flowing G55 housing in its clamp-on form, with V-band joints at both ends and a stainless free-float casting. It is built for big-displacement engines running the larger G55 and GXR55 compressors, where exhaust backpressure would otherwise cap power, and for fabricated manifolds finished with a V-band collector. It is the wrong choice for a smaller engine that needs boost low in the rev range. If your manifold ends in a T6 flange, part 761208-0074 is the same size in T6.

Big Turbine, Big Flow

The G55 turbine wheel measures 112mm at the inducer and 106mm at the exducer, and Garrett states it flows 15 percent more than the GTX turbine. Paired with the 1.40 A/R volute, it gives the large compressor options, up to the 106mm G55-2900, room to make their rated flow.

Features

Largest A/R Garrett lists for the G55, for minimum backpressure
V-band inlet and outlet, so the housing clocks and clamps at both joints
Free-float stainless casting for an external wastegate
The V-band 1.40 G55 Turbine Housing Kit suits the biggest G55 and GXR55 builds

Specifications

Garrett part number: 761208-0070
A/R: 1.40
Turbine inlet and outlet: V-band and V-band
Wastegate: External (free float)
Turbine wheel: 112mm inducer, 106mm exducer
Material: Stainless steel

Applications

Garrett lists this G55 Turbine Housing Kit for these super cores:

Garrett G-Series G55 super cores: G55-1850, G55-1950, G55-2100, G55-2250, G55-2450, G55-2650 and G55-2900
Garrett G-XRace GXR55 super cores: GXR55-88 including its 0.18 in and 0.25 in map groove versions, GXR55-91, GXR55-94 and GXR55-98
Engine displacement: 3.0L to 12.0L
Power ratings of those cores: 1000 to 2900 horsepower (Garrett rating)

Notes

The G55 or GXR55 super core is not included
An external wastegate is required with this housing
The 1.40 A/R with a T6 inlet is part 761208-0074, and the smaller V-band inlet size is 1.24 A/R

Frequently Asked Questions

Who is the 1.40 A/R V-band G55 Turbine Housing Kit for? Builders of large engines running a G55 or GXR55 near the top of its rating on a V-band collector manifold. This G55 Turbine Housing Kit has the largest volute in the range, so it flows freely at high rpm but needs plenty of exhaust energy to spool.
What is the difference from part 761208-0074? Only the inlet. Part 761208-0074 has a T6 inlet flange, while this part has a V-band inlet. Both are 1.40 A/R, stainless, free float and listed for the same G55 and GXR55 cores, so the manifold flange decides which to buy.
Will a 1.40 A/R housing lag on a smaller engine? Yes, noticeably. The large volute slows exhaust gas entering the turbine, so boost arrives later on an engine that cannot supply much flow. Smaller engines in the 3.0L to 12.0L range Garrett gives are better served by the 1.00, 1.12 or 1.24 A/R.
Which G55 compressor pairs well with this housing? Garrett does not publish a pairing chart, but the large housing makes most sense with the bigger compressors, such as the G55-2650, G55-2900 or GXR55-98, on engines that can feed them. Check the choice against the Garrett compressor maps and the expected engine airflow.
What controls boost with this housing? An external wastegate. The housing is free float, with no internal gate, so a wastegate must be placed on the manifold ahead of the turbine. On a large engine making high flow the gate needs a big valve, such as the Garrett GVW-60.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
