Is the 1.40 A/R T6 the largest G55 Turbine Housing Kit?

Yes, it shares the largest size with the V-band inlet version. Garrett lists the G55 Turbine Housing Kit in 1.00, 1.12, 1.24 and 1.40 A/R with a T6 inlet, and in 1.24 and 1.40 A/R with a V-band inlet. This T6 version gives the most turbine flow on a T6 manifold.

What engines suit the 1.40 A/R?

Large-displacement engines that make high exhaust flow, especially when paired with the bigger G55 or GXR55 compressors. Garrett gives a 3.0L to 12.0L range for these cores, and the 1.40 A/R belongs toward the top of it, where a smaller housing would add backpressure.

Is this housing divided?

Garrett is not consistent on this part. The G55 product pages list it as undivided, while the GXR55-88, GXR55-91, GXR55-94 and GXR55-98 pages mark it divided. Confirm with Bulletproof Automotive before ordering if a twin-scroll manifold is planned, since a divided inlet changes how the manifold must be built.

Does it fit a GTX55 Gen II core?

Garrett does not list it for the GTX5533R or GTX5544R Gen II, which use a 102mm exducer turbine and their own GTX55 housings. This housing is listed only for the G55 and GXR55 cores with the 106mm exducer G-Series turbine wheel.

Will a speed sensor help with a large housing?

Yes. Garrett states a speed sensor can be installed to protect its turbochargers from overspeed, and lists maximum speeds of 84,000 rpm or 74,500 rpm on G55 cores and 75,000 rpm on GXR55 cores. The sensor fits the compressor housing, not the turbine housing, and is sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

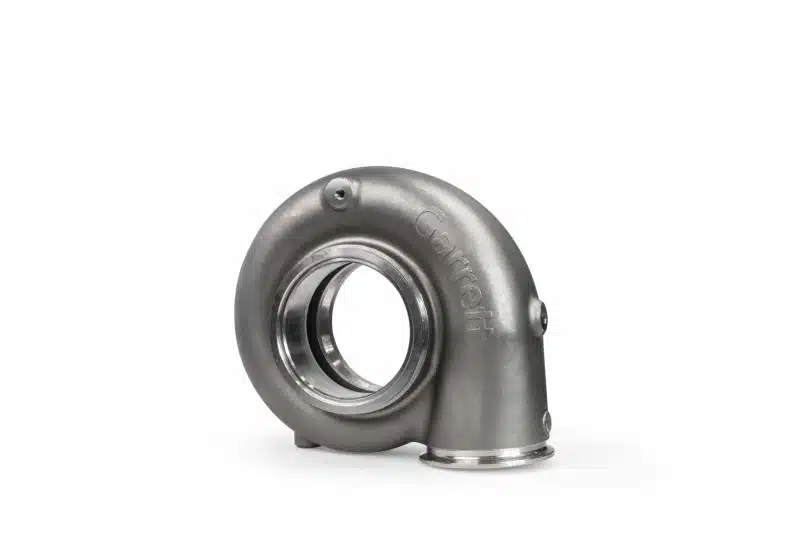

Garrett G55 Turbine Housing Kit, 1.40 A/R T6 Inlet, Free Float

Garrett’s G55 Turbine Housing Kit in 1.40 A/R with a T6 inlet is the largest of the four T6 sizes Garrett lists for its G55 and GXR55 cores, a stainless free-float housing with a V-band outlet. It belongs on a big engine with a T6 manifold where the turbine needs to pass a lot of exhaust with as little backpressure as possible, typically with one of the larger compressor options. Fitted to an engine near the 3.0L end of Garrett’s range it will spool late and feel flat low down. For a V-band collector, the same A/R is sold as part 761208-0070.

Material and Layout

Garrett states its G55 turbine kits are stainless steel and sold individually, so the builder picks the A/R and inlet separately from the core. This size has a T6 inlet, a V-band outlet and no wastegate port, leaving boost control to an external gate on the manifold.

Features

Largest T6 inlet A/R in the G55 range
V-band outlet for a clamped downpipe joint
Stainless steel casting, sold individually from the core
The G55 Turbine Housing Kit fits eleven Garrett G55 and GXR55 cores

Specifications

Garrett part number: 761208-0074
A/R: 1.40
Turbine inlet and outlet: T6 and V-band
Wastegate: External (free float)
Turbine wheel: 112mm inducer, 106mm exducer
Material: Stainless steel

Applications

Garrett lists this G55 Turbine Housing Kit for these super cores:

Garrett G-Series G55 super cores: G55-1850, G55-1950, G55-2100, G55-2250, G55-2450, G55-2650 and G55-2900
Garrett G-XRace GXR55 super cores: GXR55-88 including its 0.18 in and 0.25 in map groove versions, GXR55-91, GXR55-94 and GXR55-98
Engine displacement: 3.0L to 12.0L
Power ratings of those cores: 1000 to 2900 horsepower (Garrett rating)

Notes

Super core sold separately; see Garrett GXR55 and G55 cores
An external wastegate is required, because the housing is free float
For quicker spool, Garrett offers 1.00 A/R, 1.12 A/R and 1.24 A/R T6 housings

Frequently Asked Questions

Is the 1.40 A/R T6 the largest G55 Turbine Housing Kit? Yes, it shares the largest size with the V-band inlet version. Garrett lists the G55 Turbine Housing Kit in 1.00, 1.12, 1.24 and 1.40 A/R with a T6 inlet, and in 1.24 and 1.40 A/R with a V-band inlet. This T6 version gives the most turbine flow on a T6 manifold.
What engines suit the 1.40 A/R? Large-displacement engines that make high exhaust flow, especially when paired with the bigger G55 or GXR55 compressors. Garrett gives a 3.0L to 12.0L range for these cores, and the 1.40 A/R belongs toward the top of it, where a smaller housing would add backpressure.
Is this housing divided? Garrett is not consistent on this part. The G55 product pages list it as undivided, while the GXR55-88, GXR55-91, GXR55-94 and GXR55-98 pages mark it divided. Confirm with Bulletproof Automotive before ordering if a twin-scroll manifold is planned, since a divided inlet changes how the manifold must be built.
Does it fit a GTX55 Gen II core? Garrett does not list it for the GTX5533R or GTX5544R Gen II, which use a 102mm exducer turbine and their own GTX55 housings. This housing is listed only for the G55 and GXR55 cores with the 106mm exducer G-Series turbine wheel.
Will a speed sensor help with a large housing? Yes. Garrett states a speed sensor can be installed to protect its turbochargers from overspeed, and lists maximum speeds of 84,000 rpm or 74,500 rpm on G55 cores and 75,000 rpm on GXR55 cores. The sensor fits the compressor housing, not the turbine housing, and is sold separately.
