Should I choose a T6 or a V-band turbine housing for the G55-2250 Super Core?

Choose by manifold. Garrett offers T6 inlet kits for the G55-2250 Super Core in 1.00, 1.12, 1.24 and 1.40 A/R, and V-band inlet kits in 1.24 and 1.40 A/R. A V-band inlet is easier to clock, while the T6 range covers the smaller A/R sizes. All six are free float.

What power does Garrett rate the G55-2250 for?

Garrett rates it at 1000 to 2250 horsepower on 3.0L to 12.0L engines. Garrett calculates that range from the choke flow of the compressor map and presents it as potential flywheel horsepower, so the actual figure depends on fuel, boost, turbine A/R and the quality of the calibration.

How does the G55-2250 compare with the G55-2100?

It has a 94mm compressor inducer against 91mm, with the same 133mm exducer, 0.96 A/R compressor housing, turbine wheel and turbine kits. Garrett lifts the rating by 150 horsepower to 2250, and both cores share an 84,000 rpm limit.

Does the G55-2250 need coolant lines?

No. Garrett states the G55 center housing is air cooled, so only an oil feed and drain are needed. Garrett recommends a -3AN or -4AN feed, 40 to 45 psi of oil pressure at maximum engine speed and an oil restrictor, with the pressure checked after the restrictor.

What happens above the G55-2250 speed limit?

Garrett sets the maximum allowable speed at 84,000 rpm and states that use above it is at the risk of the owner and can result in damage and premature failure. A compressor housing speed sensor shows the tuner exactly where the shaft is, and Garrett sells it separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

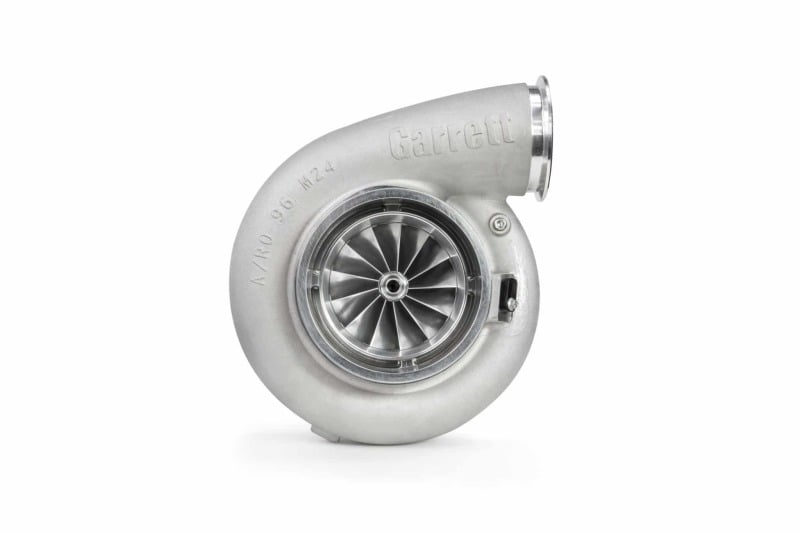

Garrett G55-2250 Super Core, 94mm Inducer 0.96 A/R Compressor Housing

Garrett’s G55-2250 Super Core carries a 94mm inducer, 133mm exducer compressor wheel in a 0.96 A/R housing on the 112mm G-Series turbine, rated by Garrett at 1000 to 2250 horsepower on 3.0L to 12.0L engines. It sits one step above the G55-2100 and fits high-output builds with the fuel system to feed well over 2000 horsepower. The wide rating window is misleading at the bottom end: a 1000 horsepower engine is far better matched to a smaller compressor.

Center Housing and Turbine

Garrett makes the G55 center housing as a single aluminum piece to reduce weight, and air cools it rather than plumbing it for coolant. The 16mm ceramic dual ball bearing cartridge uses steel cages, and the 90 trim G-Series turbine wheel flows up to 15 percent more than GTX.

Features

94mm by 133mm compressor wheel in a 0.96 A/R housing
Outline interchangeable with GTX Gen II turbochargers
Stainless steel turbine kits offered with T6 or V-band inlet

Specifications

Compressor inducer and exducer: 94mm and 133mm
Compressor housing A/R: 0.96
Turbine inducer and exducer: 112mm and 106mm
Turbine trim: 90
Bearing system: 16mm ceramic dual ball bearing, steel cages
Maximum turbocharger speed: 84,000 rpm

Applications

The G55-2250 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 3.0L to 12.0L
Power range: 1000 to 2250 horsepower (Garrett rating)
Garrett turbine kits: G55 1.00, 1.12, 1.24 and 1.40 A/R with T6 inlet, or 1.24 and 1.40 A/R with V-band inlet, all free float with a V-band outlet

Notes

The turbine housing is not included; Garrett sells the G55 turbine housing kits separately
All six G55 turbine kits are free float, so an external wastegate is required
Garrett recommends a -3AN or -4AN oil feed, a restrictor with a 0.040 inch orifice in most cases, and 40 to 45 psi of oil pressure at maximum engine speed
The Garrett speed sensor kit is sold separately
Garrett states that running above 84,000 rpm is at the owner’s risk and can result in damage and premature failure

Frequently Asked Questions

Should I choose a T6 or a V-band turbine housing for the G55-2250 Super Core? Choose by manifold. Garrett offers T6 inlet kits for the G55-2250 Super Core in 1.00, 1.12, 1.24 and 1.40 A/R, and V-band inlet kits in 1.24 and 1.40 A/R. A V-band inlet is easier to clock, while the T6 range covers the smaller A/R sizes. All six are free float.
What power does Garrett rate the G55-2250 for? Garrett rates it at 1000 to 2250 horsepower on 3.0L to 12.0L engines. Garrett calculates that range from the choke flow of the compressor map and presents it as potential flywheel horsepower, so the actual figure depends on fuel, boost, turbine A/R and the quality of the calibration.
How does the G55-2250 compare with the G55-2100? It has a 94mm compressor inducer against 91mm, with the same 133mm exducer, 0.96 A/R compressor housing, turbine wheel and turbine kits. Garrett lifts the rating by 150 horsepower to 2250, and both cores share an 84,000 rpm limit.
Does the G55-2250 need coolant lines? No. Garrett states the G55 center housing is air cooled, so only an oil feed and drain are needed. Garrett recommends a -3AN or -4AN feed, 40 to 45 psi of oil pressure at maximum engine speed and an oil restrictor, with the pressure checked after the restrictor.
What happens above the G55-2250 speed limit? Garrett sets the maximum allowable speed at 84,000 rpm and states that use above it is at the risk of the owner and can result in damage and premature failure. A compressor housing speed sensor shows the tuner exactly where the shaft is, and Garrett sells it separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
