What is the difference between the G50-1700 Super Core and the G47-1650?

The turbine. Both use an 80mm by 109mm compressor wheel, but the G50-1700 Super Core moves to a 99mm turbine inducer and 94mm exducer, against 93mm and 88mm on the G47. Garrett raises the rating to 1700 horsepower and extends the displacement range to 11.0L.

How much power can the G50-1700 make?

Garrett rates it at 875 to 1700 horsepower on 2.5L to 11.0L engines. The number is calculated from compressor choke flow and represents potential flywheel horsepower, so the final output on a given engine depends on fuel, boost, turbine A/R and the calibration behind it.

Which turbine housings fit the G50-1700?

Garrett lists G50 kits in 0.96, 1.08, 1.23 and 1.39 A/R, each with a T6 inlet, a V-band outlet and a free-float layout. They carry their own part numbers for the G50 turbine wheel, so G47 kits with the same A/R figures are different parts and should not be substituted.

Will it fit a GTX Gen II layout?

Yes, in outline. Garrett states the G50 is outline interchangeable with GTX Gen II turbochargers. Because the G50 T6 turbine housing outlet is 17mm shorter than the GTX part, the downpipe connection may need attention when switching from a GTX to a G50 turbine kit.

How fast can the G50-1700 spin?

Garrett publishes a maximum allowable turbocharger speed of 102,500 rpm for the G50-1700. Operation above that figure is at the risk of the owner and can result in damage or premature failure, and Garrett suggests a compressor housing speed sensor, sold separately, to monitor it.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

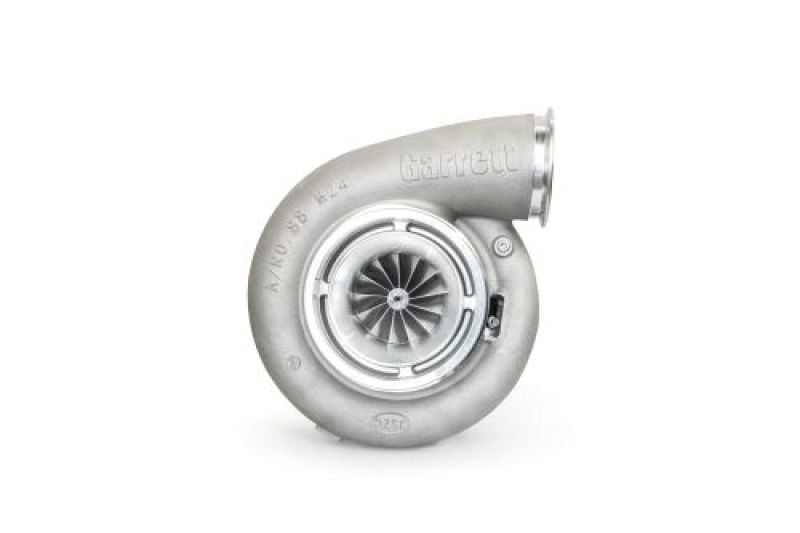

Garrett G50-1700 Super Core, 80mm Compressor Standard Rotation

Garrett’s G50-1700 Super Core puts an 80mm by 109mm compressor wheel on the larger 99mm G50 turbine, rated at 875 to 1700 horsepower on 2.5L to 11.0L engines. The compressor matches the G47-1650 G4709, so the difference is on the exhaust side: a bigger turbine wheel for engines that make more exhaust flow than a G47 can pass. It suits big-displacement engines where turbine capacity is the limit, while a smaller engine with the same power target is better matched to a G47.

Design and Performance

Garrett states the G-Series turbine aerodynamics deliver up to 23 percent more flow and up to 12 percent better spool than the equivalent GTX Gen II design, estimated from flow, efficiency and inertia. The center housing and backplate are one aluminum piece, and the T6 turbine housing outlet is 17mm shorter than the GTX version.

Features

99mm G-Series turbine wheel, larger than the 93mm wheel in the G47
Outline interchangeable with GTX Gen II turbochargers
One-piece lightweight aluminum center housing and backplate

Specifications

Compressor inducer and exducer: 80mm and 109mm
Compressor trim: 54
Compressor housing A/R: 0.88
Turbine inducer and exducer: 99mm and 94mm
Turbine trim: 90
Maximum turbocharger speed: 102,500 rpm
Rotation: Standard

Applications

The G50-1700 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.5L to 11.0L
Power range: 875 to 1700 horsepower (Garrett rating)
Garrett turbine kits: G50 0.96, 1.08, 1.23 and 1.39 A/R free float, T6 inlet and V-band outlet

Notes

The turbine housing is not included; Garrett sells the G50 turbine housing kits separately
All four G50 turbine kits are free float, so an external wastegate is required
The Garrett speed sensor kit is sold separately
Garrett states that running above 102,500 rpm is at the owner’s risk and can result in damage and premature failure

Frequently Asked Questions

What is the difference between the G50-1700 Super Core and the G47-1650? The turbine. Both use an 80mm by 109mm compressor wheel, but the G50-1700 Super Core moves to a 99mm turbine inducer and 94mm exducer, against 93mm and 88mm on the G47. Garrett raises the rating to 1700 horsepower and extends the displacement range to 11.0L.
How much power can the G50-1700 make? Garrett rates it at 875 to 1700 horsepower on 2.5L to 11.0L engines. The number is calculated from compressor choke flow and represents potential flywheel horsepower, so the final output on a given engine depends on fuel, boost, turbine A/R and the calibration behind it.
Which turbine housings fit the G50-1700? Garrett lists G50 kits in 0.96, 1.08, 1.23 and 1.39 A/R, each with a T6 inlet, a V-band outlet and a free-float layout. They carry their own part numbers for the G50 turbine wheel, so G47 kits with the same A/R figures are different parts and should not be substituted.
Will it fit a GTX Gen II layout? Yes, in outline. Garrett states the G50 is outline interchangeable with GTX Gen II turbochargers. Because the G50 T6 turbine housing outlet is 17mm shorter than the GTX part, the downpipe connection may need attention when switching from a GTX to a G50 turbine kit.
How fast can the G50-1700 spin? Garrett publishes a maximum allowable turbocharger speed of 102,500 rpm for the G50-1700. Operation above that figure is at the risk of the owner and can result in damage or premature failure, and Garrett suggests a compressor housing speed sensor, sold separately, to monitor it.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
