What is the difference between the two G47-1650 Super Core versions?

The compressor exducer. This G4709 version uses a 109mm exducer at 54 trim with a 102,500 rpm limit, while the G4720 version uses a 120mm exducer at 45 trim with a 93,000 rpm limit. Both share the 80mm inducer, the 93mm turbine and a rating of up to 1650 horsepower.

How much power does Garrett rate the G47-1650 for?

Up to 1650 horsepower on 2.5L to 10.0L engines. The figure is calculated from the choke flow of the compressor map and represents potential flywheel horsepower. Garrett shows the lower end of the range as both 825 and 925 horsepower, which marks it in either case as a big-engine core.

Does it bolt into a GTX47 Gen II setup?

Yes, in outline. Garrett states the G47 range is outline interchangeable with GTX Gen II turbochargers. The T6 turbine housing outlet is 17mm shorter than on the GTX, so expect to adjust the downpipe or its joint when moving from a GTX47 to a G47 turbine kit.

Which turbine A/R should I choose?

Garrett offers the G47 turbine kit in 0.96, 1.08, 1.23 and 1.39 A/R, all with a T6 undivided inlet, a V-band outlet and an external wastegate requirement. A smaller A/R suits lower displacement and earlier boost, and a larger A/R suits big engines and high rpm where exhaust flow is the limit.

Is a turbine housing included with the G47-1650 Super Core?

No. The G47-1650 Super Core is supplied without a turbine housing, and the exhaust side is one of the four Garrett G47 free-float kits sold separately. The manifold must also carry an external wastegate, since none of those kits has an internal one.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

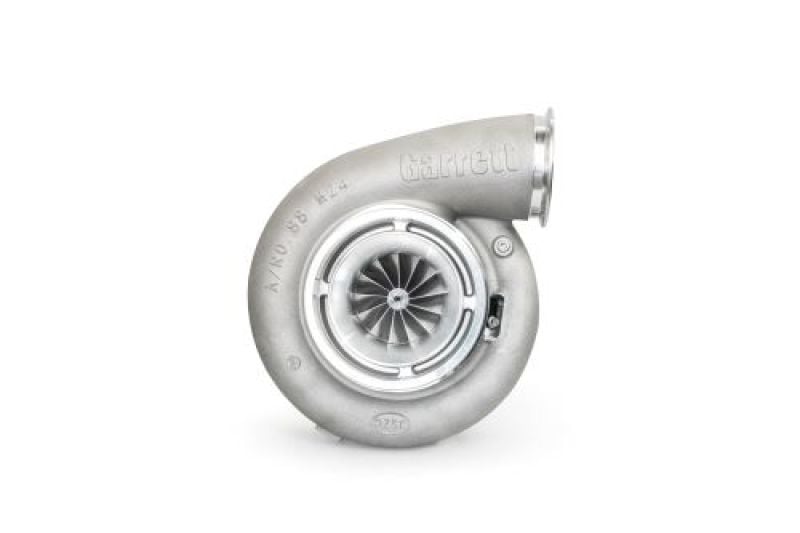

Garrett G47-1650 Super Core, G4709 80mm Inducer 109mm Exducer

Garrett’s G47-1650 Super Core in this G4709 version uses an 80mm inducer, 109mm exducer compressor wheel at 54 trim, the smaller of the two G47-1650 compressor wheels, on the 93mm G-Series turbine. Garrett rates it at up to 1650 horsepower on 2.5L to 10.0L engines and allows it 102,500 rpm. The two versions share the rating and differ in exducer, trim and speed limit, so the choice comes down to which compressor map lays over the engine airflow and boost target better; ask the tuner to compare both before ordering.

Design and Performance

Garrett pairs GTX Gen II compressor aerodynamics with a G-Series turbine wheel that it credits with up to 20 percent more flow and up to 9 percent better spool than the GTX47 Gen II, estimated from flow, efficiency and inertia. A one-piece aluminum center housing and backplate trims weight, and the G47 T6 turbine housing outlet is 17mm shorter than the GTX part.

Features

80mm by 109mm compressor wheel at 54 trim with GTX Gen II aerodynamics
Higher speed limit than the 120mm exducer G47-1650, at 102,500 rpm
Outline interchangeable with GTX Gen II turbochargers

Specifications

Compressor inducer and exducer: 80mm and 109mm
Compressor trim: 54
Compressor housing A/R: 0.88
Turbine inducer and exducer: 93mm and 88mm
Turbine trim: 90
Maximum turbocharger speed: 102,500 rpm
Rotation: Standard

Applications

The G47-1650 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.5L to 10.0L
Power range: Up to 1650 horsepower (Garrett rating)
Garrett turbine kits: G47 0.96, 1.08, 1.23 and 1.39 A/R free float, T6 inlet and V-band outlet

Notes

The turbine housing is not included; Garrett sells the G47 turbine housing kits separately
All four G47 turbine kits are free float, so an external wastegate is required
The Garrett speed sensor kit is sold separately
Garrett states that running above 102,500 rpm is at the owner’s risk and can result in damage and premature failure
Garrett also builds the G47-1650 with an 80mm by 120mm compressor wheel

Frequently Asked Questions

What is the difference between the two G47-1650 Super Core versions? The compressor exducer. This G4709 version uses a 109mm exducer at 54 trim with a 102,500 rpm limit, while the G4720 version uses a 120mm exducer at 45 trim with a 93,000 rpm limit. Both share the 80mm inducer, the 93mm turbine and a rating of up to 1650 horsepower.
How much power does Garrett rate the G47-1650 for? Up to 1650 horsepower on 2.5L to 10.0L engines. The figure is calculated from the choke flow of the compressor map and represents potential flywheel horsepower. Garrett shows the lower end of the range as both 825 and 925 horsepower, which marks it in either case as a big-engine core.
Does it bolt into a GTX47 Gen II setup? Yes, in outline. Garrett states the G47 range is outline interchangeable with GTX Gen II turbochargers. The T6 turbine housing outlet is 17mm shorter than on the GTX, so expect to adjust the downpipe or its joint when moving from a GTX47 to a G47 turbine kit.
Which turbine A/R should I choose? Garrett offers the G47 turbine kit in 0.96, 1.08, 1.23 and 1.39 A/R, all with a T6 undivided inlet, a V-band outlet and an external wastegate requirement. A smaller A/R suits lower displacement and earlier boost, and a larger A/R suits big engines and high rpm where exhaust flow is the limit.
Is a turbine housing included with the G47-1650 Super Core? No. The G47-1650 Super Core is supplied without a turbine housing, and the exhaust side is one of the four Garrett G47 free-float kits sold separately. The manifold must also carry an external wastegate, since none of those kits has an internal one.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
