What engines suit the 1.28 A/R V-band G45 Turbine Housing Kit?

Larger ones. The 1.28 A/R G45 Turbine Housing Kit suits engines in the upper half of the 2.0L to 8.0L range Garrett quotes, or high-rpm builds on smaller engines. It flows more than the 1.01 and 1.15 housings, so boost comes in somewhat later.

Is the G45 turbine wheel an improvement over the GTX45R?

Garrett states that the G-Series turbine aero on the G45 flows 14 percent more than the GTX45R and that its Inconel wheel, with an 89mm inducer, flows up to 56 lbs per minute. The wheel sits in the super core, and this housing is made to surround it.

Can I start with a G45-1475 and move to a GXR45 later?

Yes. Garrett states that GXR45 cores use the same T4 and V-band turbine housings as the G-Series, so this housing stays on the engine when the G45-1475 is replaced by any of the five GXR45 cores. A new calibration is still needed for the new compressor.

Do I need to buy a wastegate?

Yes. This free-float housing has no wastegate port, so boost control comes from an external wastegate on the exhaust manifold. With a free-flowing 1.28 A/R housing, size the gate generously so it can hold boost at high exhaust flow. The manifold also needs a flange for it.

What rotation is this housing?

Standard rotation. Turn 14 lists the G45 housings as standard rotation, and every core Garrett pairs with this one is standard rotation. Owners building a mirrored twin-turbo layout should check reverse-rotation options with us before ordering, because standard and reverse parts do not mix.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

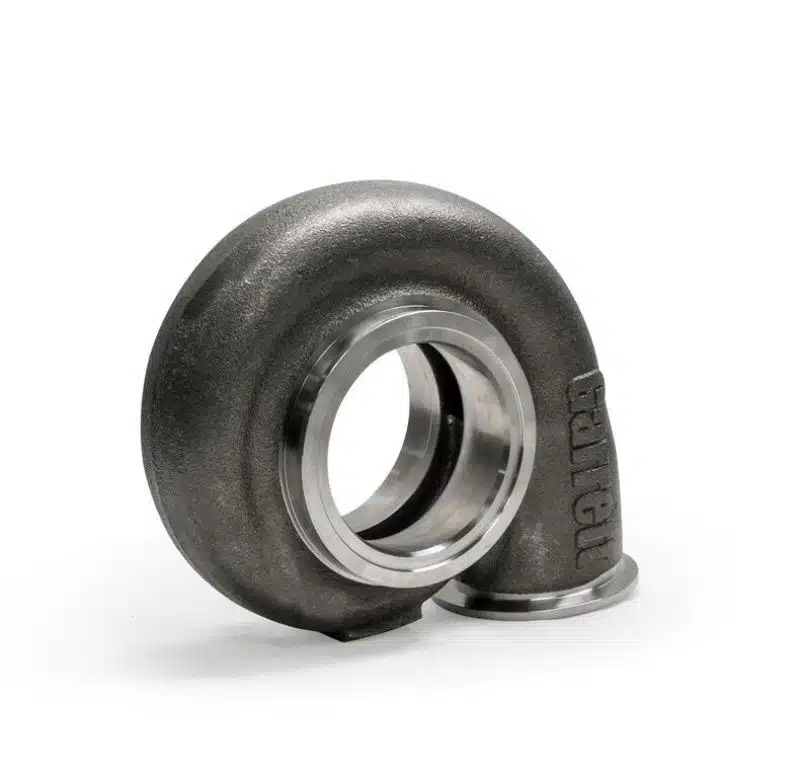

Garrett G45 Turbine Housing Kit, 1.28 A/R V-Band Inlet and Outlet

Garrett’s G45 Turbine Housing Kit in 1.28 A/R with V-band connections gives larger single-scroll G45 builds the flow they need, in a stainless steel housing with clamped joints and no internal wastegate. Garrett lists it for nine cores, and it works best with the bigger compressors, such as the G45-1600 and the GXR45-76, -80 and -82, on engines from roughly 5.0L up. Boost comes in later than with the 1.01 or 1.15, so a small engine or a street car tuned for low-rpm torque is better served by one of those.

Features

V-band inlet and outlet, stainless steel
Free-float layout for an external wastegate
1.28 A/R, the third size in the V-band G45 Turbine Housing Kit range
Fits the 89mm by 82mm G-Series turbine wheel used on every listed core

Specifications

Garrett part number: 757707-0021
A/R: 1.28
Turbine inlet and outlet: V-band and V-band
Divided inlet: No
Wastegate: External (free float)
Rotation: Standard
Material: Stainless steel
Matching turbine wheel: 89mm inducer and 82mm exducer

Applications

Garrett pairs this G45 Turbine Housing Kit with:

Garrett G45-1475: 888169-5007S super core
Garrett G45-1500: 888169-5005S super core
Garrett G45-1600: 888169-5006S super core
Garrett G45-1610 G-Series II: 938339-5004S super core, 938338-5004S CHRA
Garrett GXR45-67 G-XRace: 934173-5003S super core
Garrett GXR45-73 G-XRace: 934173-5004S super core
Garrett GXR45-76 G-XRace: 952766-5001S super core
Garrett GXR45-80 G-XRace: 952766-5004S super core
Garrett GXR45-82 G-XRace: 952766-5005S super core

Notes

An external wastegate is required, because this housing has no internal wastegate
The G45 or GXR45 super core is sold separately
Garrett publishes a maximum turbocharger speed for each core, from 100,000 rpm on the G45-1500, GXR45-76, GXR45-80 and GXR45-82 to 120,000 rpm on the G-Series II G45-1610; running above it is at the owner’s risk
Garrett also offers 1.01, 1.15 and 1.44 A/R and divided T4 versions
Garrett does not publish a hardware list for this kit; confirm clamps and gaskets before ordering

Frequently Asked Questions

What engines suit the 1.28 A/R V-band G45 Turbine Housing Kit? Larger ones. The 1.28 A/R G45 Turbine Housing Kit suits engines in the upper half of the 2.0L to 8.0L range Garrett quotes, or high-rpm builds on smaller engines. It flows more than the 1.01 and 1.15 housings, so boost comes in somewhat later.
Is the G45 turbine wheel an improvement over the GTX45R? Garrett states that the G-Series turbine aero on the G45 flows 14 percent more than the GTX45R and that its Inconel wheel, with an 89mm inducer, flows up to 56 lbs per minute. The wheel sits in the super core, and this housing is made to surround it.
Can I start with a G45-1475 and move to a GXR45 later? Yes. Garrett states that GXR45 cores use the same T4 and V-band turbine housings as the G-Series, so this housing stays on the engine when the G45-1475 is replaced by any of the five GXR45 cores. A new calibration is still needed for the new compressor.
Do I need to buy a wastegate? Yes. This free-float housing has no wastegate port, so boost control comes from an external wastegate on the exhaust manifold. With a free-flowing 1.28 A/R housing, size the gate generously so it can hold boost at high exhaust flow. The manifold also needs a flange for it.
What rotation is this housing? Standard rotation. Turn 14 lists the G45 housings as standard rotation, and every core Garrett pairs with this one is standard rotation. Owners building a mirrored twin-turbo layout should check reverse-rotation options with us before ordering, because standard and reverse parts do not mix.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
