Who should buy the 1.28 A/R G42 Turbine Housing Kit?

Builders after peak power on larger engines. The 1.28 A/R G42 Turbine Housing Kit flows the most of the three G42 sizes, so it suits displacement toward 7.0L or high-rpm engines running the larger-compressor cores. The trade is boost onset later than the 1.01 and 1.15.

Which G42 cores have the largest compressors?

The G42-1450 and G-Series II G42-1585 use a 79mm compressor inducer, and the GXR42-72 uses a 72.9mm inducer with a 102mm exducer. Garrett rates them at up to 1450, 1585 and 1450 horsepower respectively, and they make the best use of a large housing.

What does the turbine wheel measure?

Every core Garrett lists for this housing uses a turbine wheel with an 82mm inducer and a 75mm exducer. The housing is machined around that wheel, which is why it interchanges across the G42, G-Series II G42 and GXR42 cores without changes.

Does this housing take a V-band manifold?

No. This version has a divided T4 inlet for twin-scroll manifolds. Garrett sells the 1.28 A/R G42 housing with a V-band inlet as part 757707-0013 for manifolds ending in a single V-band collector. Both share the same A/R, outlet and core list, so the manifold alone decides which one to order.

What speed limits apply?

Garrett publishes 109,000 rpm for the GXR42-68 and GXR42-72, 114,000 rpm for the G42-1450, 118,000 rpm for the G42-1200 Compact and 120,000 rpm for the G-Series II cores and the GXR42-71. Exceeding the limit is at the risk of the owner, so a speed sensor is worth fitting.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

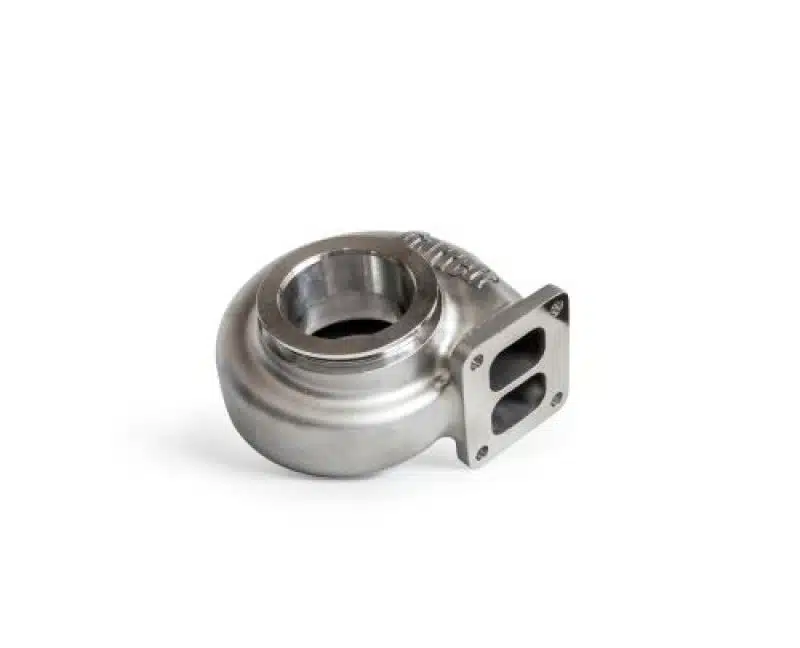

Garrett G42 Turbine Housing Kit, 1.28 A/R T4 Divided Inlet V-Band Outlet

Garrett’s G42 Turbine Housing Kit in 1.28 A/R is the largest twin-scroll G42 housing, with a divided T4 inlet, a V-band outlet and a free-float layout, cast in stainless steel. It suits engines that can feed it: displacement toward 7.0L, or high-rpm builds on the bigger-compressor cores such as the G42-1585, G42-1450 and GXR42-72. Those builds gain from the lower backpressure at the top end. A smaller engine will see boost later than with the 1.01 or 1.15, and a street car that cruises at low rpm is better off with one of those.

Features

Largest A/R in the G42 Turbine Housing Kit range
Divided T4 inlet for twin-scroll manifolds
V-band outlet and an external wastegate layout

Specifications

Garrett part number: 757707-0016
A/R: 1.28
Turbine inlet and outlet: T4 divided and V-band
Divided inlet: Yes
Wastegate: External (free float)
Material: Stainless steel
Matching turbine wheel: 82mm inducer and 75mm exducer

Applications

Garrett pairs this G42 Turbine Housing Kit with:

Garrett G42-1200: 860778-5004S super core, full-size compressor housing
Garrett G42-1200 Compact: 860778-5002S super core
Garrett G42-1325 G-Series II: 938339-5002S super core, 938338-5002S CHRA
Garrett G42-1325C Compact G-Series II: 938339-5001S super core, 938338-5001S CHRA
Garrett G42-1450: 860778-5006S super core
Garrett G42-1585 G-Series II: 938339-5003S super core, 938338-5003S CHRA
Garrett GXR42-68 G-XRace: 934173-5001S super core
Garrett GXR42-71 G-XRace: 952766-5006S super core
Garrett GXR42-72 G-XRace: 934173-5002S super core

Notes

An external wastegate is required, because this housing has no internal wastegate
The G42 or GXR42 super core is sold separately
Garrett publishes a maximum turbocharger speed for each core, from 109,000 rpm on the GXR42-68 and GXR42-72 to 120,000 rpm on the G-Series II cores and the GXR42-71; running above it is at the owner’s risk
Smaller sizes and V-band inlet versions are under G42 turbine housings
Garrett does not publish a hardware list for this kit; confirm clamps and gaskets before ordering

Frequently Asked Questions

Who should buy the 1.28 A/R G42 Turbine Housing Kit? Builders after peak power on larger engines. The 1.28 A/R G42 Turbine Housing Kit flows the most of the three G42 sizes, so it suits displacement toward 7.0L or high-rpm engines running the larger-compressor cores. The trade is boost onset later than the 1.01 and 1.15.
Which G42 cores have the largest compressors? The G42-1450 and G-Series II G42-1585 use a 79mm compressor inducer, and the GXR42-72 uses a 72.9mm inducer with a 102mm exducer. Garrett rates them at up to 1450, 1585 and 1450 horsepower respectively, and they make the best use of a large housing.
What does the turbine wheel measure? Every core Garrett lists for this housing uses a turbine wheel with an 82mm inducer and a 75mm exducer. The housing is machined around that wheel, which is why it interchanges across the G42, G-Series II G42 and GXR42 cores without changes.
Does this housing take a V-band manifold? No. This version has a divided T4 inlet for twin-scroll manifolds. Garrett sells the 1.28 A/R G42 housing with a V-band inlet as part 757707-0013 for manifolds ending in a single V-band collector. Both share the same A/R, outlet and core list, so the manifold alone decides which one to order.
What speed limits apply? Garrett publishes 109,000 rpm for the GXR42-68 and GXR42-72, 114,000 rpm for the G42-1450, 118,000 rpm for the G42-1200 Compact and 120,000 rpm for the G-Series II cores and the GXR42-71. Exceeding the limit is at the risk of the owner, so a speed sensor is worth fitting.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
