Is the 1.15 A/R V-band G42 Turbine Housing Kit a good default?

For most single-scroll builds, yes. The 1.15 A/R G42 Turbine Housing Kit balances boost onset against top-end flow, so it suits mid-size engines and smaller engines at high boost. Pick the 1.01 for faster response or the 1.28 for maximum flow at high rpm.

Can I upgrade my G42-1200 to a G-Series II core with this housing?

Yes. Garrett states that G-Series II offers a direct upgrade path for first-generation owners with only a CHRA swap, because it uses the Gen I compressor and turbine housings. A calibration is needed to use the extra flow of the new core.

Which GXR42 cores fit this housing?

Garrett lists three: the GXR42-68, part 934173-5001S, the GXR42-72, part 934173-5002S, and the GXR42-71, part 952766-5006S. Garrett states that turbine housings interchange between similar frame sizes such as G42 and GXR42, so a G42 owner moving to one of these cores keeps this housing.

Is the housing rated for high exhaust temperatures?

Yes, within limits. The G42 housings are stainless steel, and on the G-Series II G42 pages Garrett quotes a rating of up to 1050C, equal to 1922F, for those housings. That is a material limit, so the calibration should still hold exhaust temperature below it to protect the turbine wheel.

What does this kit not include?

It does not include the super core, the compressor housing or a wastegate. Garrett also publishes no hardware list for the kit, so clamps and gaskets should be confirmed before ordering. The turbine wheel sits in the super core, which is sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

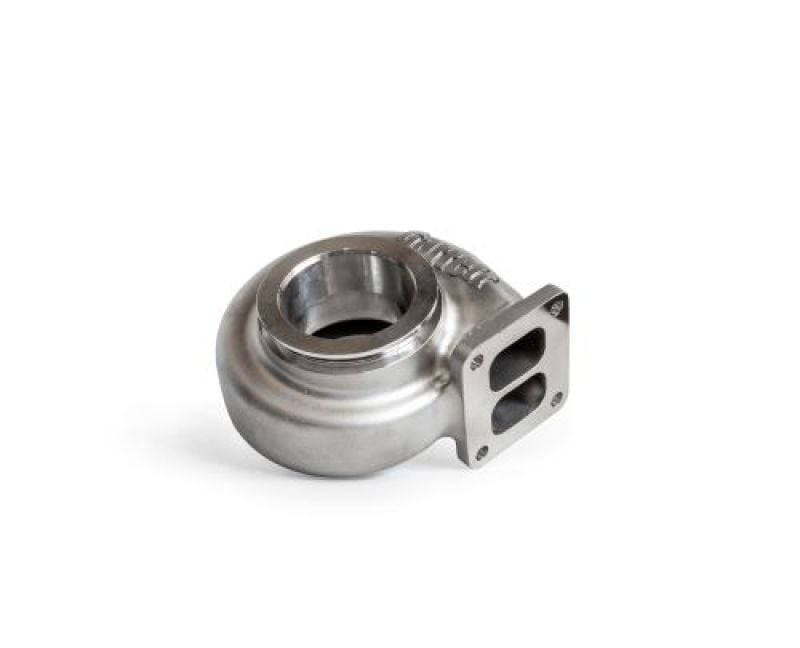

Garrett G42 Turbine Housing Kit, 1.15 A/R V-Band Inlet and Outlet

Garrett’s G42 Turbine Housing Kit in 1.15 A/R with V-band connections is the mid-size single-scroll housing for the G42 frame, cast in stainless steel and built for external wastegate control. It completes any of the nine G42, G-Series II and G-XRace cores Garrett lists for it. On a single-entry manifold this is where most engines between roughly 4.0L and 6.0L should begin, or a smaller engine running high boost. It is a step slower to spool than the 1.01 A/R, and it does not fit a divided T4 twin-scroll manifold.

Features

Clamped V-band inlet and outlet
Free-float housing for an external wastegate
1.15 A/R, the middle size in the V-band G42 Turbine Housing Kit range

Specifications

Garrett part number: 757707-0012
A/R: 1.15
Turbine inlet and outlet: V-band and V-band
Divided inlet: No
Wastegate: External (free float)
Material: Stainless steel
Matching turbine wheel: 82mm inducer and 75mm exducer

Applications

This G42 Turbine Housing Kit fits the following Garrett super cores:

Garrett G42-1200: 860778-5004S super core, full-size compressor housing
Garrett G42-1200 Compact: 860778-5002S super core
Garrett G42-1325 G-Series II: 938339-5002S super core, 938338-5002S CHRA
Garrett G42-1325C Compact G-Series II: 938339-5001S super core, 938338-5001S CHRA
Garrett G42-1450: 860778-5006S super core
Garrett G42-1585 G-Series II: 938339-5003S super core, 938338-5003S CHRA
Garrett GXR42-68 G-XRace: 934173-5001S super core
Garrett GXR42-71 G-XRace: 952766-5006S super core
Garrett GXR42-72 G-XRace: 934173-5002S super core

Notes

An external wastegate is required, because this housing has no internal wastegate
The G42 or GXR42 super core is sold separately
Garrett publishes a maximum turbocharger speed for each core, from 109,000 rpm on the GXR42-68 and GXR42-72 to 120,000 rpm on the G-Series II cores and the GXR42-71; running above it is at the owner’s risk
Other A/R sizes and divided T4 versions are under G42 turbine housings
Garrett does not publish a hardware list for this kit; confirm clamps and gaskets before ordering

Frequently Asked Questions

Is the 1.15 A/R V-band G42 Turbine Housing Kit a good default? For most single-scroll builds, yes. The 1.15 A/R G42 Turbine Housing Kit balances boost onset against top-end flow, so it suits mid-size engines and smaller engines at high boost. Pick the 1.01 for faster response or the 1.28 for maximum flow at high rpm.
Can I upgrade my G42-1200 to a G-Series II core with this housing? Yes. Garrett states that G-Series II offers a direct upgrade path for first-generation owners with only a CHRA swap, because it uses the Gen I compressor and turbine housings. A calibration is needed to use the extra flow of the new core.
Which GXR42 cores fit this housing? Garrett lists three: the GXR42-68, part 934173-5001S, the GXR42-72, part 934173-5002S, and the GXR42-71, part 952766-5006S. Garrett states that turbine housings interchange between similar frame sizes such as G42 and GXR42, so a G42 owner moving to one of these cores keeps this housing.
Is the housing rated for high exhaust temperatures? Yes, within limits. The G42 housings are stainless steel, and on the G-Series II G42 pages Garrett quotes a rating of up to 1050C, equal to 1922F, for those housings. That is a material limit, so the calibration should still hold exhaust temperature below it to protect the turbine wheel.
What does this kit not include? It does not include the super core, the compressor housing or a wastegate. Garrett also publishes no hardware list for the kit, so clamps and gaskets should be confirmed before ordering. The turbine wheel sits in the super core, which is sold separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
