Is the 1.15 A/R G42 Turbine Housing Kit right for a 5.0L engine?

It usually is. The 1.15 A/R G42 Turbine Housing Kit sits between the 1.01 and 1.28 sizes, which suits mid-size engines on a twin-scroll manifold that want strong midrange without choking the top end. Check the choice against the Garrett turbine flow chart for the chosen core.

What horsepower do the G42 cores support?

Garrett ratings run from 475 horsepower up to 1200 for the G42-1200, 1325 for the G42-1325, 1400 for the GXR42-68, 1450 for the G42-1450 and GXR42-72, and 1585 for the G42-1585. Garrett derives these from compressor choke flow as potential flywheel horsepower.

Will a G-Series II G42 core fit this housing?

Yes. Garrett states that G-Series II uses the first-generation compressor and turbine housings, and lists this housing for the G42-1325, G42-1325C and G42-1585. An owner of a G42-1200 or G42-1450 can fit a G-Series II CHRA and keep the housing.

Is the housing stainless steel?

Yes. Garrett lists stainless steel turbine housings for the G42 in T4 and V-band connections, and rates the housings used on its G-Series II G42 cores up to 1050C, or 1922F. That material holds up to sustained heat better than cast iron.

Is a super core included with this kit?

No. The kit is the turbine housing only. The center section, rotating assembly and compressor housing come as a separate G42, G-Series II or GXR42 super core, so the builder chooses the compressor and the turbine housing size independently and can change either one later.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

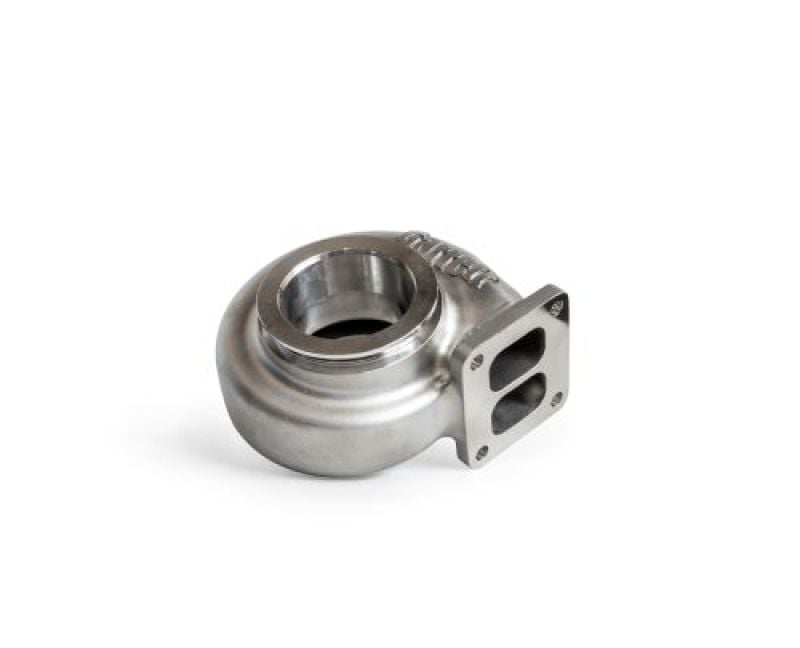

Garrett G42 Turbine Housing Kit, 1.15 A/R T4 Divided Inlet V-Band Outlet

Garrett’s G42 Turbine Housing Kit at 1.15 A/R is the middle size in the G42 twin-scroll range: a stainless steel housing with a divided T4 inlet, a V-band outlet and an external wastegate layout. It fits the nine G42, G-Series II G42 and GXR42 cores Garrett lists, whose ratings run from 475 to 1585 horsepower. For most twin-scroll engines in the 4.0L to 6.0L bracket, or a smaller engine at high boost, this is the sensible place to start. It gives up some response to the 1.01, and an internally gated setup cannot use it at all.

Features

T4 twin-scroll inlet and V-band outlet in stainless steel
No internal wastegate; an external gate controls boost
Middle of three A/R sizes in the G42 Turbine Housing Kit range

Specifications

Garrett part number: 757707-0015
A/R: 1.15
Turbine inlet and outlet: T4 divided and V-band
Divided inlet: Yes
Wastegate: External (free float)
Material: Stainless steel
Matching turbine wheel: 82mm inducer and 75mm exducer

Applications

This G42 Turbine Housing Kit fits these Garrett cores:

Garrett G42-1200: 860778-5004S super core, full-size compressor housing
Garrett G42-1200 Compact: 860778-5002S super core
Garrett G42-1325 G-Series II: 938339-5002S super core, 938338-5002S CHRA
Garrett G42-1325C Compact G-Series II: 938339-5001S super core, 938338-5001S CHRA
Garrett G42-1450: 860778-5006S super core
Garrett G42-1585 G-Series II: 938339-5003S super core, 938338-5003S CHRA
Garrett GXR42-68 G-XRace: 934173-5001S super core
Garrett GXR42-71 G-XRace: 952766-5006S super core
Garrett GXR42-72 G-XRace: 934173-5002S super core

Notes

An external wastegate is required, because this housing has no internal wastegate
The G42 or GXR42 super core is sold separately
Garrett publishes a maximum turbocharger speed for each core, from 109,000 rpm on the GXR42-68 and GXR42-72 to 120,000 rpm on the G-Series II cores and the GXR42-71; running above it is at the owner’s risk
Other A/R sizes and V-band inlet versions are under G42 turbine housings
Garrett does not publish a hardware list for this kit; confirm clamps and gaskets before ordering

Frequently Asked Questions

Is the 1.15 A/R G42 Turbine Housing Kit right for a 5.0L engine? It usually is. The 1.15 A/R G42 Turbine Housing Kit sits between the 1.01 and 1.28 sizes, which suits mid-size engines on a twin-scroll manifold that want strong midrange without choking the top end. Check the choice against the Garrett turbine flow chart for the chosen core.
What horsepower do the G42 cores support? Garrett ratings run from 475 horsepower up to 1200 for the G42-1200, 1325 for the G42-1325, 1400 for the GXR42-68, 1450 for the G42-1450 and GXR42-72, and 1585 for the G42-1585. Garrett derives these from compressor choke flow as potential flywheel horsepower.
Will a G-Series II G42 core fit this housing? Yes. Garrett states that G-Series II uses the first-generation compressor and turbine housings, and lists this housing for the G42-1325, G42-1325C and G42-1585. An owner of a G42-1200 or G42-1450 can fit a G-Series II CHRA and keep the housing.
Is the housing stainless steel? Yes. Garrett lists stainless steel turbine housings for the G42 in T4 and V-band connections, and rates the housings used on its G-Series II G42 cores up to 1050C, or 1922F. That material holds up to sustained heat better than cast iron.
Is a super core included with this kit? No. The kit is the turbine housing only. The center section, rotating assembly and compressor housing come as a separate G42, G-Series II or GXR42 super core, so the builder chooses the compressor and the turbine housing size independently and can change either one later.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
