How much horsepower is the G42-1585 G-Series II Super Core rated for?

Garrett rates the G42-1585 G-Series II Super Core at 475 to 1585 horsepower on 2.0L to 7.0L engines. The figure is based on the choke flow of the compressor map and describes potential flywheel horsepower, so reaching the top of the range depends on fuel, boost, the turbine housing and the calibration.

Can I fit it in place of a G42-1450?

Yes. Garrett describes G-Series II as a direct upgrade for Gen I owners, using the existing compressor and turbine housings. A G42-1450 owner can keep the G42 turbine kit, swap the core and then recalibrate, since Garrett states the added flow needs a calibration before it turns into power.

Which G42 turbine housing A/R should I run?

Garrett offers 1.01, 1.15 and 1.28 A/R. The 1.01 favors earlier boost on smaller displacement, the 1.28 favors flow at high rpm on large engines, and the 1.15 sits between them. Each comes with a V-band or T4 divided inlet, and every one of them needs an external wastegate.

Is this core overkill for my build?

It can be. This is the largest compressor Garrett offers on the G42 frame, so on an engine targeting well under 1000 horsepower the 73mm G42-1325 will likely be easier to spool. It makes the most sense where the power goal sits in the upper half of its rated range.

What is the speed limit of the G42-1585?

Garrett lists a maximum allowable turbocharger speed of 120,000 rpm. Operation above that is at the risk of the owner and may cause damage or premature failure. A speed sensor fitted to the compressor housing reports shaft speed in real time, and Garrett sells the sensor kit separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

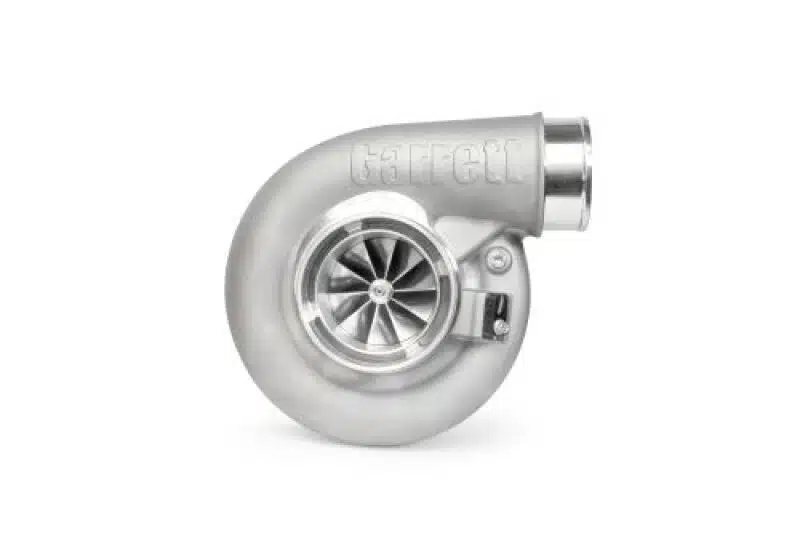

Garrett G42-1585 G-Series II Super Core, 79mm Compressor

Garrett’s G42-1585 G-Series II Super Core is the top of the G42 range, a 79mm by 98mm compressor wheel with second-generation aerodynamics on an Inconel G-Series turbine, rated by Garrett at up to 1585 horsepower on 2.0L to 7.0L engines. Against the first-generation G42-1450 with the same wheel dimensions, Garrett quotes up to 10 percent more compressor flow at peak pressure ratio and peak speed. It belongs on an engine built to use that capacity; a build stopping near 1000 horsepower is better matched to a 73mm G42.

Construction

The center housing and backplate are one piece, which Garrett says improves durability by reducing failure points. A shorter bearing cartridge makes room for twin piston rings on each side of the shaft wheel assembly, and Garrett quotes the Inconel turbine wheel at 15 to 20 percent more flow than GTX with peak efficiency of up to 74 percent.

Features

Second-generation compressor aerodynamics with increased efficiency at high flow rates
Takes G42 Gen I compressor and turbine housings, so a G42-1450 owner can upgrade with a CHRA swap
Water fittings included

Specifications

Compressor inducer and exducer: 79mm and 98mm
Compressor trim: 65
Compressor housing A/R: 0.85
Turbine inducer and exducer: 82mm and 75mm
Turbine trim: 84
Maximum turbocharger speed: 120,000 rpm

What’s Included

G42-1585 G-Series II super core with compressor housing fitted
Water fittings

Applications

The G42-1585 G-Series II Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 7.0L
Power range: 475 to 1585 horsepower (Garrett rating)
Garrett turbine kits: G42 1.01, 1.15 and 1.28 A/R free float, each with a V-band inlet or a T4 divided inlet and a V-band outlet

Notes

The turbine housing is not included; Garrett sells the G42 turbine housing kits separately
All six G42 turbine kits are free float, so an external wastegate is required
The Garrett speed sensor kit is sold separately
Garrett states that running above 120,000 rpm is at the owner’s risk and can result in damage and premature failure
Garrett states a calibration is needed to use the increased compressor flow
Also sold as the G42-1585 CHRA for owners keeping a Gen I compressor housing

Frequently Asked Questions

How much horsepower is the G42-1585 G-Series II Super Core rated for? Garrett rates the G42-1585 G-Series II Super Core at 475 to 1585 horsepower on 2.0L to 7.0L engines. The figure is based on the choke flow of the compressor map and describes potential flywheel horsepower, so reaching the top of the range depends on fuel, boost, the turbine housing and the calibration.
Can I fit it in place of a G42-1450? Yes. Garrett describes G-Series II as a direct upgrade for Gen I owners, using the existing compressor and turbine housings. A G42-1450 owner can keep the G42 turbine kit, swap the core and then recalibrate, since Garrett states the added flow needs a calibration before it turns into power.
Which G42 turbine housing A/R should I run? Garrett offers 1.01, 1.15 and 1.28 A/R. The 1.01 favors earlier boost on smaller displacement, the 1.28 favors flow at high rpm on large engines, and the 1.15 sits between them. Each comes with a V-band or T4 divided inlet, and every one of them needs an external wastegate.
Is this core overkill for my build? It can be. This is the largest compressor Garrett offers on the G42 frame, so on an engine targeting well under 1000 horsepower the 73mm G42-1325 will likely be easier to spool. It makes the most sense where the power goal sits in the upper half of its rated range.
What is the speed limit of the G42-1585? Garrett lists a maximum allowable turbocharger speed of 120,000 rpm. Operation above that is at the risk of the owner and may cause damage or premature failure. A speed sensor fitted to the compressor housing reports shaft speed in real time, and Garrett sells the sensor kit separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
