What does the C mean in G42-1325C G-Series II Super Core?

It marks the compact compressor housing. Garrett offers the G42-1325 with either housing, and the compact one is aimed at installations where space around the compressor is limited. The compressor wheel, turbine wheel and the rating of up to 1325 horsepower are shared, so performance does not change between the two.

Will my G42-1200 Compact turbine housing bolt to this core?

Yes. Garrett states that G-Series II reuses the Gen I compressor and turbine housings, so the G42 turbine kit already on a G42-1200 Compact carries over. The upgrade is a center section swap followed by a calibration that lets the engine use the extra compressor flow.

How much horsepower is the G42-1325C rated for?

Up to 1325 horsepower on 2.0L to 7.0L engines, according to Garrett. That rating comes from the choke flow on the compressor map and stands for potential flywheel horsepower. Fuel delivery, intercooling, boost and the calibration decide how close a given engine gets to it.

What else do I need to install it?

A G42 turbine kit, an external wastegate, oil feed and drain lines, and water lines for the supplied fittings. The G42-1325C G-Series II Super Core also needs a calibration, since Garrett states the extra compressor flow only becomes power once the engine is tuned for it.

Should I add a speed sensor?

Garrett advises it. The maximum allowable speed for this core is 120,000 rpm, and running beyond it is at the risk of the owner. The compressor housing accepts a speed sensor that reads shaft speed directly, which gives the tuner a hard number for keeping the turbocharger inside its limits.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

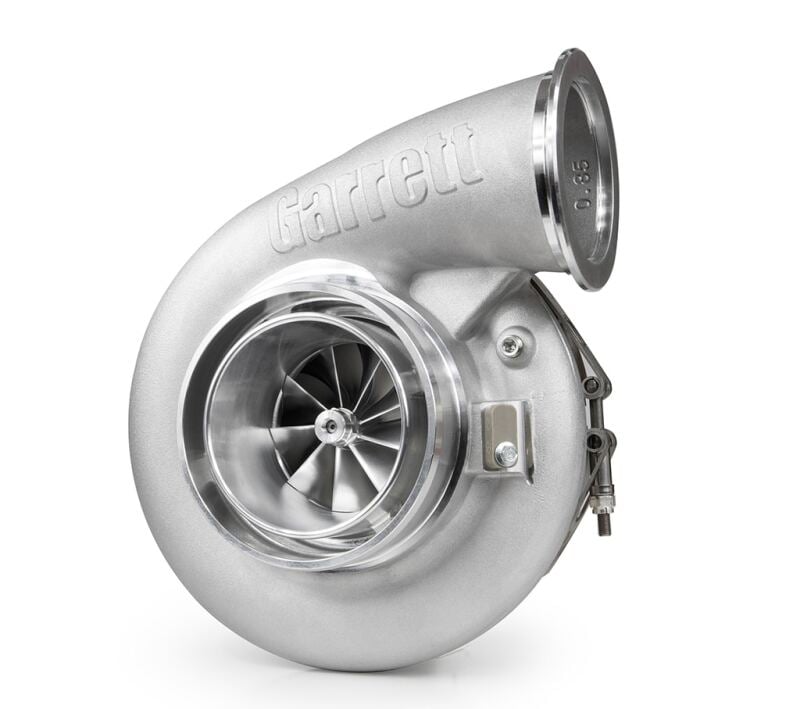

Garrett G42-1325C G-Series II Super Core, Compact Compressor Housing

Garrett’s G42-1325C G-Series II Super Core is the compact-housing version of the G42-1325, built for engine bays where a full-size compressor housing will not clear. Underneath is the same second-generation 73mm compressor stage, which Garrett credits with up to 10 percent more flow than Gen I at peak pressure ratio and peak speed, and the same rating of up to 1325 horsepower on 2.0L to 7.0L. It is the natural upgrade for an owner already running a G42-1200 Compact; a builder with room to spare gains no power from it over the standard G42-1325.

Center Housing and Turbine

Garrett moved G-Series II to a one-piece center housing and backplate, which reduces failure points, and shortened the bearing cartridge to fit twin piston rings at both ends of the shaft. The turbine wheel is Inconel with new G-Series aerodynamics, quoted by Garrett at 15 to 20 percent more flow than GTX and up to 74 percent peak efficiency.

Features

Compact compressor housing for tight packaging around the inlet and outlet
Direct CHRA-level upgrade path from a first-generation G42-1200 Compact
Increased efficiency at high flow rates, per Garrett

Specifications

Compressor inducer and exducer: 73mm and 91mm
Compressor trim: 65
Compressor housing A/R: 0.90
Turbine inducer and exducer: 82mm and 75mm
Turbine trim: 84
Maximum turbocharger speed: 120,000 rpm

What’s Included

G42-1325C G-Series II super core with compact compressor housing fitted
Water fittings

Applications

The G42-1325C G-Series II Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 7.0L
Power range: Up to 1325 horsepower (Garrett rating)
Garrett turbine kits: G42 1.01, 1.15 and 1.28 A/R free float, each with a V-band inlet or a T4 divided inlet and a V-band outlet

Notes

The turbine housing is not included; Garrett sells the G42 turbine housing kits separately
All six G42 turbine kits are free float, so an external wastegate is required
The Garrett speed sensor kit is sold separately
Garrett states that running above 120,000 rpm is at the owner’s risk and can result in damage and premature failure
The engine must be recalibrated before the added compressor flow becomes extra power
The matching G42-1325C CHRA is sold for owners who keep their compact compressor housing

Frequently Asked Questions

What does the C mean in G42-1325C G-Series II Super Core? It marks the compact compressor housing. Garrett offers the G42-1325 with either housing, and the compact one is aimed at installations where space around the compressor is limited. The compressor wheel, turbine wheel and the rating of up to 1325 horsepower are shared, so performance does not change between the two.
Will my G42-1200 Compact turbine housing bolt to this core? Yes. Garrett states that G-Series II reuses the Gen I compressor and turbine housings, so the G42 turbine kit already on a G42-1200 Compact carries over. The upgrade is a center section swap followed by a calibration that lets the engine use the extra compressor flow.
How much horsepower is the G42-1325C rated for? Up to 1325 horsepower on 2.0L to 7.0L engines, according to Garrett. That rating comes from the choke flow on the compressor map and stands for potential flywheel horsepower. Fuel delivery, intercooling, boost and the calibration decide how close a given engine gets to it.
What else do I need to install it? A G42 turbine kit, an external wastegate, oil feed and drain lines, and water lines for the supplied fittings. The G42-1325C G-Series II Super Core also needs a calibration, since Garrett states the extra compressor flow only becomes power once the engine is tuned for it.
Should I add a speed sensor? Garrett advises it. The maximum allowable speed for this core is 120,000 rpm, and running beyond it is at the risk of the owner. The compressor housing accepts a speed sensor that reads shaft speed directly, which gives the tuner a hard number for keeping the turbocharger inside its limits.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
